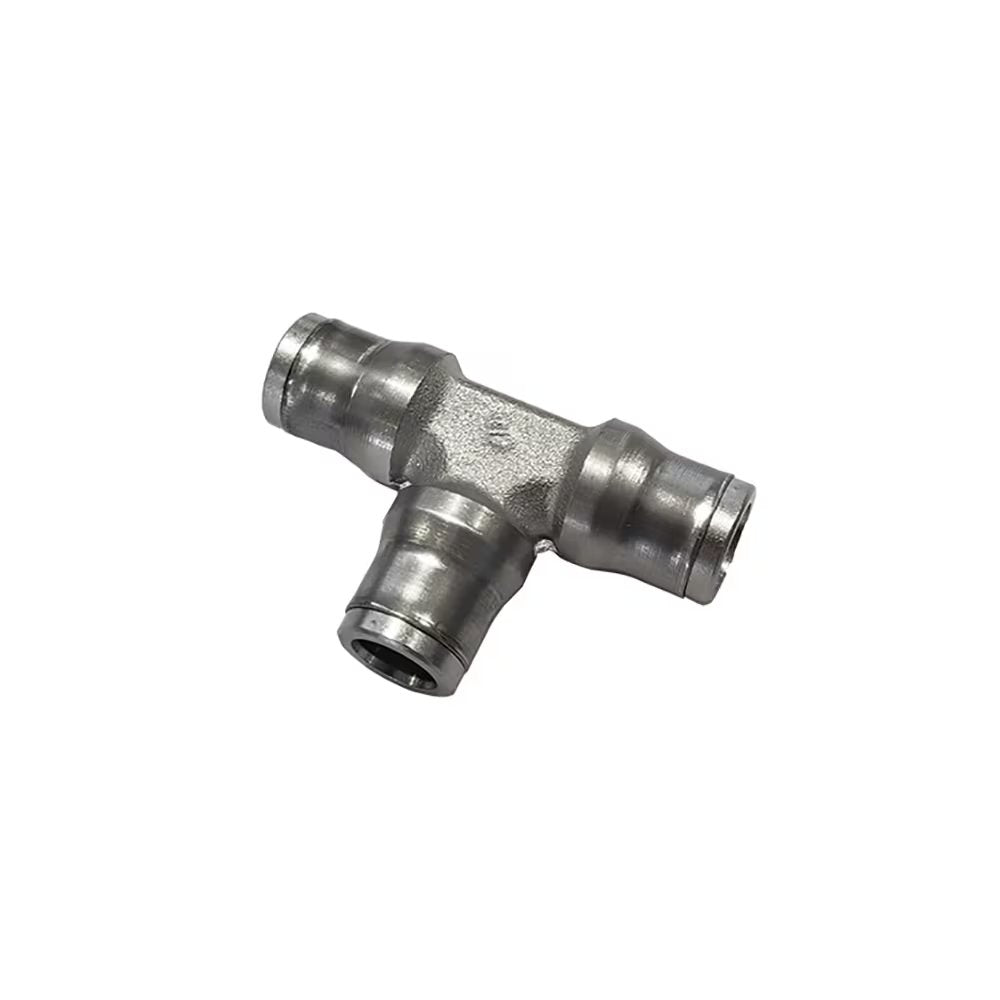

3604 06 00 by Parker | Legris Tube-to-Tube Fitting | 6 mm Tube Size | 43 mm Length | Tee | Nickel-Plated Brass | Pack of 10

3604 06 00 by Parker | Legris Tube-to-Tube Fitting | 6 mm Tube Size | 43 mm Length | Tee | Nickel-Plated Brass | Pack of 10

Sale price$128.99

by Parker Hannifin
LF 3000® Push-In Fittings / Tube-to-Tube Fittings :3604 Equal Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $121.25
20–59 $109.64
60+ $96.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3604 Series
Shape:

Tee

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD G H L/2 Kg
3604 04 00 4 mm 10 mm 23 mm 18 mm .014 Kg
3604 06 00 6 mm 12 mm 28 mm 21.5 mm .023 Kg
3604 08 00 8 mm 15 mm 31 mm 23.5 mm .032 Kg
3604 10 00 10 mm 17.5 mm 37.5 mm 29 mm .048 Kg
3604 12 00 12 mm 19.5 mm 40.5 mm 31 mm .063 Kg
3604 14 00 14 mm 21.5 mm 45 mm 34 mm .078 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
