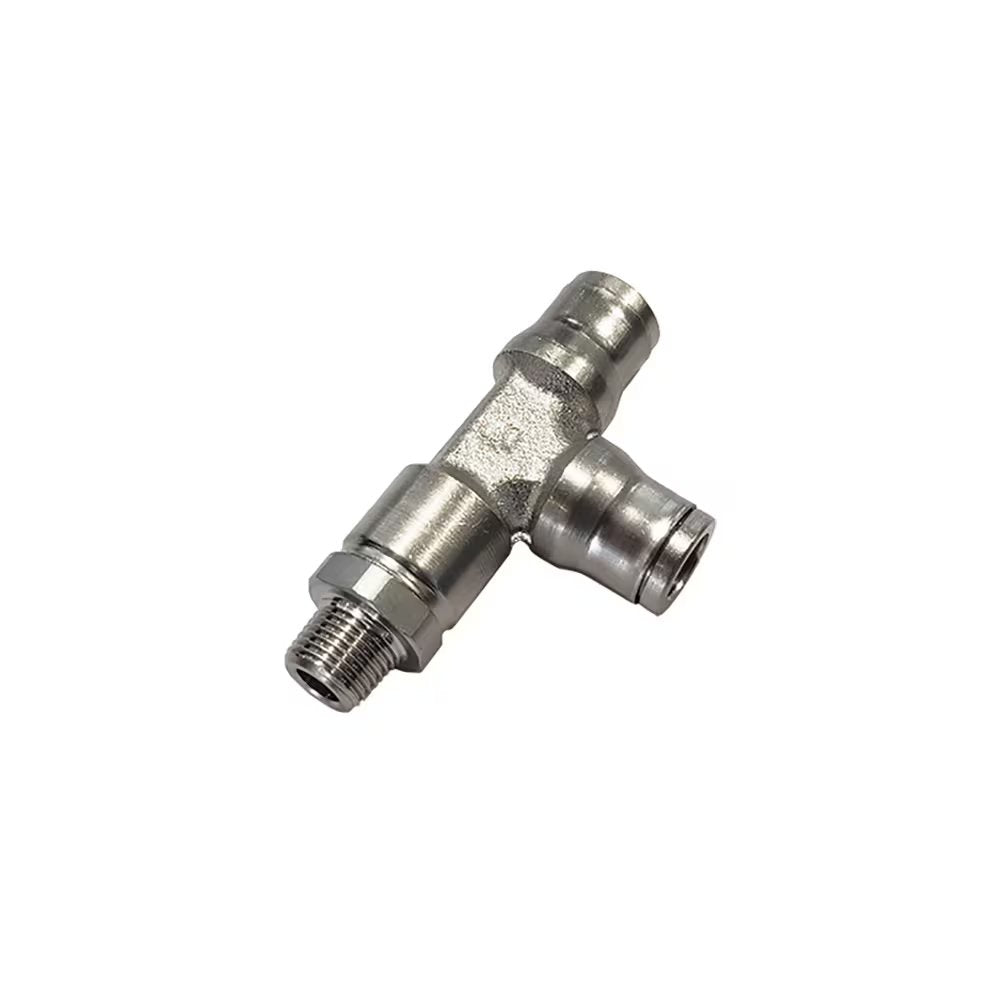

3603 60 14 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 1/4" Male NPT Thread | 18 mm Hex | 2.77" Length | Tee | Nickel-Plated Brass

3603 60 14 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 1/4" Male NPT Thread | 18 mm Hex | 2.77" Length | Tee | Nickel-Plated Brass

Sale price$51.60

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3603 - male run tee fractional inch tube to tube to NPT
Buy More, Save More!
Quantity Price Each
10–39 $48.50
40–79 $43.86
80+ $38.70
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF3600®
Series:
  • 3603 Series
Shape:

Tee
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD NPT (C) E F G H1 H2 J K L Oz
3603 04 11* 5/32" 1/8" .30" 11 mm .39" .71" .77" .28" .47" .91" .71 Oz
3603 60 14* 3/8" 1/4" .43" 18 mm .67" 1.14" 1.20" .47" .77" 1.48" 2.89 Oz
3603 60 18* 3/8" 3/8" .45" 18 mm .67" 1.14" 1.28" .47" .77" 1.48" 2.82 Oz
