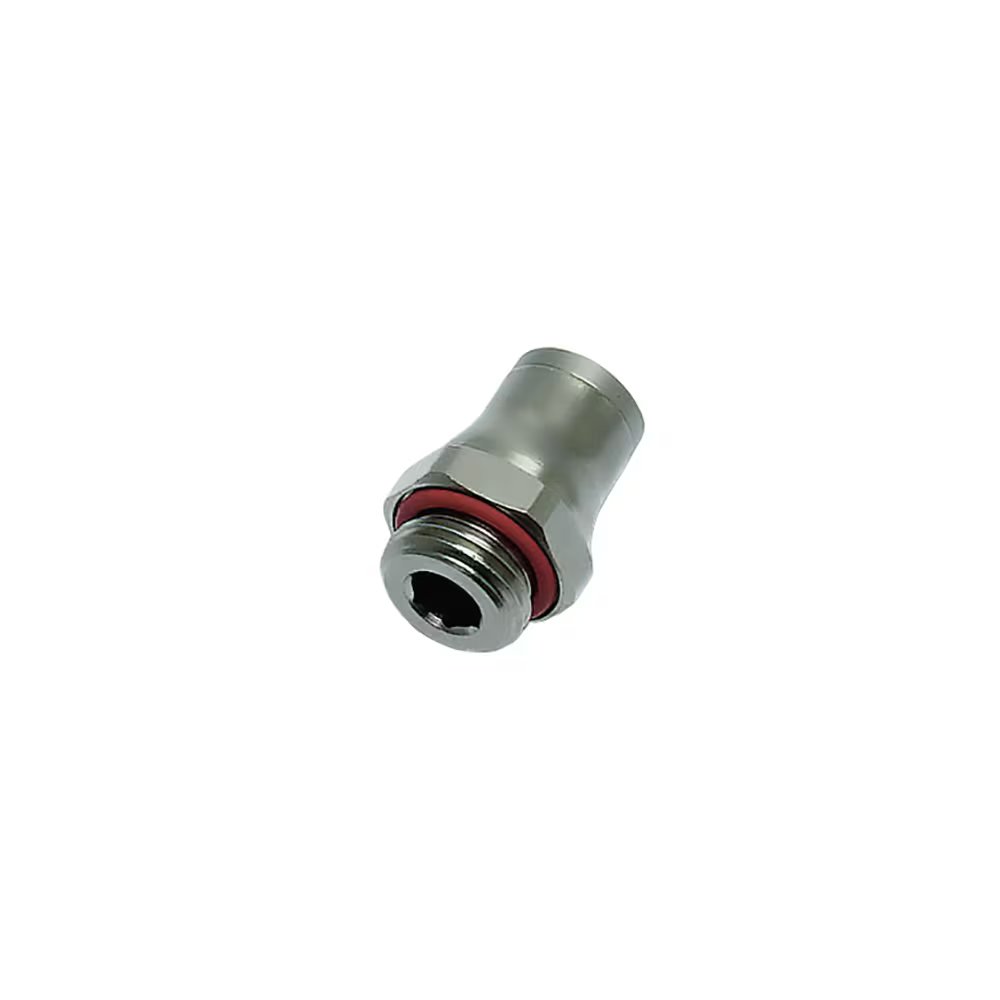

3601 04 13 by Parker | Legris Stud Fitting | 4 mm Tube Size x 1/4" Male BSPP Thread | 16 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

3601 04 13 by Parker | Legris Stud Fitting | 4 mm Tube Size x 1/4" Male BSPP Thread | 16 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Sale price$76.97

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3601 Stud Fitting, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $72.35
20–59 $65.42
60+ $57.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3601 Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Suitable Fluids: Compressed air, grease, lubricant, water
  • Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Wide range of working temperatures: up to +150°C
  • Wide range of working pressures: from vacuum up to 30 bar
  • Materials conform to FDA standards
  • Extended chemical compatibility
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Adapter: FDA Chemical nickel-plated brass
  • Collet: FDA Chemical nickel-plated brass
  • Washer: Stainless Steel 316L
  • O-Ring: Fluoroelastomer (FKM)
Part Number ØD C E F1 F2 H Kg
3601 04 19 4 mm M5x0.8 3.5 mm 10 mm 2.5 mm 15.5 mm .006 Kg
3601 04 52 4 mm M6x1 4.5 mm 10 mm 3 mm 16 mm .006 Kg
3601 04 56 4 mm M8x1 5 mm 11 mm 3 mm 14.5 mm .007 Kg
3601 04 10 4 mm 1/8" 4.5 mm 13 mm 3 mm 14.5 mm .009 Kg
3601 04 13 4 mm 1/4" 5.5 mm 16 mm 3 mm 14.5 mm .015 Kg
3601 06 19 6 mm M5x0.8 3.5 mm 13 mm 2.5 mm 19 mm .010 Kg
3601 06 60 6 mm M10x1 5.5 mm 13 mm 4 mm 17.5 mm .011 Kg
3601 06 10 6 mm 1/8" 4.5 mm 13 mm 4 mm 17.5 mm .011 Kg
3601 06 13 6 mm 1/4" 5.5 mm 16 mm 4 mm 17 mm .015 Kg
3601 08 10 8 mm 1/8" 4.5 mm 16 mm 5.5 mm 21 mm .014 Kg
3601 08 13 8 mm 1/4" 5.5 mm 16 mm 6 mm 18 mm .016 Kg
3601 08 17 8 mm 3/8" 5.5 mm 20 mm 6 mm 19 mm .028 Kg
3601 10 13 10 mm 1/4" 5.5 mm 18 mm 7 mm 25 mm .025 Kg
3601 10 17 10 mm 3/8" 5.5 mm 20 mm 8 mm 22.5 mm .028 Kg
3601 10 21 10 mm 1/2" 7 mm 24 mm 8 mm 22.5 mm .043 Kg
3601 12 13 12 mm 1/4" 5.5 mm 20 mm 7 mm 26.5 mm .030 Kg
3601 12 17 12 mm 3/8" 5.5 mm 20 mm 9 mm 26 mm .034 Kg
3601 12 21 12 mm 1/2" 7 mm 24 mm 10 mm 23.5 mm .042 Kg
3601 14 17 14 mm 3/8" 5.5 mm 22 mm 9 mm 28 mm .038 Kg
3601 14 21 14 mm 1/2" 7 mm 24 mm 11 mm 26.5 mm .045 Kg
