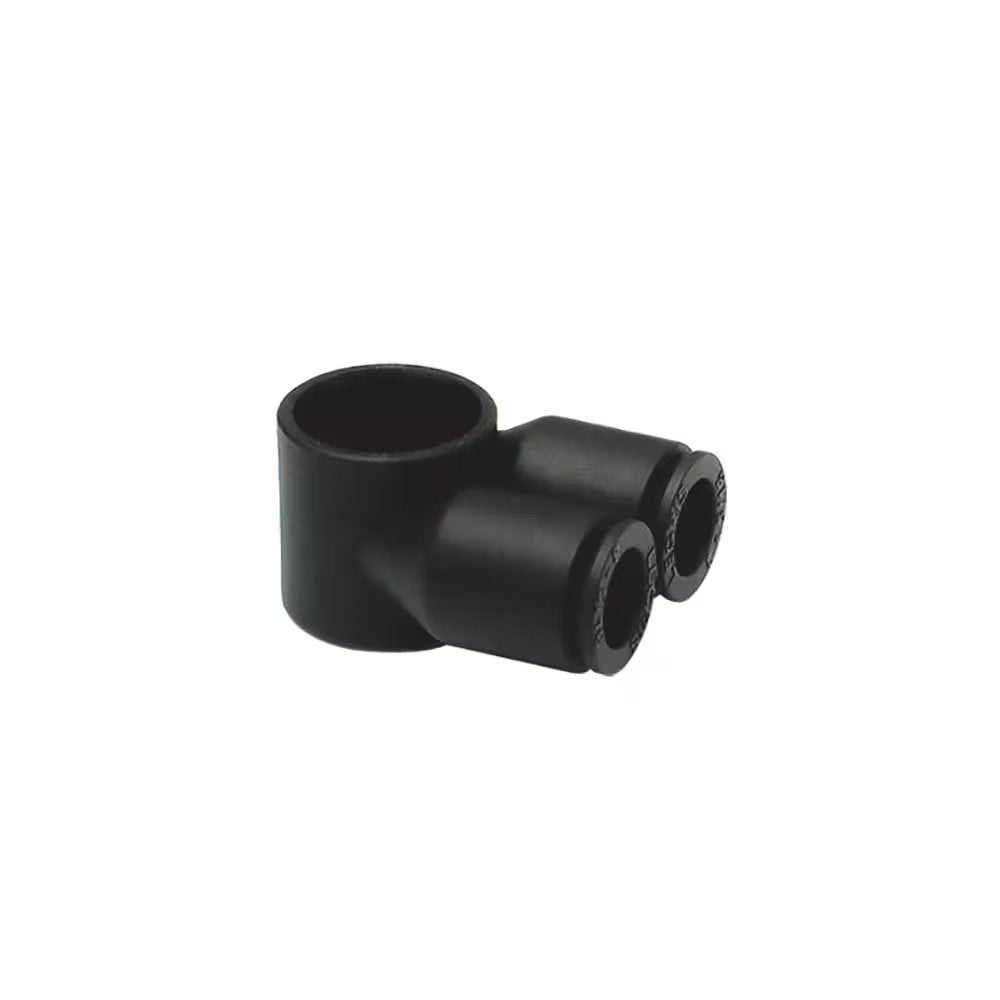

3549 08 17 by Parker | Legris Twin Banjo Body | 8mm Tube Size x 3/8" Male Thread | Twin Banjo | Polymer | Pack of 10

3549 08 17 by Parker | Legris Twin Banjo Body | 8mm Tube Size x 3/8" Male Thread | Twin Banjo | Polymer | Pack of 10

Sale price$96.05

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3549 Twin Banjo Bodies

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $90.29
20–59 $81.64
60+ $72.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3549 Series
Material(s):
  • Polymer
Special Properties:
  • Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C G K L N Kg
3549 04 13 4 mm 1/4" 18.5 mm 28 mm 25 mm 14.5 mm .020 Kg
3549 06 10 6 mm 1/8" 14 mm 22.5 mm 20.5 mm 12 mm .003 Kg
3549 06 13 6 mm 1/4" 18.5 mm 28 mm 25 mm 14.5 mm .015 Kg
3549 06 17 6 mm 3/8" 22.5 mm 33 mm 28.5 mm 17 mm .031 Kg
3549 08 13 8 mm 1/4" 18.5 mm 28 mm 26 mm 14.5 mm .006 Kg
3549 08 17 8 mm 3/8" 22.5 mm 33 mm 29.5 mm 17 mm .020 Kg
