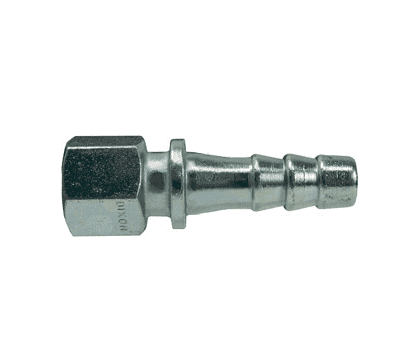

3542 Dixon Valve Steel 3500 Female Nipple - 1/4" Hose ID x 1/4" Female NPT
Dixon

3542 Dixon Valve Steel 3500 Female Nipple - 1/4" Hose ID x 1/4" Female NPT

Sale price$19.35

Dixon Valve & Coupling
Steel 3500 Female Nipple

On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 1/4in Female NPT
Material(s):
  • Zink-Plated Steel
Features:
  • Female Nipples
  • Rated to 600 PSI working pressure at ambient temperature (70 deg. F)
  • For air and water service only
  • The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose. To construct a whip hose, connect one end of a short (3' to 10') air hose to the air tool using a 3500 type steel nipple. Connect the other end of the hose to the air supply using the standard quick-acting coupling. The heattreated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection. The whip hose should remain permanently connected to the tool.
Part Number Hose Size NPT Size Max PSI Material Weight (Lbs)
3542 1/4" 1/4" 600 (40.82 bar) Zinc Plated Steel 0.0800
3545 3/8" 1/4" 600 (40.82 bar) Zinc Plated Steel 0.1100
3546 3/8" 3/8" 600 (40.82 bar) Zinc Plated Steel 0.1250
3550 1/2" 3/8" 600 (40.82 bar) Zinc Plated Steel 0.1800
3552 1/2" 1/2" 600 (40.82 bar) Zinc Plated Steel 0.2250
3554 3/4" 3/4" 600 (40.82 bar) Zinc Plated Steel 0.4900

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
