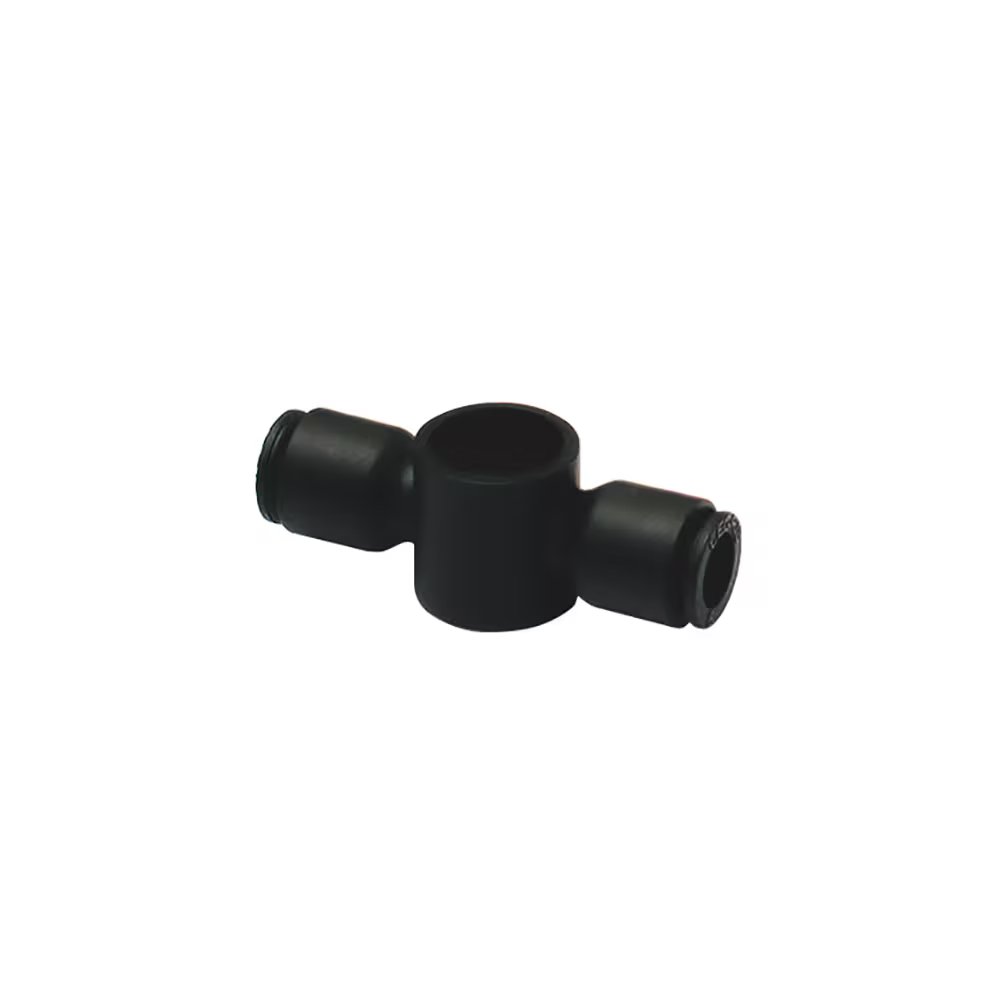

3539 08 13 by Parker | Legris Banjo Fitting Body | 8 mm Tube Size x 1/4" Male Thread | 54 mm Length | Double Banjo | Polymer | Pack of 10

$107.65

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3539 Double Banjo Bodies

Package Quantity: 10 Units

Quantity:

Buy More, Save More!
Quantity	Price Each
5–19	$101.19
20–59	$91.50
60+	$80.74

Discounts applied in cart/checkout.

Product Data:

Series:

3539 Series

Shape:

Banjo

Ends Configuration:

8mm Female Banjo
1/4in Male BSPP

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	G	H	L/2	Kg
3539 06 10	6 mm	1/8"	10.5 mm	14.3 mm	20 mm	.011 Kg
3539 06 13	6 mm	1/4"	13.5 mm	18 mm	26 mm	.015 Kg
3539 08 13	8 mm	1/4"	13.5 mm	18 mm	27 mm	.005 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
