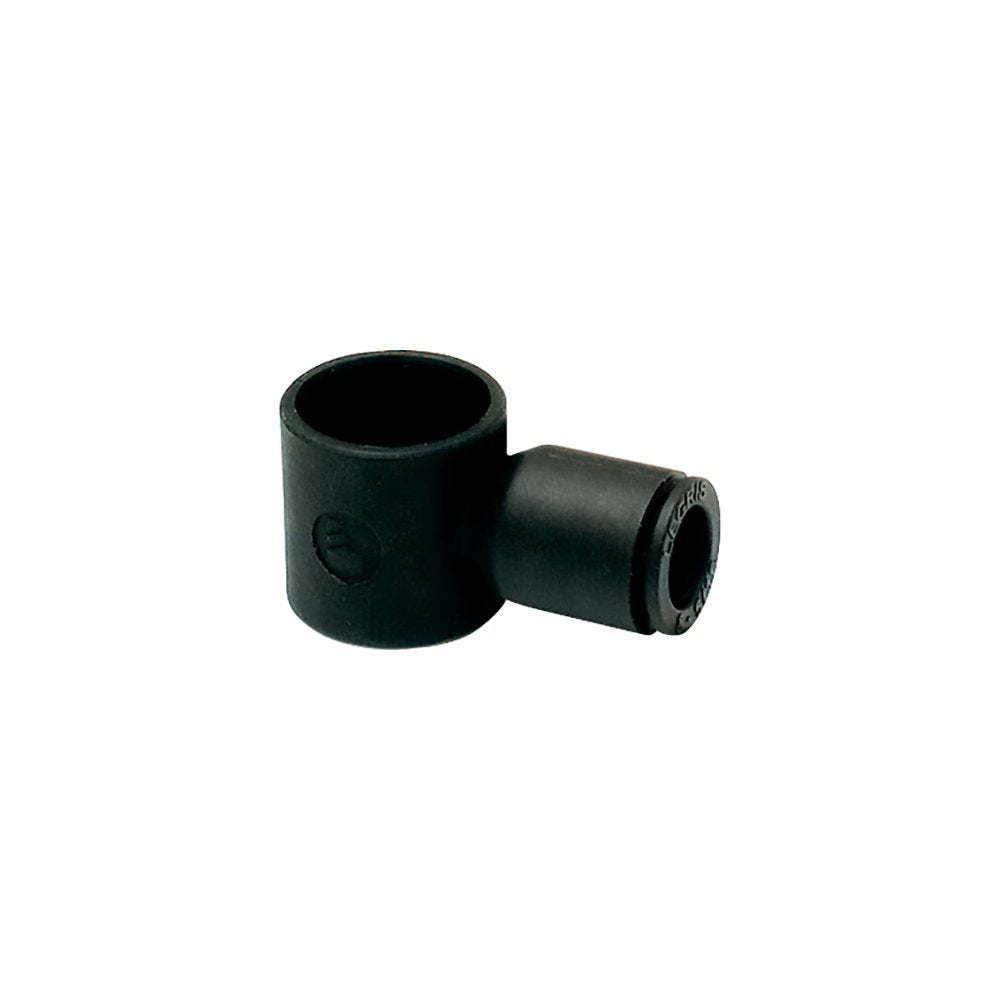

3538 08 10 by Parker | Legris Banjo Fitting Body | 8 mm Tube Size x 1/8" Male Thread | 32 mm Length | Banjo | Polymer | Pack of 10

3538 08 10 by Parker | Legris Banjo Fitting Body | 8 mm Tube Size x 1/8" Male Thread | 32 mm Length | Banjo | Polymer | Pack of 10

Sale price$48.18

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3538 Single Banjo Bodies

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $45.29
40–79 $40.95
80+ $36.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3538 Series
Shape:

Banjo

Ends Configuration:
  • 8mm Female Banjo
  • 1/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C G H L L1 Kg
3538 04 19 4 mm M5x0.8 8.5 mm 13 mm 16 mm 5 mm .001 Kg
3538 04 10 4 mm 1/8" 10.5 mm 14.5 mm 18.5 mm 7 mm .002 Kg
3538 06 19 6 mm M5x0.8 11 mm 13 mm 18.5 mm 5 mm .002 Kg
3538 06 10 6 mm 1/8" 10.5 mm 14.5 mm 20 mm 7 mm .002 Kg
3538 06 13 6 mm 1/4" 13.5 mm 18 mm 22 mm 9.5 mm .003 Kg
3538 08 10 8 mm 1/8" 13.5 mm 14.5 mm 25 mm 7 mm .003 Kg
3538 08 13 8 mm 1/4" 13.5 mm 18 mm 27 mm 9.5 mm .004 Kg
3538 08 17 8 mm 3/8" 13.5 mm 21.5 mm 29 mm 11.5 mm .005 Kg
3538 10 13 10 mm 1/4" 16 mm 18 mm 29 mm 9.5 mm .005 Kg
3538 10 17 10 mm 3/8" 16 mm 21.5 mm 31 mm 11.5 mm .006 Kg
3538 12 17 12 mm 3/8" 19 mm 21.5 mm 34.5 mm 11.5 mm .008 Kg
