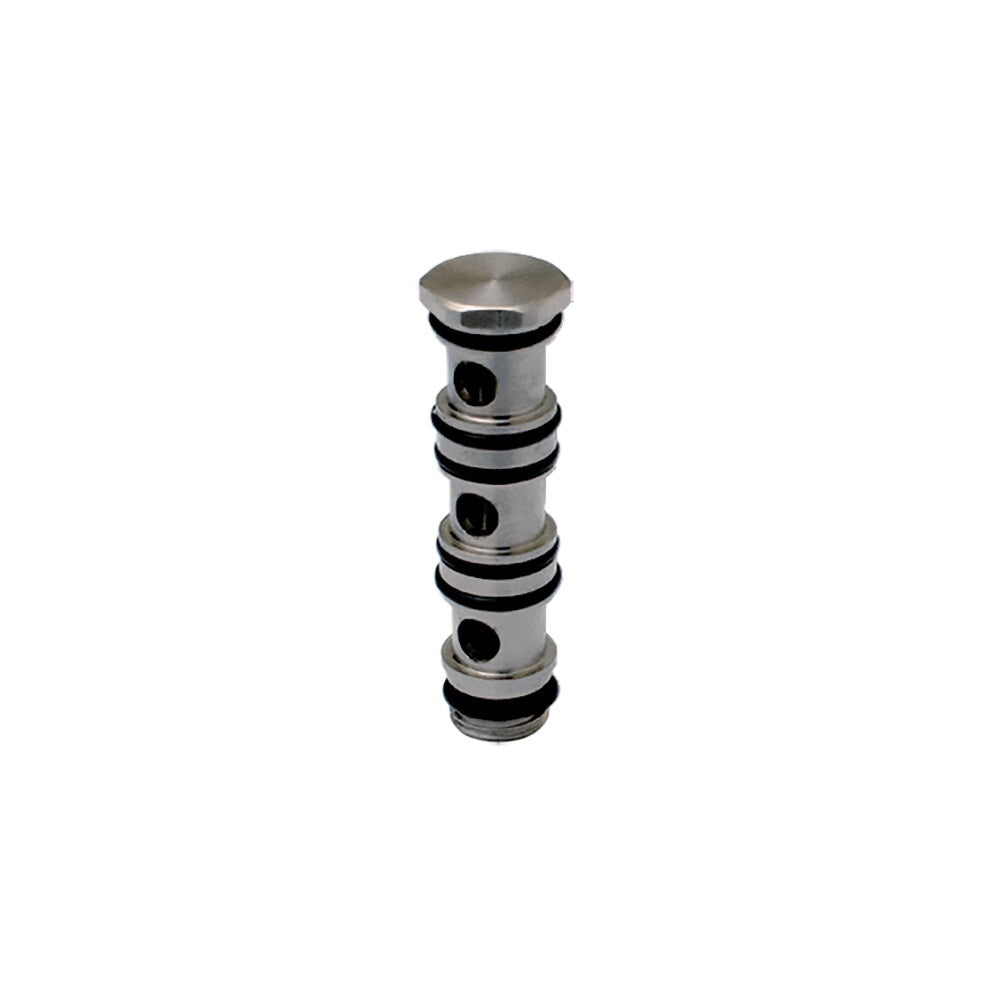

3529 00 17 by Parker | Legris Modular Fittings | 3/8" Male BSPP Thread | 3 Stack Banjo Bolts | Nickel-Plated Brass | Pack of 10

3529 00 17 by Parker | Legris Modular Fittings | 3/8" Male BSPP Thread | 3 Stack Banjo Bolts | Nickel-Plated Brass | Pack of 10

Sale price$286.32

by Parker Hannifin
LF 3000® Push-In Fittings / Modular Banjo Fittings:3528 Stacking Banjo for 2 Body High Modules, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $269.14
15–29 $243.37
30+ $214.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3529 Series
Shape:

Banjo

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number C F H H1 H2 H3 Kg
3529 00 10 1/8" 13 mm 45.5 mm 7.5 mm 22 mm 36 mm .023 mm
3529 00 13 1/4" 17 mm 54 mm 9.5 mm 27.5 mm 45.5 mm .042 mm
3529 00 17 3/8" 20 mm 67.5 mm 11 mm 32 mm 54 mm .069 mm

Full bore

Designed for use with 3 banjo bodies
