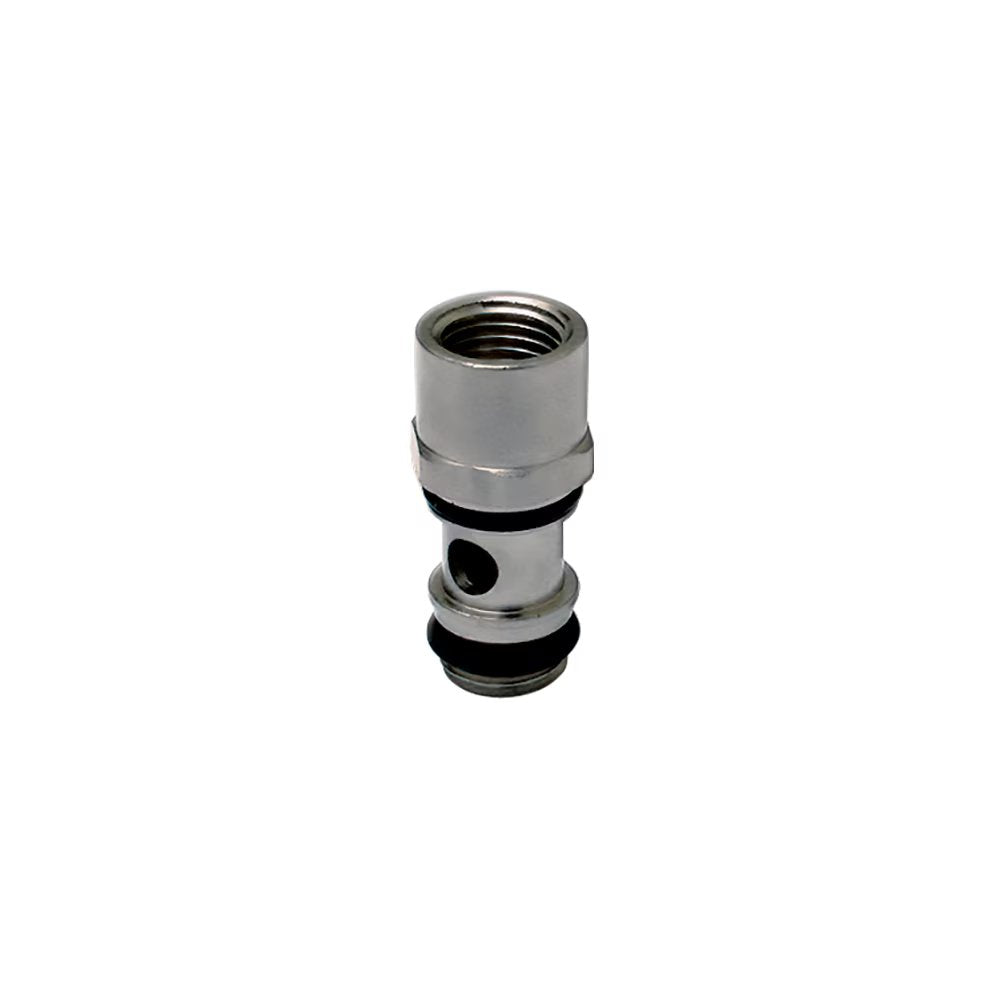

3524 00 21 by Parker | Legris Modular Fittings | 1/2" Male/Female BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

3524 00 21 by Parker | Legris Modular Fittings | 1/2" Male/Female BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

Sale price$178.25

by Parker Hannifin
LF 3000® Push-In Fittings / Modular Banjo Fittings:3524 Threaded Banjo Bolts, Male/Female BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $167.56
20–59 $151.51
60+ $133.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3524 Series
Shape:

Banjo

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number C F H H1 Kg
3524 00 10 1/8" 13 mm 24.5 mm 7.5 mm .013 Kg
3524 00 13 1/4" 17 mm 33 mm 11 mm .027 Kg
3524 00 17 3/8" 20 mm 37.5 mm 11 mm .039 Kg
3524 00 21 1/2" 26 mm 42 mm 11.5 mm .067 Kg

Full bore

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
