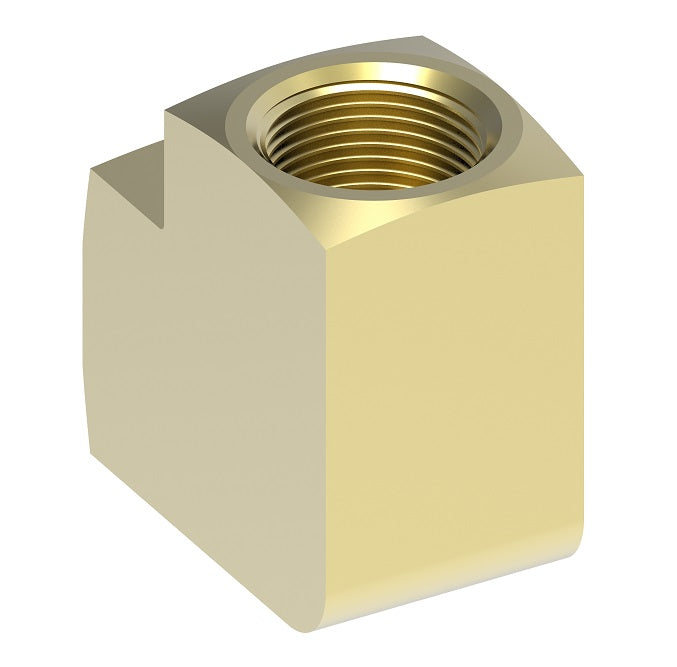

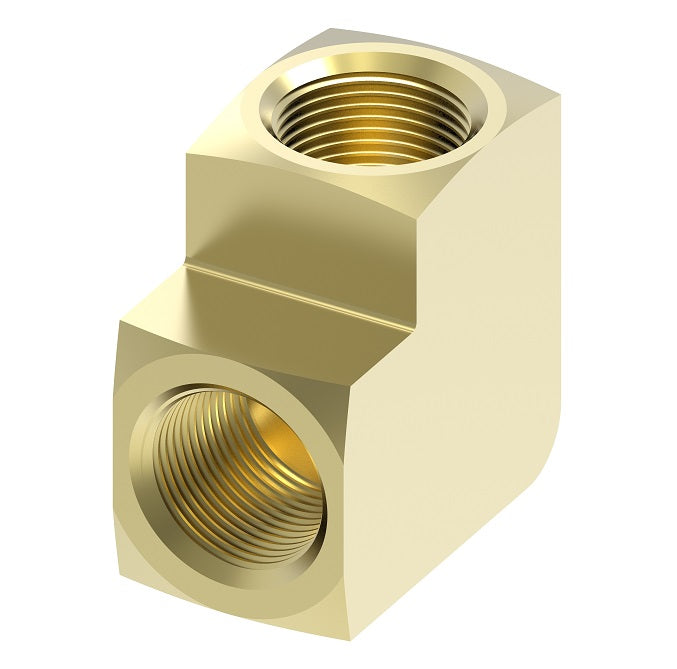

3500X4 by Danfoss | Pipe Adapter | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Brass
3500X4 by Danfoss | Pipe Adapter | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Brass
3500X4 by Danfoss | Pipe Adapter | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Brass

3500X4 by Danfoss | Pipe Adapter | 90° Elbow | 1/4" Female NPTF x 1/4" Female NPTF | Brass

Sale price$4.40

Aeroquip® by Danfoss
Pipe Adapter - Female Adapter
Buy More, Save More!
Quantity Price Each
20–39 $4.14
40–79 $3.74
80+ $3.30
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Female NPTF
  • Some Ends Match
Material(s):
  • Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130238
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Female Pipe
Thread		 C D N
3500X2 1/8" 9/16" 0.339" 0.55"
3500X4 1/4" 11/16" 0.438" 0.78"
3500X6 3/8" 3/4" 0.562" 0.84"
3500X8 1/2" 1" 0.703" 1.09"
3500X12 3/4" 1-1/4" 0.891" 1.16"
