| Applications: |
|---|

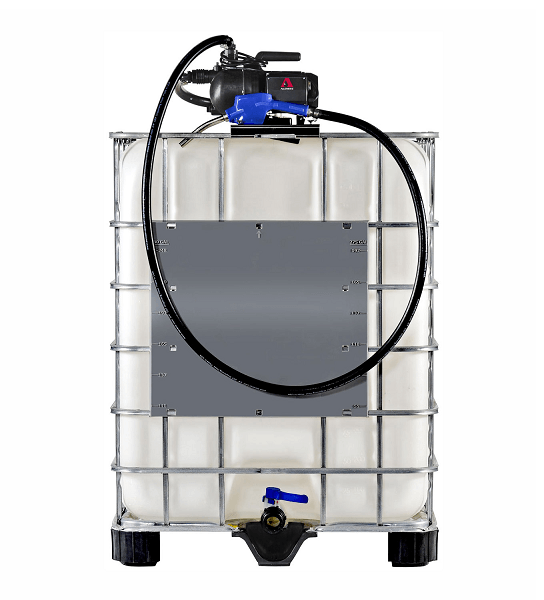

- Alemite's line of systems and equipment for Diesel Exhaust Fluid (DEF) includes 1/3hp DEF Pump System, 110-120VAC Centrifugal Pumps and 12VDC Pumps for closed drums and totes, Pneumatic and Electric Pumps for standard 2-inch bung containers, 1/2-inch Air-Operated Diaphragm Pumps and accessories.
|
| Features: |
|---|
- Self priming. Easy set up and start up, minimizing chance of operator error.
- High operating efficiency. Up to 7 GPM fill rate, quickly servicing each vehicle.
- Lightweight ergonomic design. Built-in handle, quickly change empty drum/tote with minimal effort.
- High quality components. Reliability and long service life in the heavy duty shop.
- INCLUDED ITEMS (343183 and 343185):
- Nozzle - Stainless Steel; Auto shut off
- Delivery Hose - 20' x 3/4"
- Suction Hose - 18" x 3/4" ID with 343183
- Suction Hose - 36" x 3/4" ID with 343185
- Mounting Plate - Stainless Steel (SS) with integrated nozzle holder
|
| Part Number |
HP |
Voltage |
Watts |
Drum |
Tote |
Flow Rate |
Mobile Cart |
| 343183 |
1/3 |
115/60 |
600 |
55g |
275/330 |
up to 7GPM |
N |
| 343185 |
1/3 |
115/60 |
600 |
55g* |
275/330 |
up to 7GPM |
Y |
* If used with cart #343137
