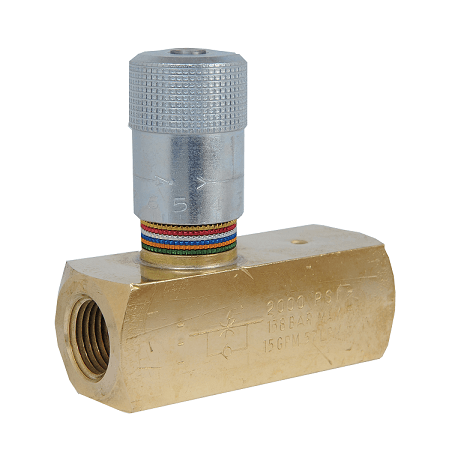

343093 Alemite Flow Control Valve, Brass Construction - Outlet: 1/2"-14 NPT - Inlet: 1/2"-14 NPT - Max Pressure: 2,000 PSI - Beltsmart
Alemite

343093 by Alemite | Flow Control Valve | Flow Range: 15 Gallon | Outlet: 1/2"-14 NPT | Inlet: 1/2"-14 NPT | Max Pressure: 2000 PSI | Brass

Sale price$373.34
Alemite Lube Dispensing Stations - Oil Bar and Spigots

Product Data:

Seal Material(s):
  • Brass

Applications:
  • Alemite's new oil bar line includes a compact, modular oil bar capable of accommodating up to three spigots. Locking and non-locking spigots are available for use with the unit.A brass flow control valve is offered to control pressure and flow at the spigot, and an optional inline digital meter measures fluid.
Features:
  • Steel construction
  • Modular design
  • 3-spigot capacity
  • 2.9-gallon removable reservoir/drain
  • Hole knockouts for inline digital meter
  • Overall dimensions: 33.39" tall x 19.69" wide x 3.94" deep
    (14.36" deep with removable reservoir)


Part Number Description Outlet Inlet Max Pressure Flow Range
343090 Oil Bar NA NA NA NA
343093 Flow Control Valve, Brass Construction 1/2"-14 NPT 1/2"-14 NPT 2,000 psi 15 GPM
343098 Installation Kit, Use to Connect Spigot Into Inline Meter; Includes 45° Street Elbows (2), Close Nipple, Special Street Elbow NA NA NA NA


Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
