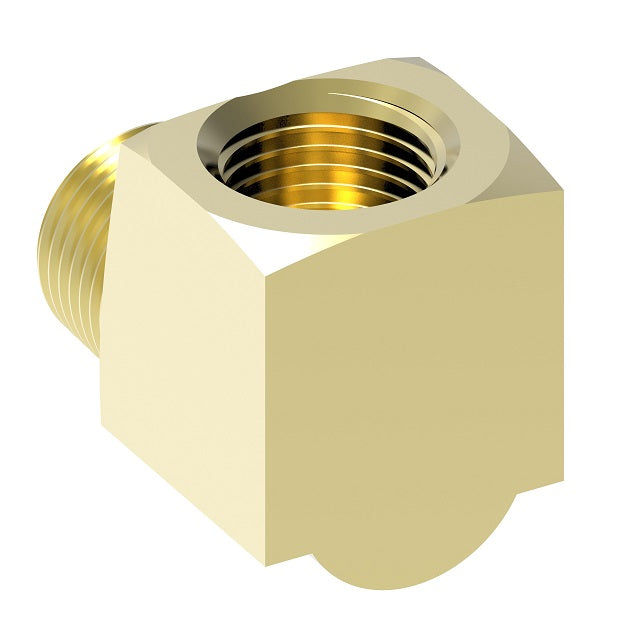

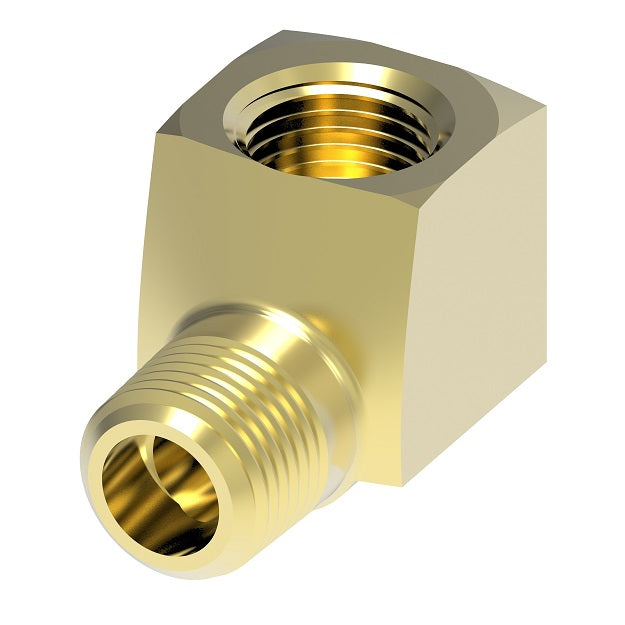

3400X2WZ by Danfoss | Pipe Adapter | 90° Street Elbow Short Thread (with Sealant) | 1/8" Female NPTF (Short Thread) x 1/8" Male NPTF (Special Short Thread) | Brass
3400X2WZ by Danfoss | Pipe Adapter | 90° Street Elbow Short Thread (with Sealant) | 1/8" Female NPTF (Short Thread) x 1/8" Male NPTF (Special Short Thread) | Brass
3400X2WZ by Danfoss | Pipe Adapter | 90° Street Elbow Short Thread (with Sealant) | 1/8" Female NPTF (Short Thread) x 1/8" Male NPTF (Special Short Thread) | Brass
Danfoss/Eaton

3400X2WZ by Danfoss | Pipe Adapter | 90° Street Elbow Short Thread (with Sealant) | 1/8" Female NPTF (Short Thread) x 1/8" Male NPTF (Special Short Thread) | Brass

Sale price$3.76

Aeroquip® by Danfoss
Pipe Adapter - Street Elbow

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/8in Female NPTF
  • 1/8in Male NPTF
Material(s):
  • Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Ref. SAE No. 130239
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe
Thread		 Female Pipe
Thread		 C D E N N1
3400X2 3400X2Z 1/8" 1/8" 9/16" 0.219" 0.25" 0.66" 0.47"
3400X2W 3400X2WZ 1/8"* 1/8"** 1/2" 0.188" 0.25" 0.57" 0.34"
3400X4 3400X4Z 1/4" 1/8" 11/16" 0.219" - 0.72" 0.53"
3400X4W 3400X4WZ 1/4"* 1/4"** 11/16" 0.266" 0.36" 0.78" 0.45"
3400X4X2 3400X4X2Z 1/4" 1/4" 11/16" 0.312" - 0.91" 0.72"
3400X6 3400X6Z 3/8" 3/8" 13/16" 0.438" - 0.98" 0.72"
3400X8 3400X8Z 1/2" 1/2" 1" 0.562" - 1.25" 1.04"
3400X12 3400X12Z 3/4" 3/4" 1-1/4" 0.750" - 1.38" 1.12"
