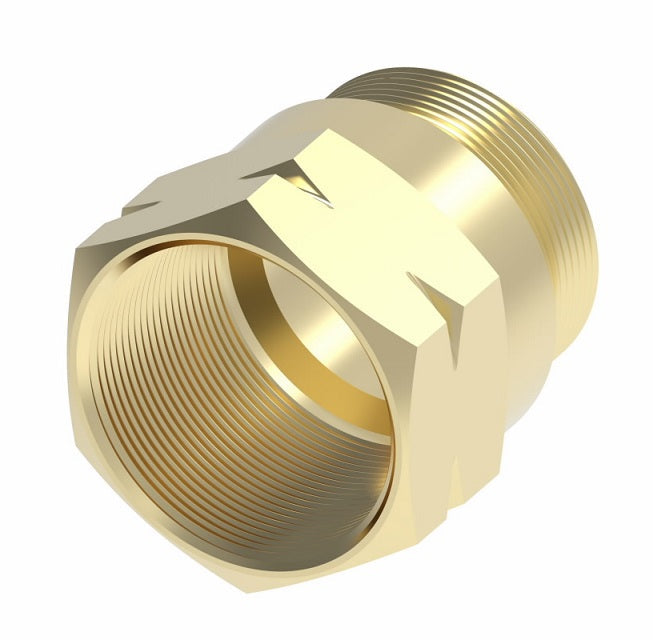

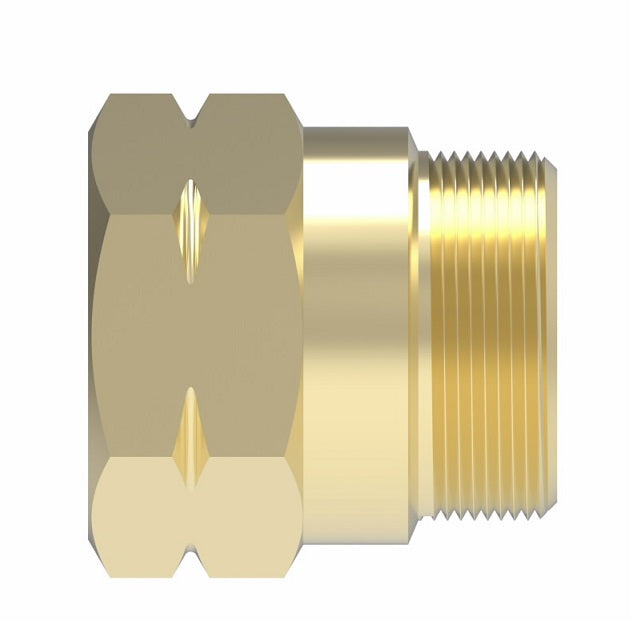

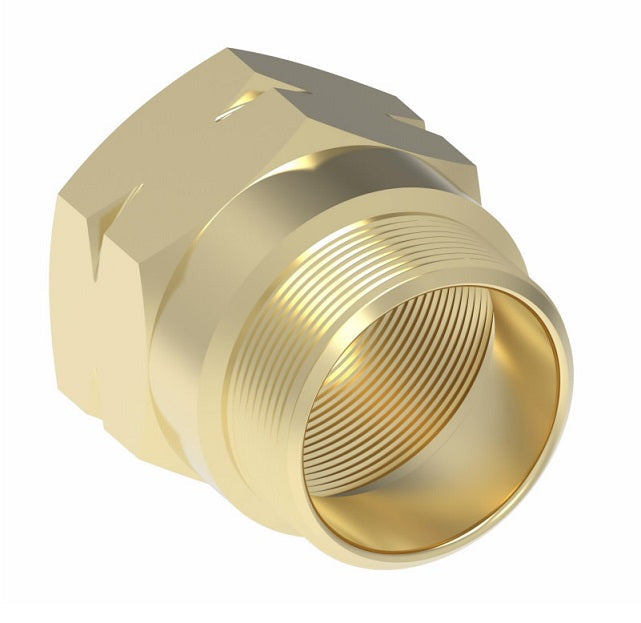

33808-D Weatherhead by Danfoss | Nut for Spring Guard for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass
33808-D Weatherhead by Danfoss | Nut for Spring Guard for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass
33808-D Weatherhead by Danfoss | Nut for Spring Guard for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass

33808-D Weatherhead by Danfoss | Nut for Spring Guard for Field Attachable Fitting | 338 'B' Series DOT | -08 Hose ID | Brass

Sale price$13.04
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D.
33806-D 3/8"
33808-D 1/2"

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Compatible Series:
  • EC038 Series

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
