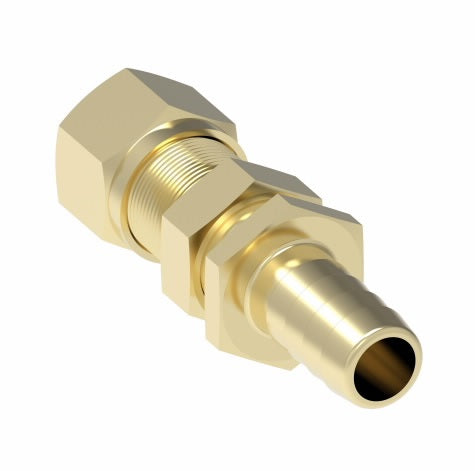

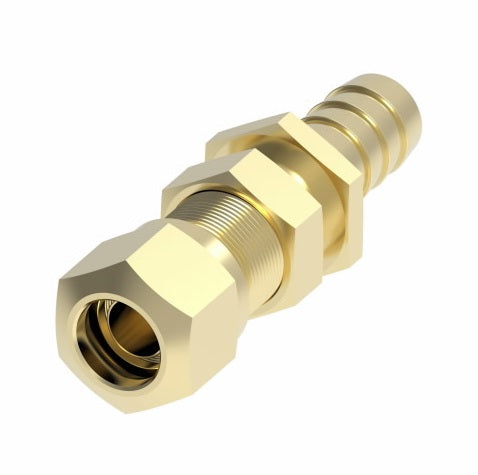

33806P-Y66 Weatherhead by Danfoss | 338 'P' Series | Air Brake Slider Line Crimp Fitting | -06 Air Brake End x -06 Hose Barb | Brass
Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Air Brake Slider Line - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $27.69 |
| 40–79 | $25.04 |
| 80+ | $22.10 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
Componentry |
|---|---|
| 1. Brass collar | |
| 2. Brass insert. Male pipe or brass swivel insert with brass SAE nut. | |
| 3. Brass A.B.S. insert with steel A.B.S. swivel nut. |
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Brass Part Number |
Hose I.D. |
Tube Size |
Thread Size |
A | Hose Cut-Off Factor |
Hole Diameter |
Hex E |
Hex F |
| 33806P-Y66 | 3/8" | 3/8" | 17/32-24 | 2.41" | 1.00" | 0.28" | 1-1/16" | 1-1/8" |
| 33806P-Y68 | 3/8" | 1/2" | 11/16-20 | 2.51" | 1.00" | 0.28" | 1-1/16" | 1-1/8" |
| 33808P-Y68 | 1/2" | 1/2" | 11/16-20 | 2.69" | 1.28" | 0.41" | 7/8" | 13/16" |
Note: Drawings may differ from actual parts.
