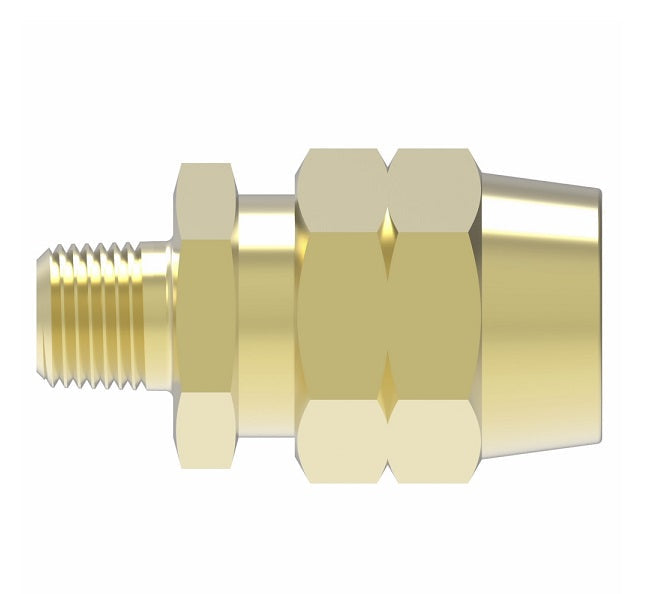

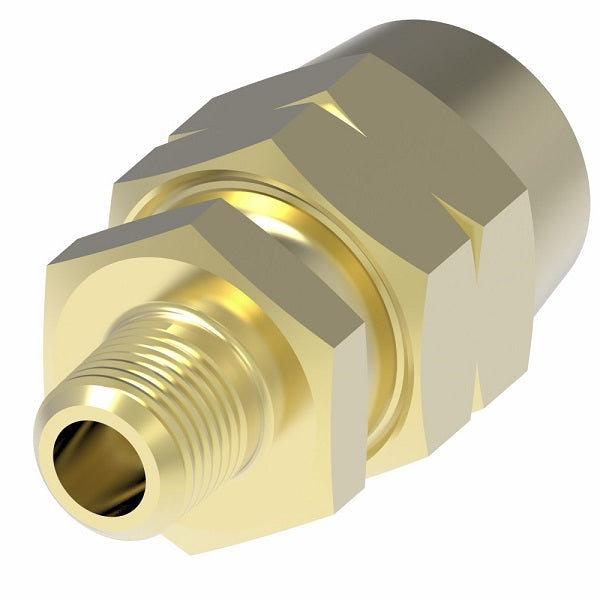

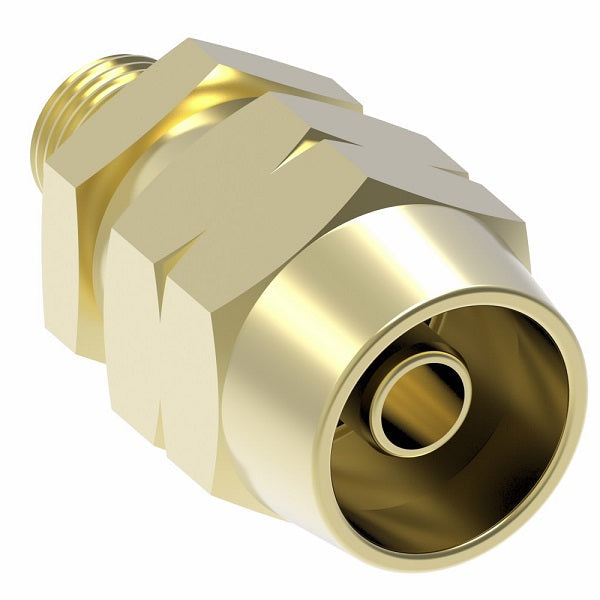

33806B-Y28 Weatherhead by Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass
33806B-Y28 Weatherhead by Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass
33806B-Y28 Weatherhead by Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass

33806B-Y28 Weatherhead by Danfoss | Male Connector Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass

Sale price$21.34
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. Pipe Size Over All Length Hose Cut-Off Factor
33806B-Y24 3/8" 1/4" 2.26" 0.69
33806B-Y26 3/8" 3/8" 2.35" 0.81
33806B-Y28 3/8" 1/2" 2.45" 0.94
33808B-Y26 1/2" 3/8" 2.24" 0.75
33808B-Y28 1/2" 1/2" 2.40" 0.94

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male PTF
  • 3/8in Reusable Hose End
Material(s):
  • Brass
