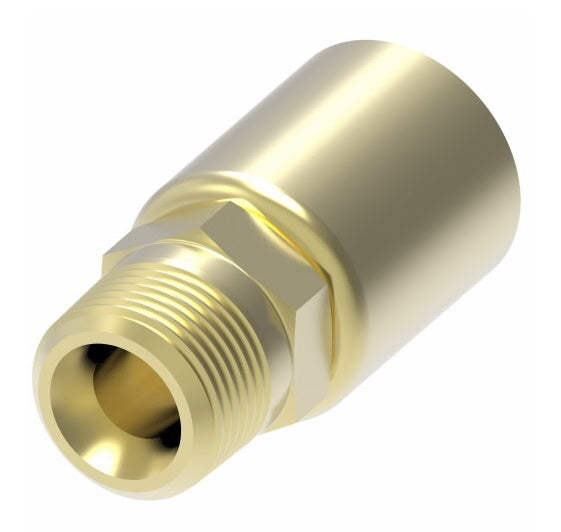

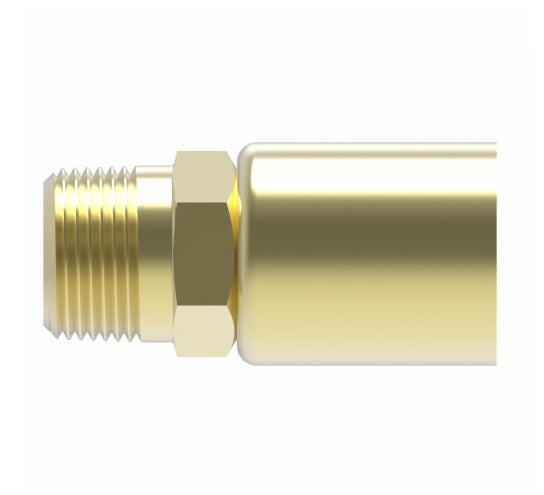

33806P-J06 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Swivel Crimp Fitting | -06 Male Pipe Swivel x -06 Hose Barb | Brass
33806P-J06 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Swivel Crimp Fitting | -06 Male Pipe Swivel x -06 Hose Barb | Brass
33806P-J06 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Swivel Crimp Fitting | -06 Male Pipe Swivel x -06 Hose Barb | Brass

33806P-J06 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Swivel Crimp Fitting | -06 Male Pipe Swivel x -06 Hose Barb | Brass

Sale price$20.47

Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Male Pipe Swivel - Straight
Buy More, Save More!
Quantity Price Each
10–39 $19.24
40–79 $17.40
80+ $15.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • 338 'P' Series
Shape:

Straight
Applications:
  • Air brake hose lines.
Advantages:
  • A permanent hose end saves time and is easy to assemble.
  • Brass material offers excellent resistance against corrosion.
Pressure:
  • Determined by hose burst pressure.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Componentry
1. Brass collar
2. Brass insert. Male pipe or brass swivel insert with brass SAE nut.
3. Brass A.B.S. insert with steel A.B.S. swivel nut.
Brass
Part Number		 Hose
I.D.		 Pipe
Size		 Thread
Size		 A Hose
Cut-Off
Factor		 Hole
Diameter		 Hex
E
33806P-J06 3/8" 3/8" 3/8-18 1.66" 0.81" 0.28" 11/16"

Note: Drawings may differ from actual parts.
