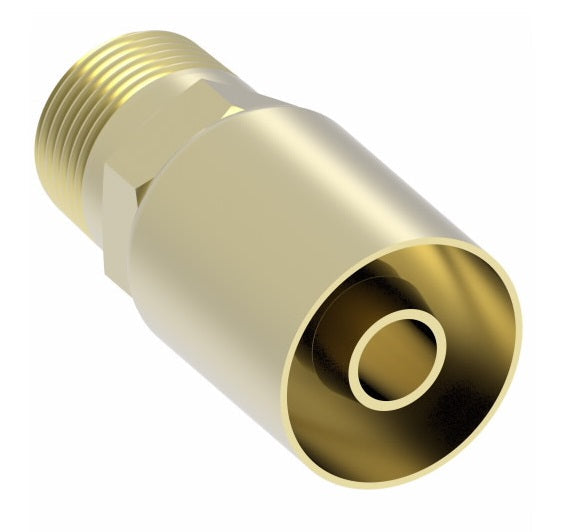

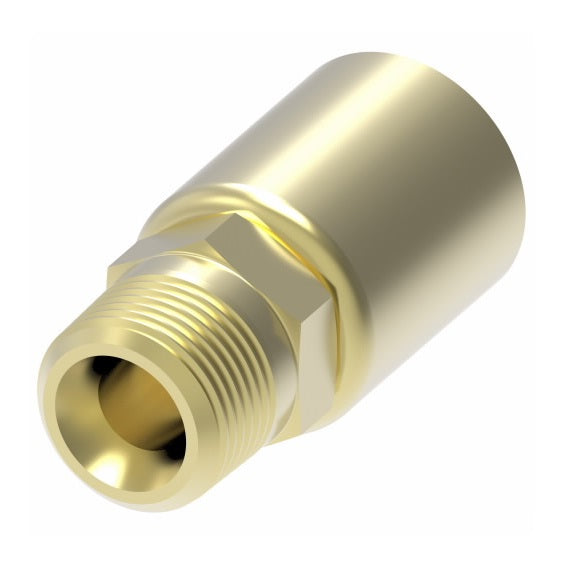

33806P-108 Weatherhead by Danfoss | 338 'P' Series | Male Pipe Rigid Crimp Fitting | -08 Male Pipe x -06 Hose Barb | Brass
Weatherhead by Danfoss
Coll-O-Crimp 338 'P' Series Crimp Fitting - Male Pipe Rigid - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.62 |
| 40–79 | $10.51 |
| 80+ | $9.27 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
Componentry |
|---|---|
| 1. Brass collar | |
| 2. Brass insert. Male pipe or brass swivel insert with brass SAE nut. | |
| 3. Brass A.B.S. insert with steel A.B.S. swivel nut. |
 |
|||||||
|---|---|---|---|---|---|---|---|
| Brass Part Number |
Hose I.D. |
Pipe Size |
Thread Size |
A | Hose Cut-Off Factor |
Hole Diameter |
Hex E |
| 33806P-104 | 3/8" | 1/4" | 1/4-18 | 1.71" | 0.75" | 0.28" | 9/16" |
| 33806P-106 | 3/8" | 3/8" | 3/8-18 | 1.72" | 0.81" | 0.28" | 11/16" |
| 33806P-108 | 3/8" | 1/2" | 1/2-14 | 1.95" | 1.00" | 0.28" | 7/8" |
| 33808P-106 | 1/2" | 3/8" | 3/8-18 | 1.73" | 0.81" | 0.38" | 11/16" |
| 33808P-108 | 1/2" | 1/2" | 1/2-14 | 1.94" | 1.00" | 0.38" | 7/8" |
Note: Drawings may differ from actual parts.
