33806B-Y38 Weatherhead by Danfoss | Male Connector with Spring Guard Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass
33806B-Y38 Weatherhead by Danfoss | Male Connector with Spring Guard Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass
33806B-Y38 Weatherhead by Danfoss | Male Connector with Spring Guard Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass

33806B-Y38 Weatherhead by Danfoss | Male Connector with Spring Guard Field Attachable Fitting | 338 'B' Series DOT | -08 Male Pipe (PTF SAE Short) x -06 Reusable Hose End | Brass

Sale price$23.51

Weatherhead by Danfoss

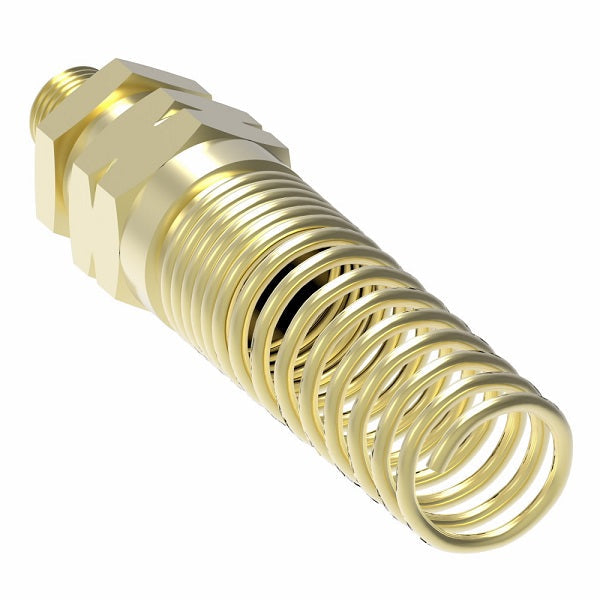

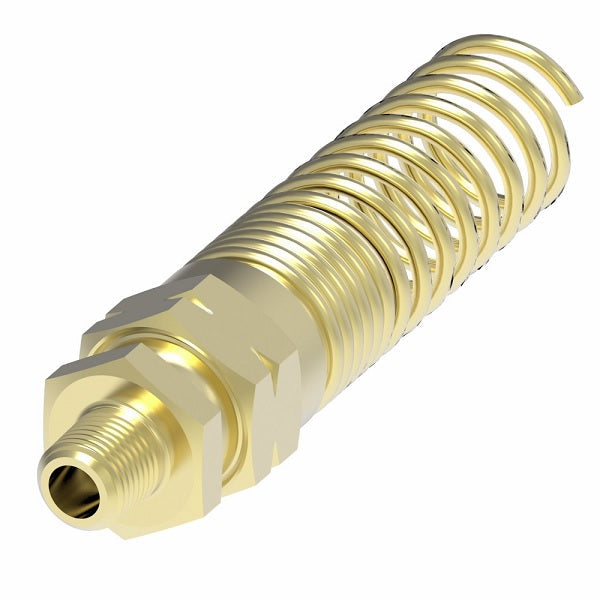

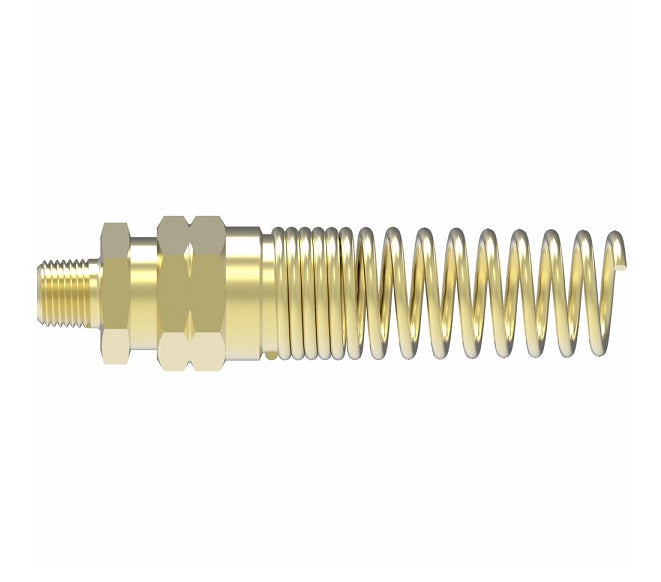

DOT Field Attachable Fitting - 338 'B' Series - Male Pipe (PTF Short) with Spring Guard - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Buy More, Save More!
Quantity Price Each
10–39 $22.10
40–79 $19.98
80+ $17.63
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male PTF
  • 3/8in Reusable Hose End
Material(s):
  • Brass
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. Pipe Size Over All Length Hose Cut-Off Factor
33806B-Y34 3/8" 1/4" 4.72" 0.75"
33806B-Y36 3/8" 3/8" 4.78" 0.81"
33806B-Y38 3/8" 1/2" 4.88" 0.94"
33808B-Y36 1/2" 3/8" 5.12" 0.75"
33808B-Y38 1/2" 1/2" 4.88" 0.94"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
