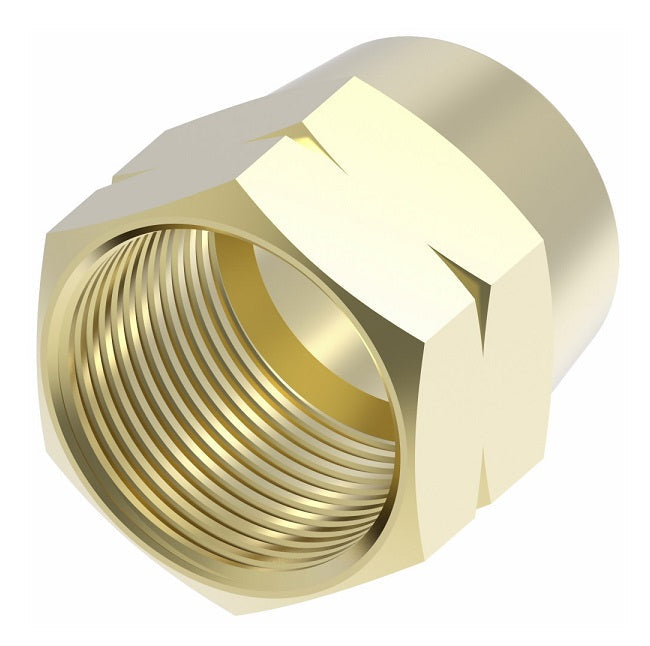

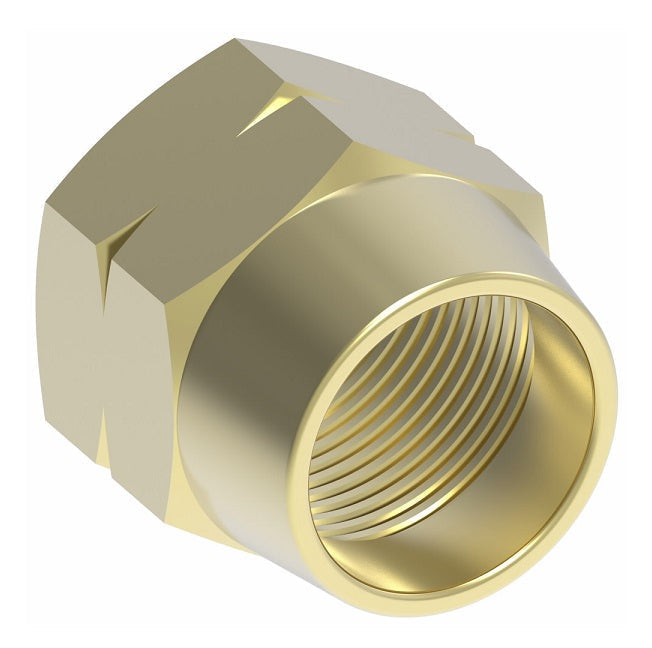

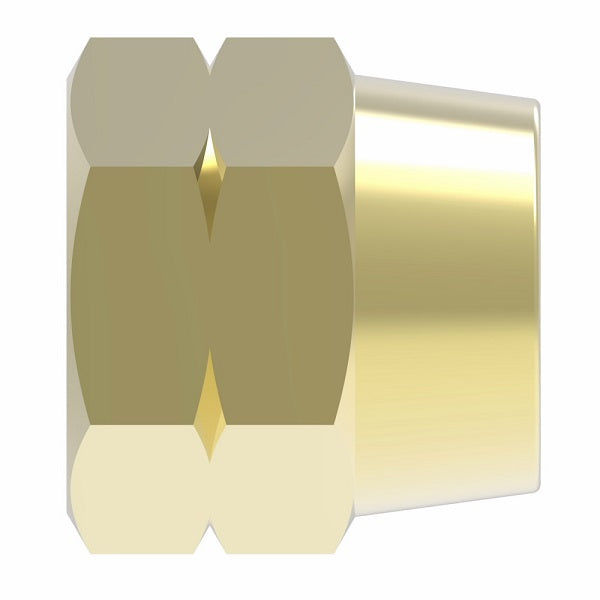

33806-B Weatherhead by Danfoss | Nut for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass
33806-B Weatherhead by Danfoss | Nut for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass
33806-B Weatherhead by Danfoss | Nut for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass

33806-B Weatherhead by Danfoss | Nut for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass

Minimum Order Quantity: 5 Units

Sale price$8.54

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Nut

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Buy More, Save More!
Quantity Price Each
20–39 $8.03
40–79 $7.26
80+ $6.41
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Compatible Series:
  • EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D.
33806-B 3/8"
33808-B 1/2"

Note: Drawings may differ from actual parts.
