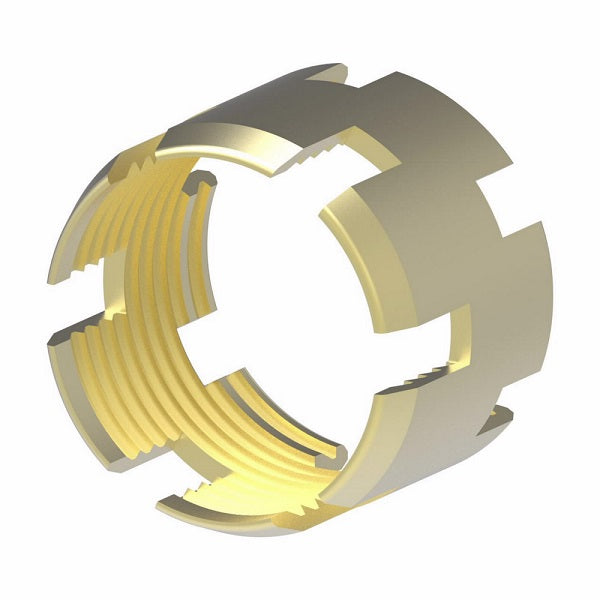

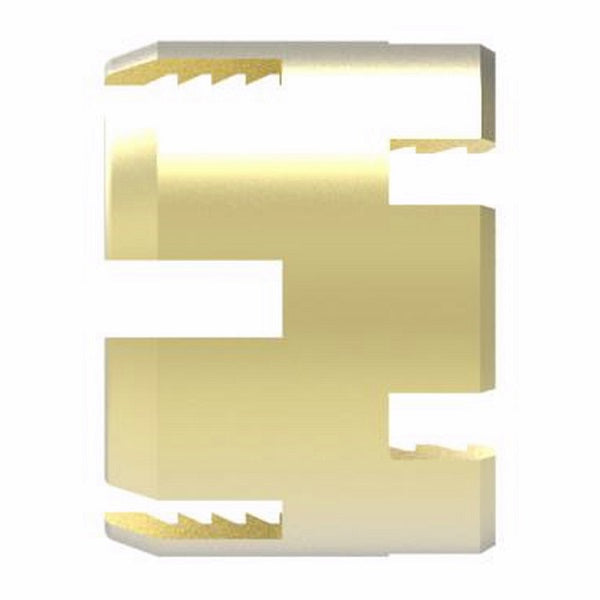

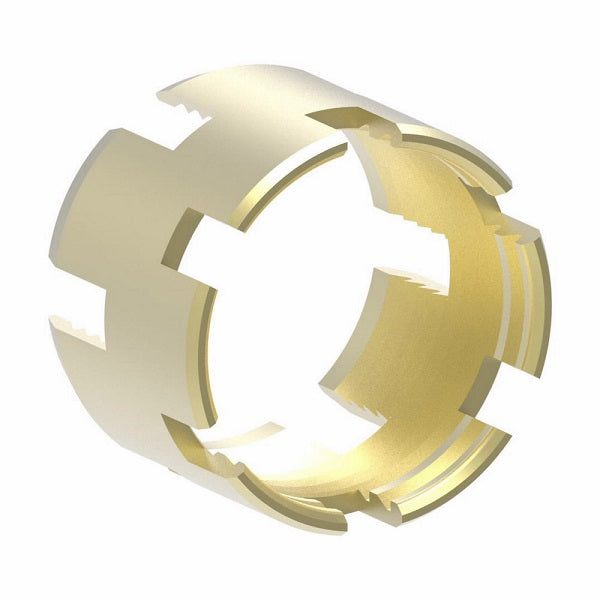

33806-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass
33806-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass
33806-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass

33806-A Weatherhead by Danfoss | Sleeve for Field Attachable Fitting | 338 'B' Series DOT | -06 Hose ID | Brass

Minimum Order Quantity: 5 Units

Sale price$4.23
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D.
33806-A 3/8"
33808-A 1/2"

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Compatible Series:
  • EC038 Series
