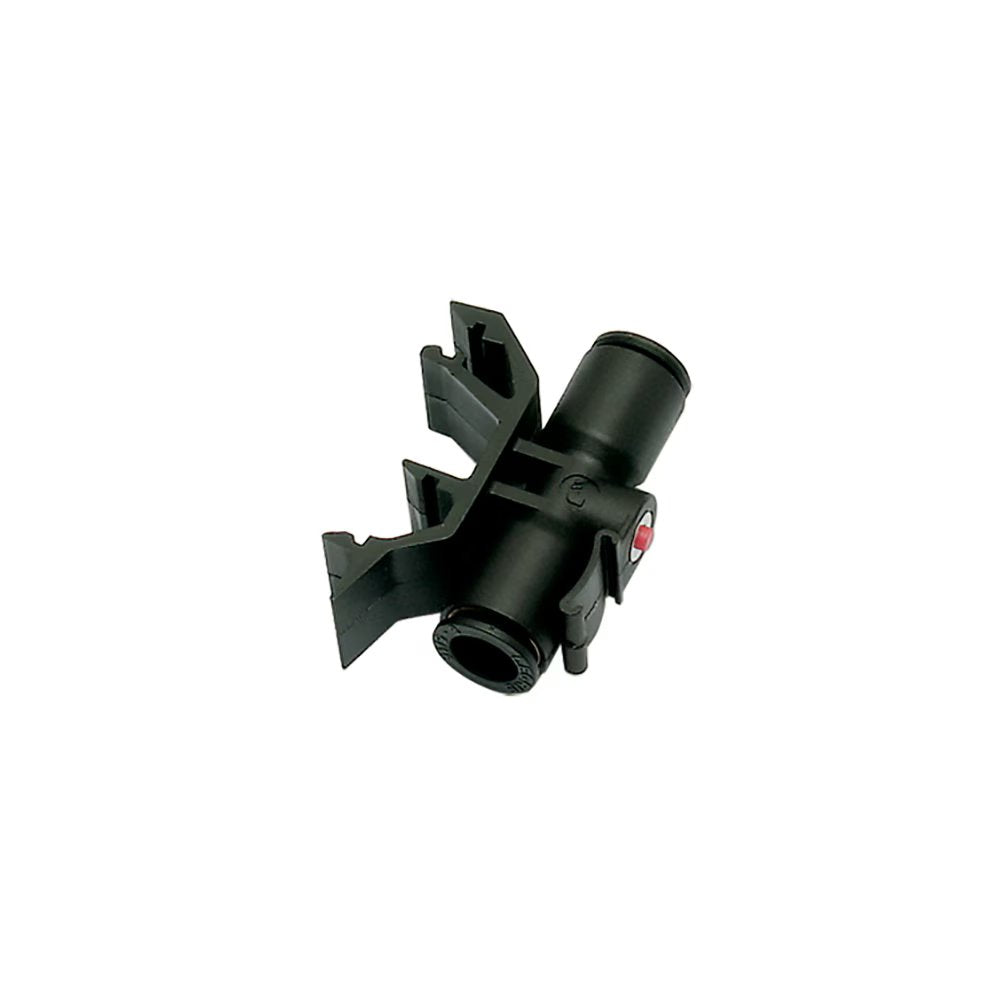

3379 08 00 by Parker | Legris Modular Plug-In Connectors | 8 mm Tube Size | 44.5 mm Length | Straight | Polymer | Pack of 5

3379 08 00 by Parker | Legris Modular Plug-In Connectors | 8 mm Tube Size | 44.5 mm Length | Straight | Polymer | Pack of 5

Sale price$190.09

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3379 DIN Rail Connector for 2 Tubes

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $178.68
20–59 $161.58
60+ $142.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3379 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • 3 types of solutions: in-line, panel-mounted or DIN rail connector
  • Minimized connection space
  • Prevents incorrect assembly
  • Customized multi-connectors upon request
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Panel-mounted: Zinc-Plated Steel, Technical Polymer
  • In-Line: Aluminum, Technical Polymer
  • DIN Rail: Technical Polymer
Part Number ØD H K L Kg
3379 04 00 4 mm 34.5 mm 11 mm 39.5 mm .010 Kg
3379 06 00 6 mm 34.5 mm 11 mm 39.5 mm .006 Kg
3379 08 00 8 mm 46 mm 13 mm 44.5 mm .008 Kg

Start pressure test point on the system
