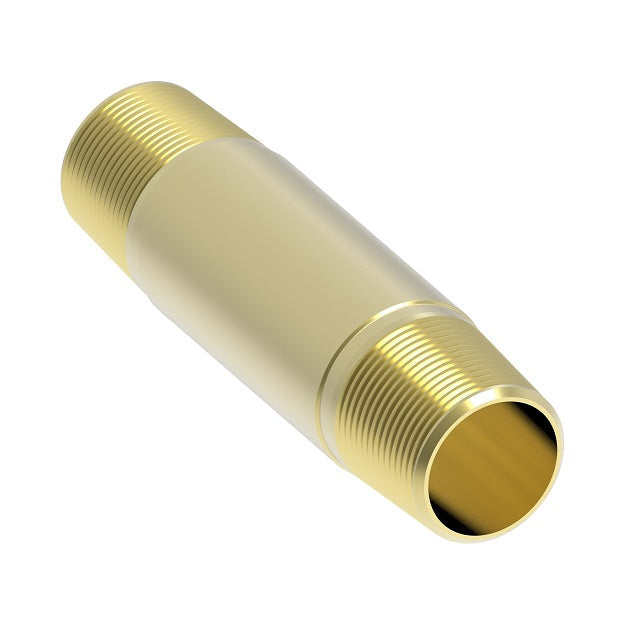

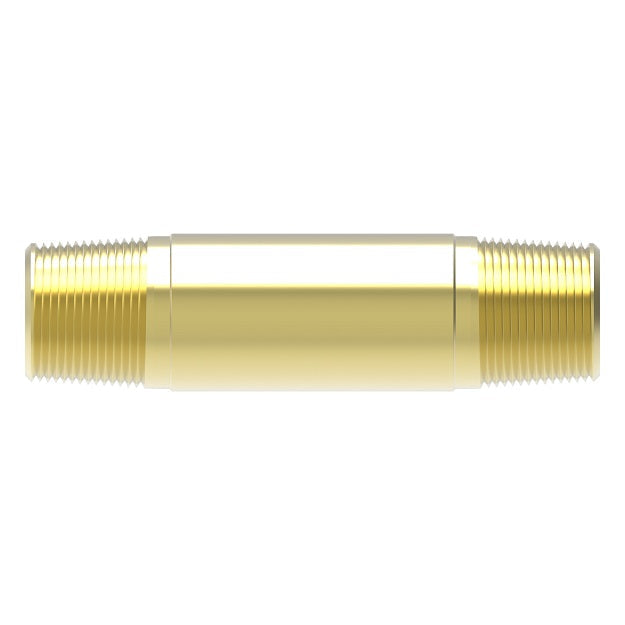

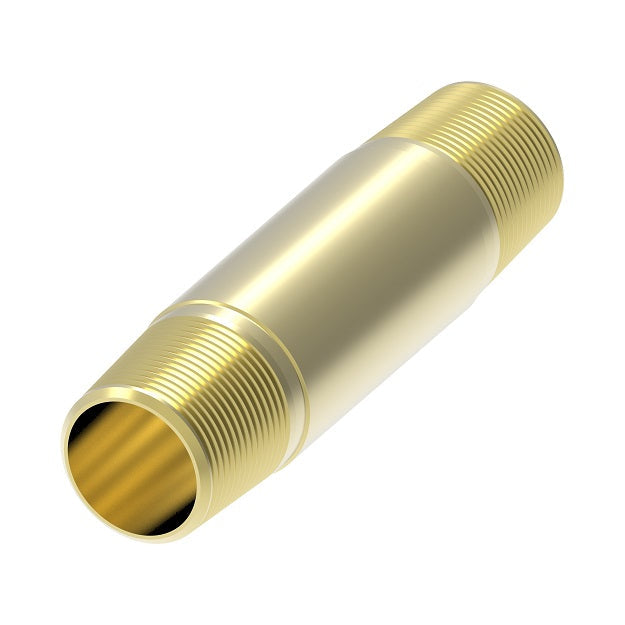

3327X4 by Danfoss | Pipe Adapter | Long Nipple | 1/4" Male Pipe x 1/4" Male Pipe | 1.50" Length | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Pipe Adapter - Long Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.10 |
| 40–79 | $2.81 |
| 80+ | $2.48 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Operating Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" |
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 |
 |
|||
|---|---|---|---|
| Brass Part Number |
Male Pipe Thread |
D | L |
| 3327X2 | 1/8" | 0.281" | 1.50" |
| 3328X2 | 1/8" | 0.281" | 2.00" |
| 3329X2 | 1/8" | 0.281" | 2.50" |
| 3330X2 | 1/8" | 0.281" | 3.00" |
| 3327X4 | 1/4" | 0.375" | 1.50" |
| 3328X4 | 1/4" | 0.375" | 2.00" |
| 3329X4 | 1/4" | 0.375" | 2.50" |
| 3330X4 | 1/4" | 0.375" | 3.00" |
| 3327X6 | 3/8" | 0.480" | 1.50" |
| 3328X6 | 3/8" | 0.490" | 2.00" |
| 3329X6 | 3/8" | 0.480" | 2.50" |
| 3330X6 | 3/8" | 0.480" | 3.00" |
| 3328X8 | 1/2" | 0.625" | 2.00" |
| 3329X8 | 1/2" | 0.625" | 2.50" |
| 3330X8 | 1/2" | 0.625" | 3.00" |
| 3329X12 | 3/4" | 0.750" | 2.50" |
