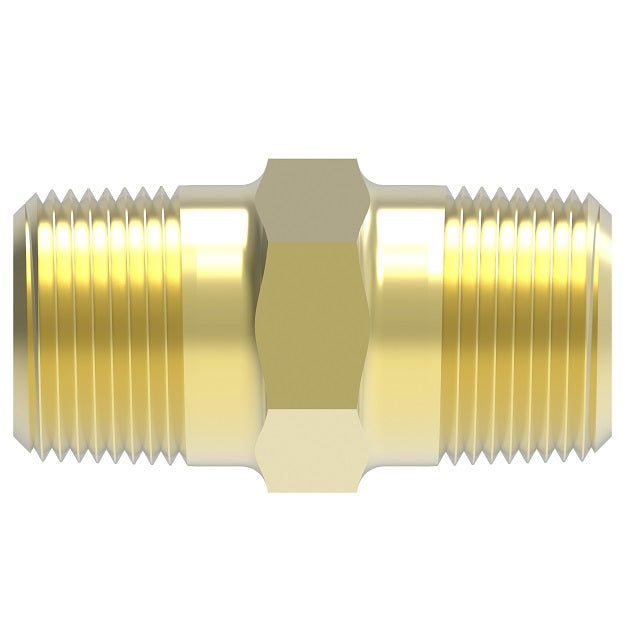

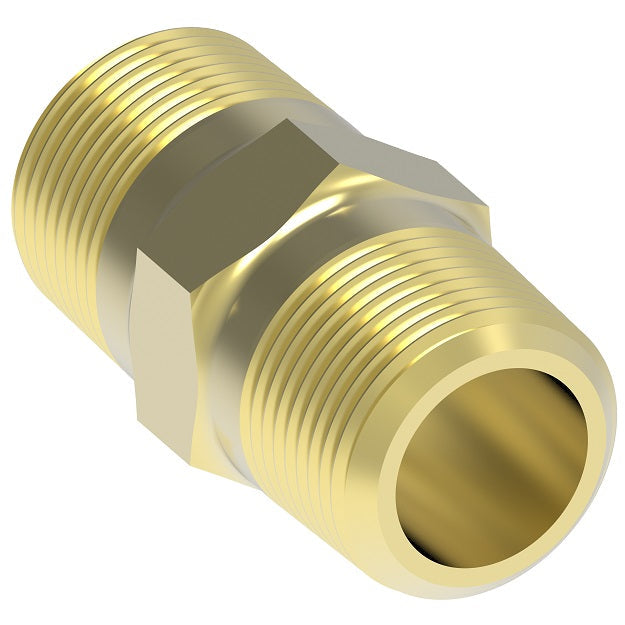

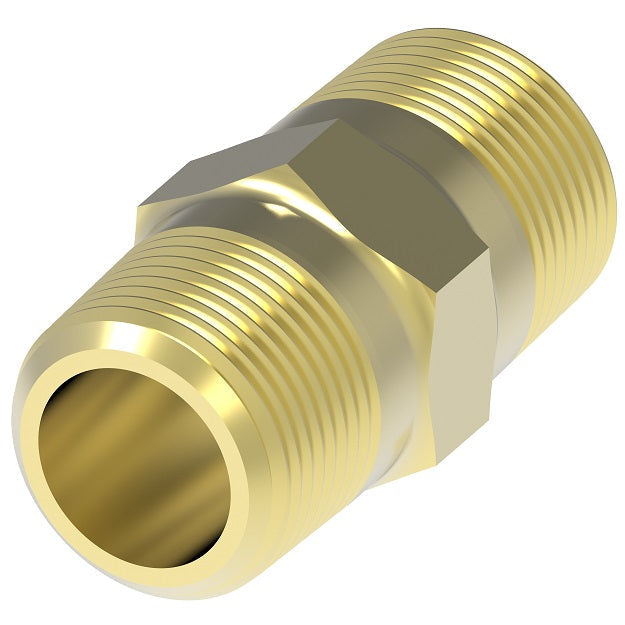

3325X2 by Danfoss | Pipe Adapter | Hex Nipple | 1/8" Male NPTF x 1/8" Male NPTF | Brass
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
Pipe Adapter - Hex Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.68 |
| 40–79 | $1.52 |
| 80+ | $1.34 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Advantages: | |||
|
|||
| Used With: | |||
|
|||
| Material: | |||
|
|||
| Operating Pressure: | |||
|
|||
| Temperature Range: | |||
|
|||
| Conformance: | |||
|
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" |
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 |
 |
|||||||
|---|---|---|---|---|---|---|---|
| Brass Part Number |
Brass with Sealant Part Number |
Male Pipe Thread A |
Male Pipe Thread A1 |
Hex C |
D | D1 | L |
| 3325X1 | - | 1/16" | 1/16" | 3/8" | 0.125" | 0.125" | 0.978" |
| 3325X2X1 | - | 1/8" | 1/16" | 7/16" | 0.230" | 0.156" | 0.955" |
| 3325X2 | - | 1/8" | 1/8" | 7/16" | 0.219" | 0.219" | 0.97" |
| 3325X4X2 | - | 1/4" | 1/8" | 9/16" | 0.219" | 0.219"* | 1.19" |
| 3325X4 | 3325X4Z | 1/4" | 1/4" | 9/16" | 0.312" | 0.312" | 1.38" |
| 3325X6X2 | - | 3/8" | 1/8" | 11/16" | 0.219" | 0.438" | 1.22" |
| 3325X6X4 | - | 3/8" | 1/4" | 11/16" | 0.312" | 0.438" | 1.41" |
| 3325X6 | - | 3/8" | 3/8" | 11/16" | 0.438" | 0.438" | 1.41" |
| 3325X8 | 3325X8Z | 1/2" | 1/2" | 7/8" | 0.562" | 0.562" | 1.81" |
| 3325X12 | - | 3/4" | 3/4" | 1-1/16" | 0.750" | 0.750" | 1.94" |
* Optional .312 Counterbore on 1/4" side
