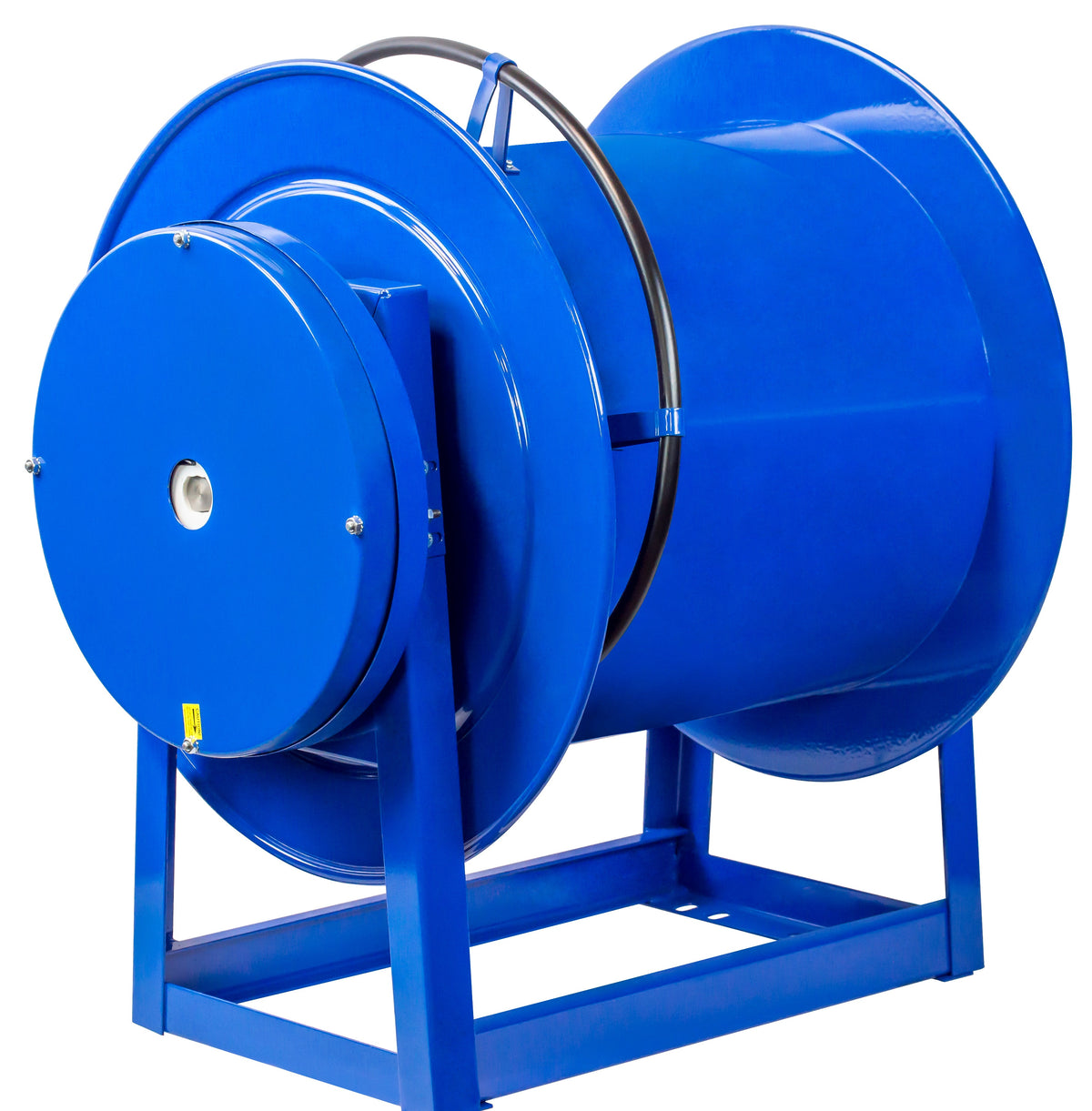

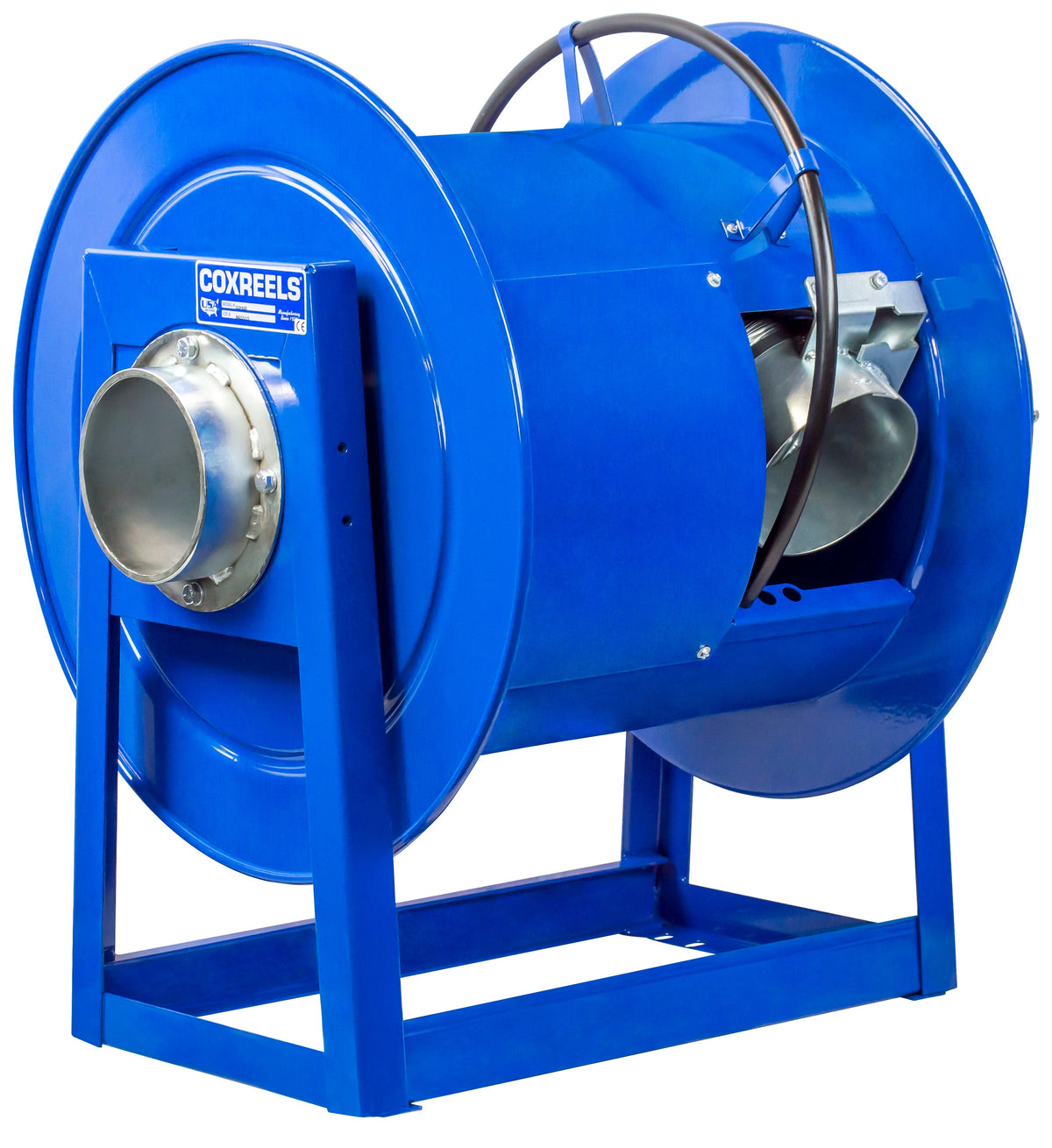

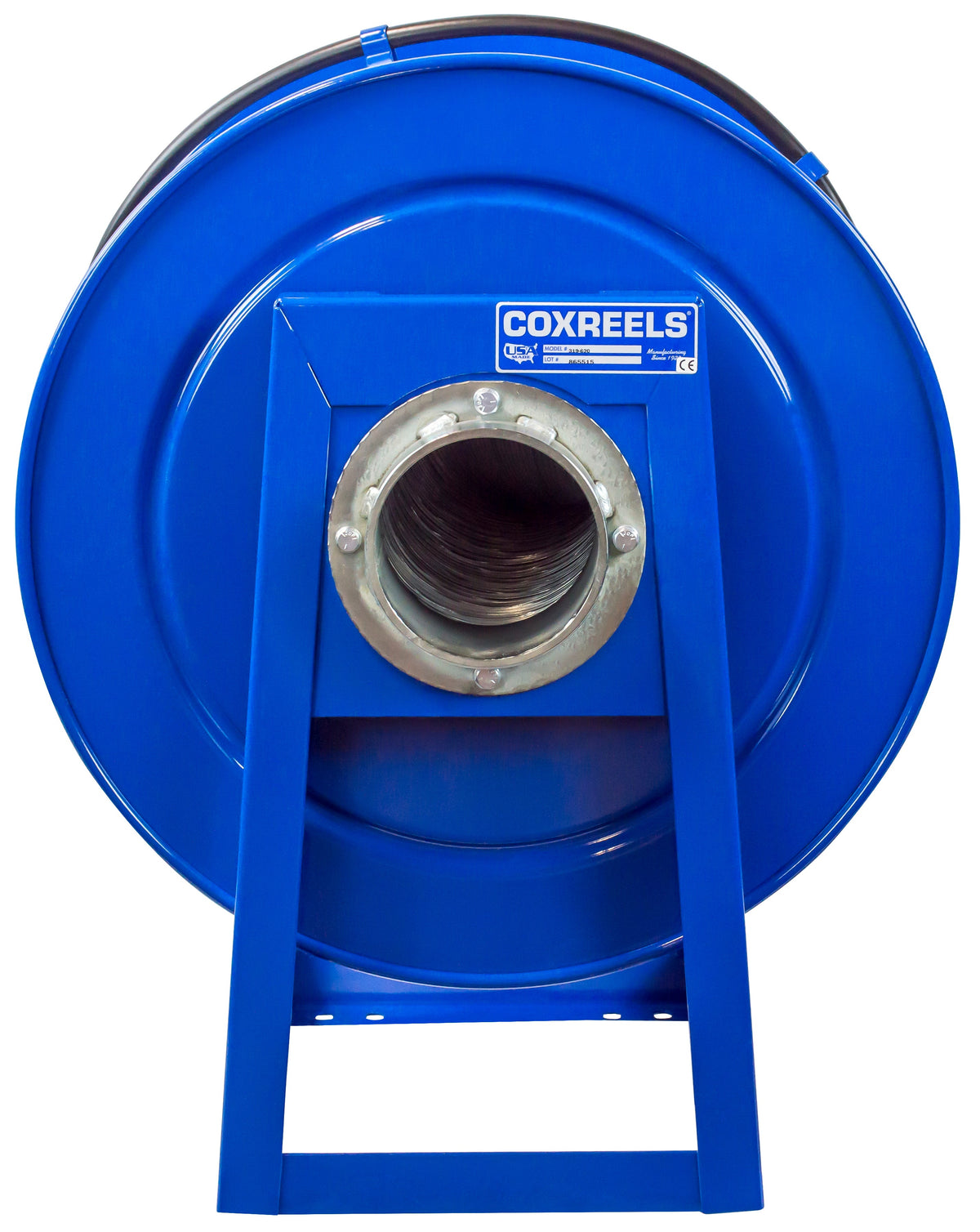

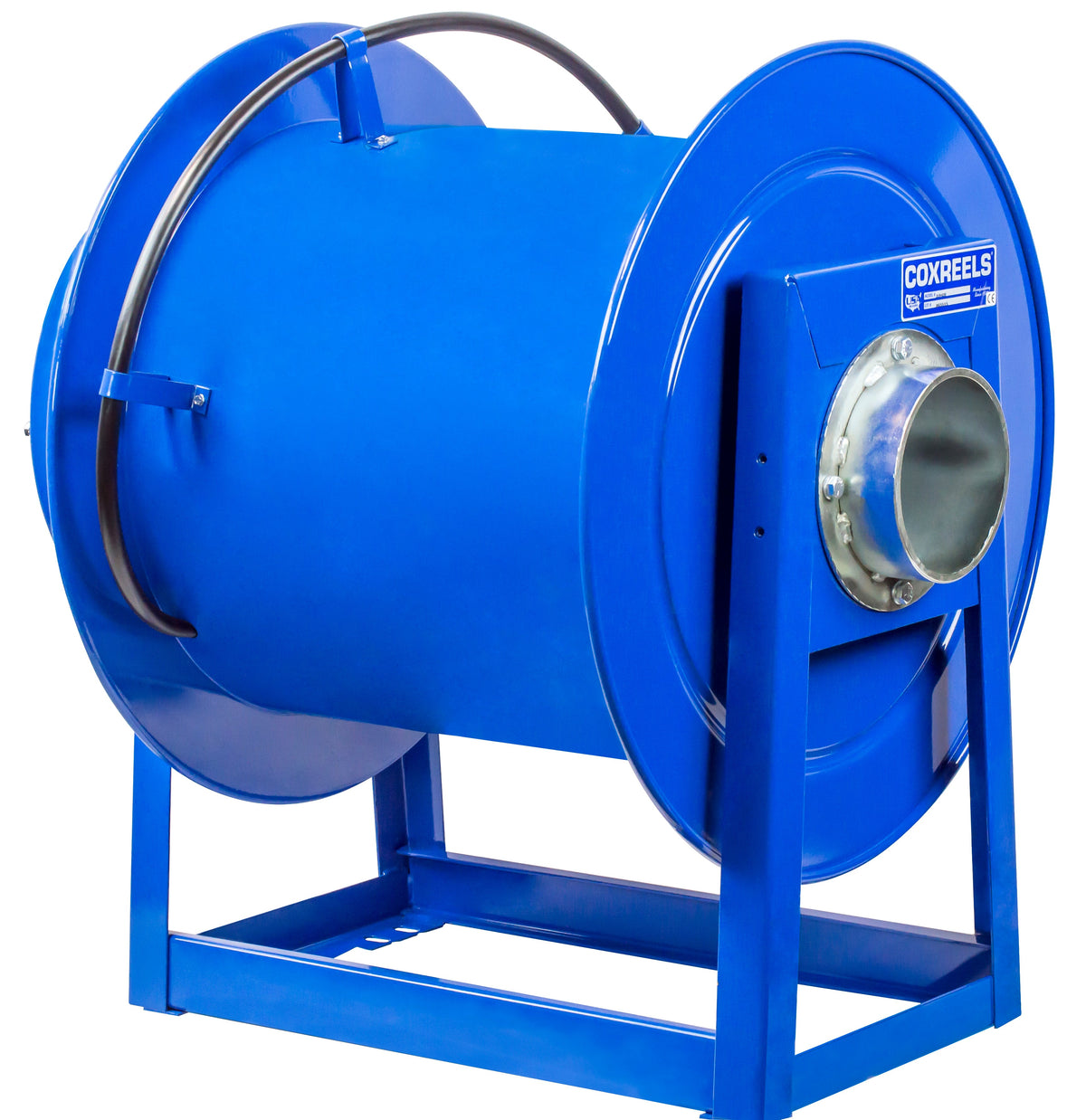

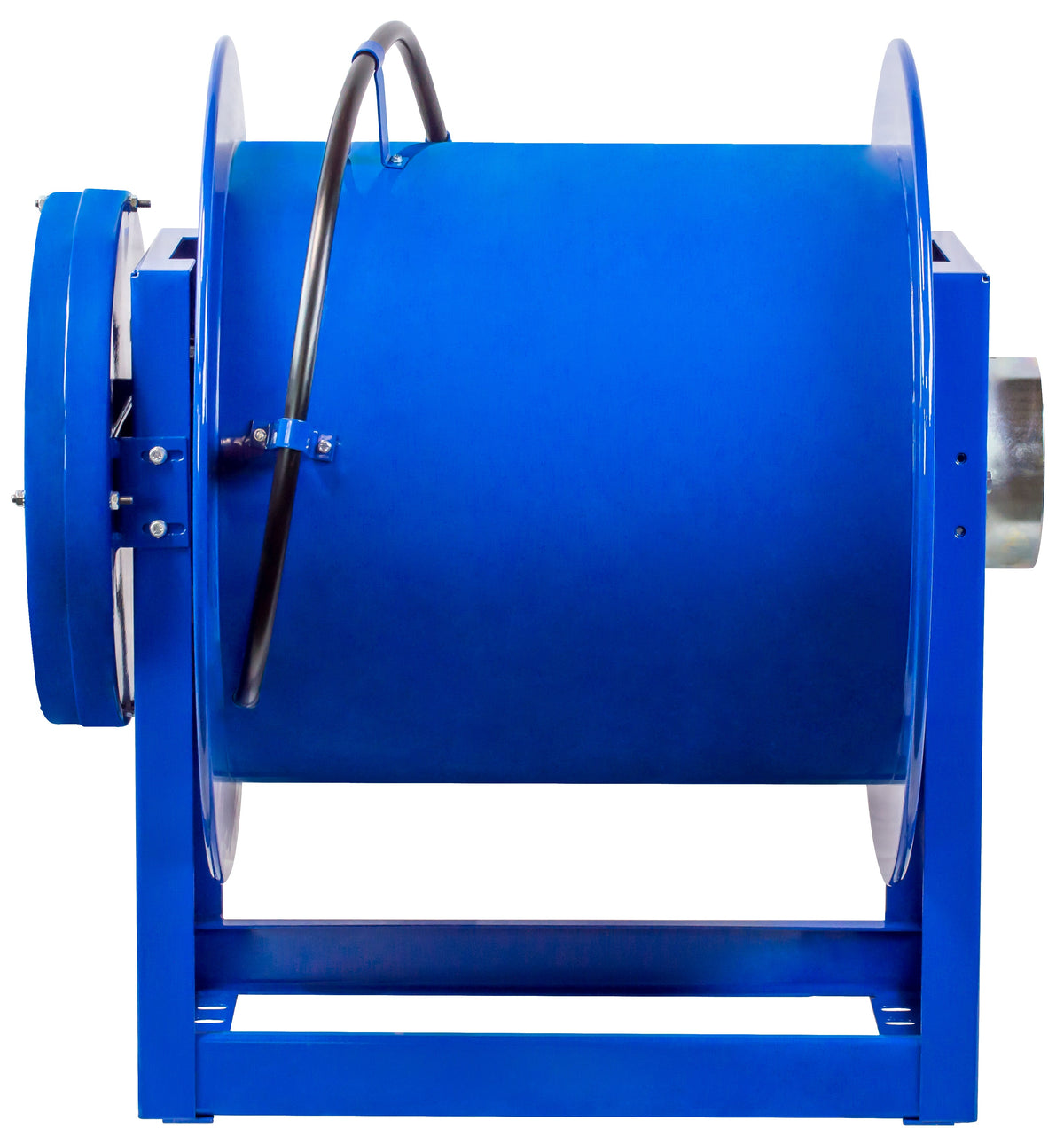

332-636 by Coxreels | 300 Series | Spring Driven Exhaust Hose Reel | 6" Hose ID, 6" FNPT Inlet | Steel | 36ft Capacity, Hose Not Included
Coxreels 300 Series Spring Driven Hose Reels
Steel A-frame spring driven hose reels for exhaust removal. Made in the U.S.A.
1
What is this product used for?
- Exhaust Removal
2
What are the key specifications?
Steel, A-frame
Female NPT, same size as the hose I.D.
250°F
Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
0.5" slotted mounting holes
3
What are the main product features?
- Exhaust Ductwork — Fits 4-6" exhaust ductwork on all models so ductwork does not need to be fitted per reel.
- Steel Frame — All welded steel frame, no bolts, for strenght, durability, stability and to prevent tip-overs.

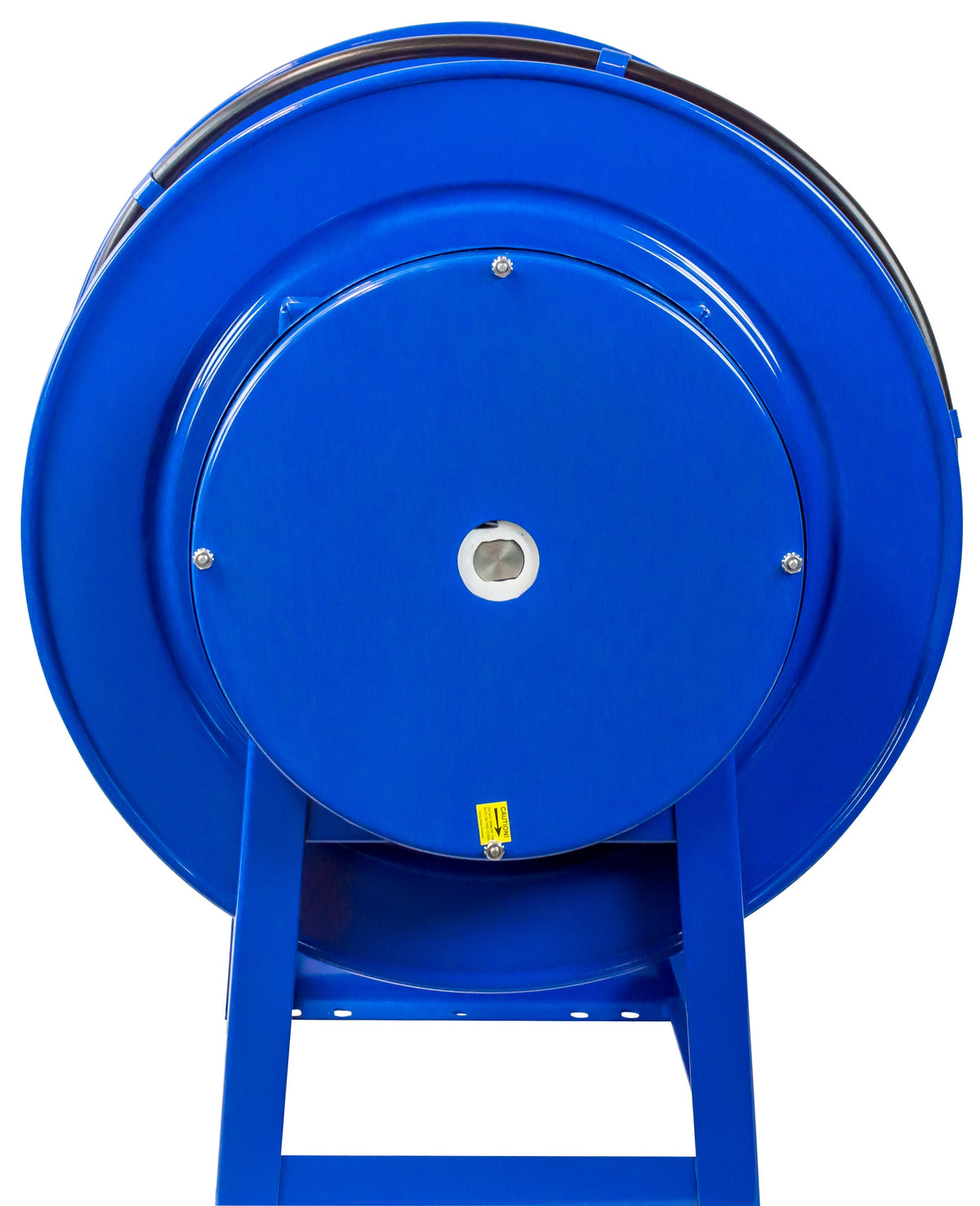

- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

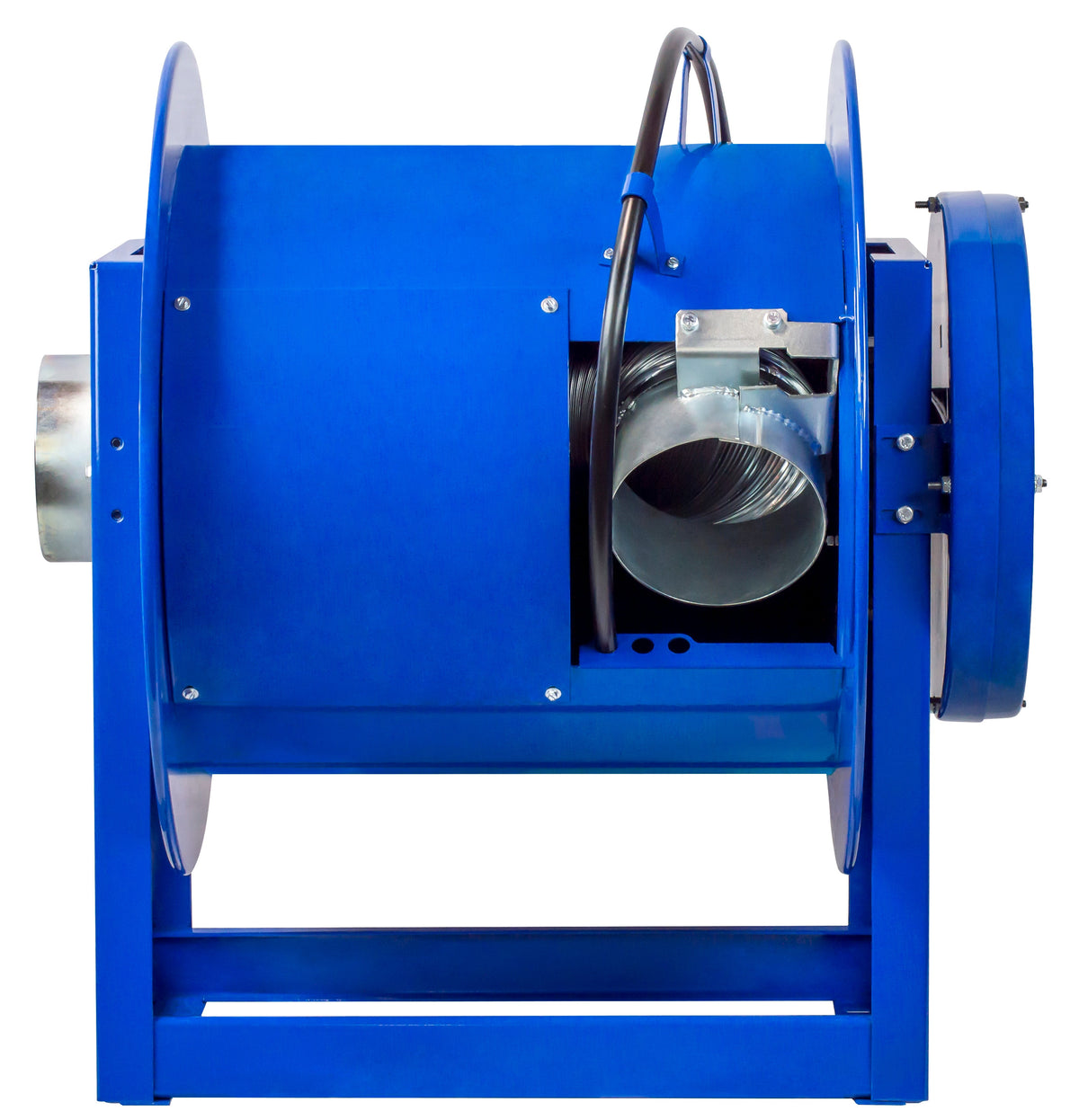

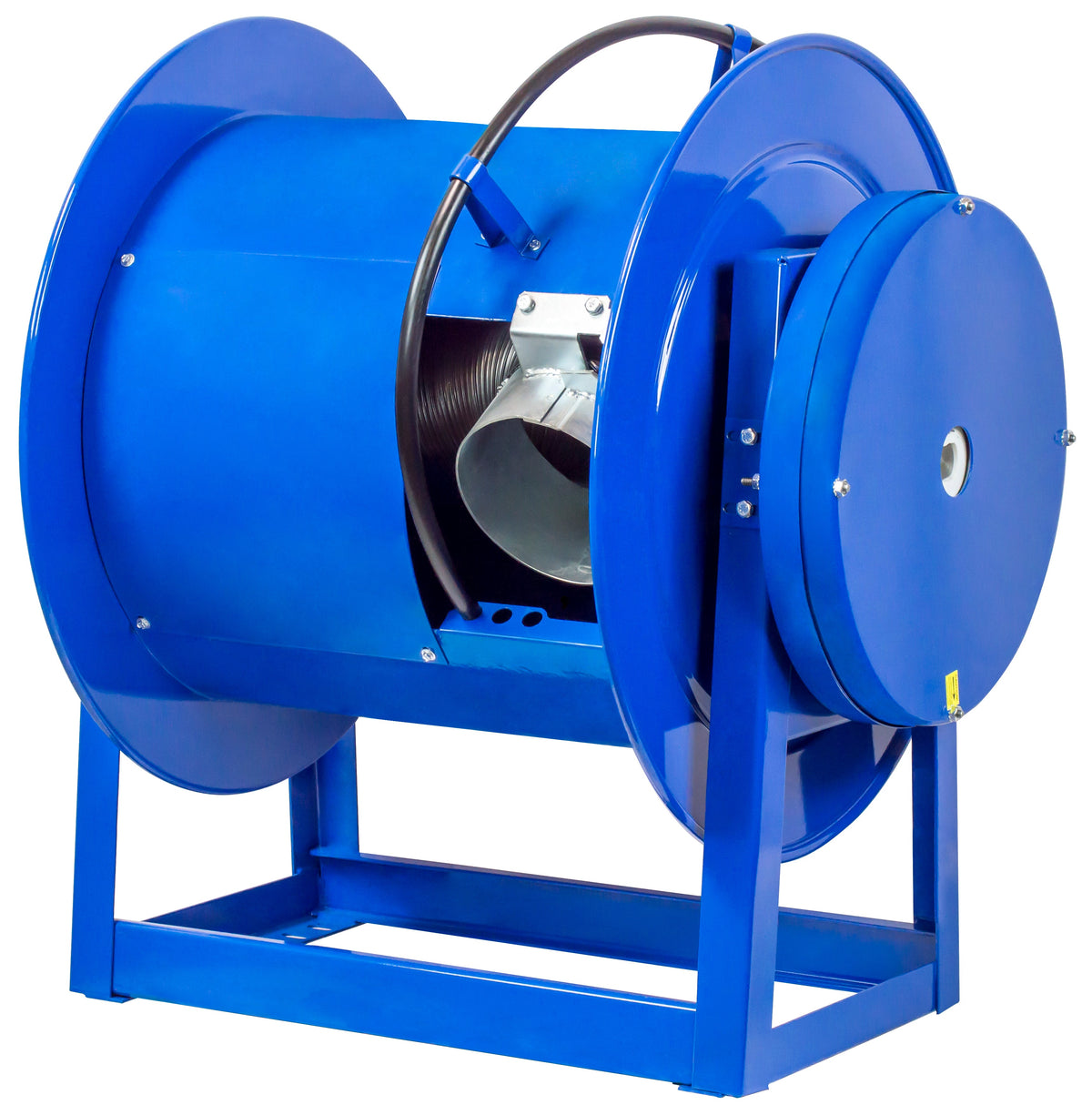

- Access Panel — Easy access panel to the drum for convenient routine maintenance.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|
| 319-424 | 4" | 24 ft | 19" | 28.25 × 29.5 × 24 |
| 319-520 | 5" | 20 ft | 19" | 28.25 × 29.5 × 24 |
| 319-620 | 6" | 20 ft | 19" | 28.25 × 29.5 × 24 |
| 328-440 | 4" | 40 ft | 28" | 37.25 × 29.5 × 24 |
| 328-532 | 5" | 32 ft | 28" | 37.25 × 29.5 × 24 |
| 328-632 | 6" | 32 ft | 28" | 37.25 × 29.5 × 24 |
| 332-536 | 5" | 36 ft | 32" | 41.25 × 29.5 × 24 |
| 332-636 | 6" | 36 ft | 32" | 41.25 × 29.5 × 24 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
300 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
