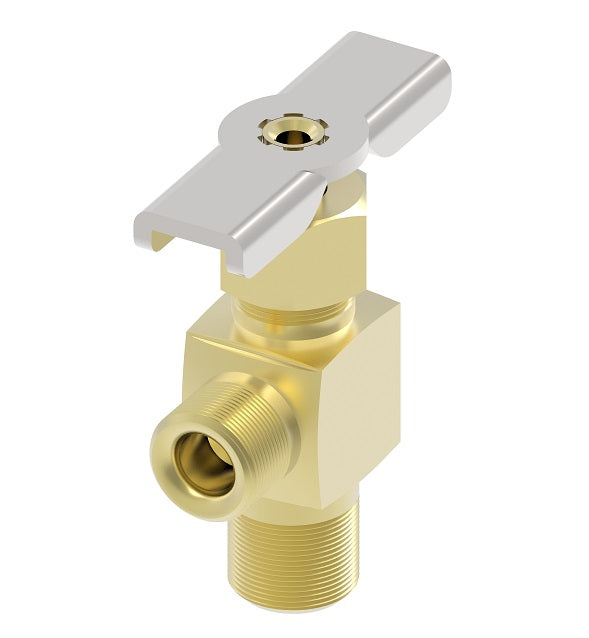

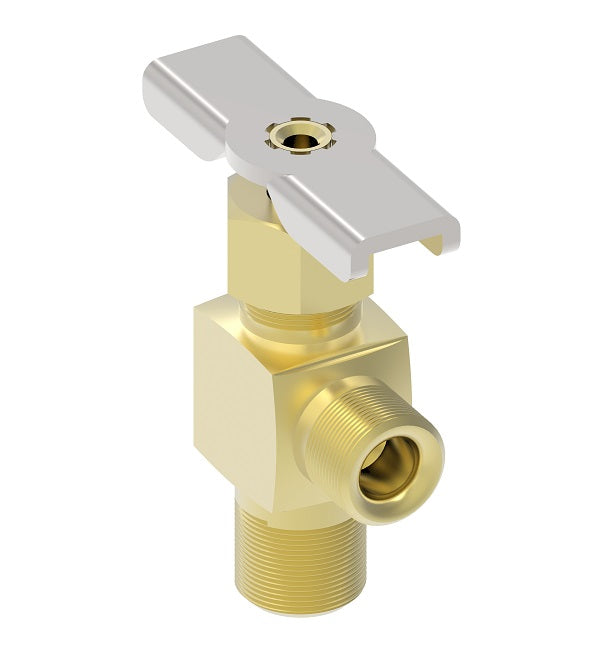

330 by Danfoss | Needle Valve | SAE 45° Flare Angle | 90° Elbow | 3/8" Male SAE 45° Flare x 1/4" Male NPTF | Brass
330 by Danfoss | Needle Valve | SAE 45° Flare Angle | 90° Elbow | 3/8" Male SAE 45° Flare x 1/4" Male NPTF | Brass
330 by Danfoss | Needle Valve | SAE 45° Flare Angle | 90° Elbow | 3/8" Male SAE 45° Flare x 1/4" Male NPTF | Brass

330 by Danfoss | Needle Valve | SAE 45° Flare Angle | 90° Elbow | 3/8" Male SAE 45° Flare x 1/4" Male NPTF | Brass

Sale price$21.82

Aeroquip® by Danfoss
Needle Valve - SAE 45° Flare Angle

In stock
Buy More, Save More!
Quantity Price Each
10–39 $20.51
40–79 $18.55
80+ $16.37
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Male SAE 45 Flare
  • 1/4in Male NPTF
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies, steel handles except where noted.
  • Polyline valves have brass bodies and brass handles.
Pressure:
  • 150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
  • Designed for automotive and industrial use.
  • Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
  • Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.
Brass
Part Number 		Tube OD Male Pipe
Thread		 L M M1 N
320 1/4" 1/8" 1.54" 0.86" 1.07" 0.74"
330 3/8" 1/4" 1.84" 0.90" 1.21" 0.96"
