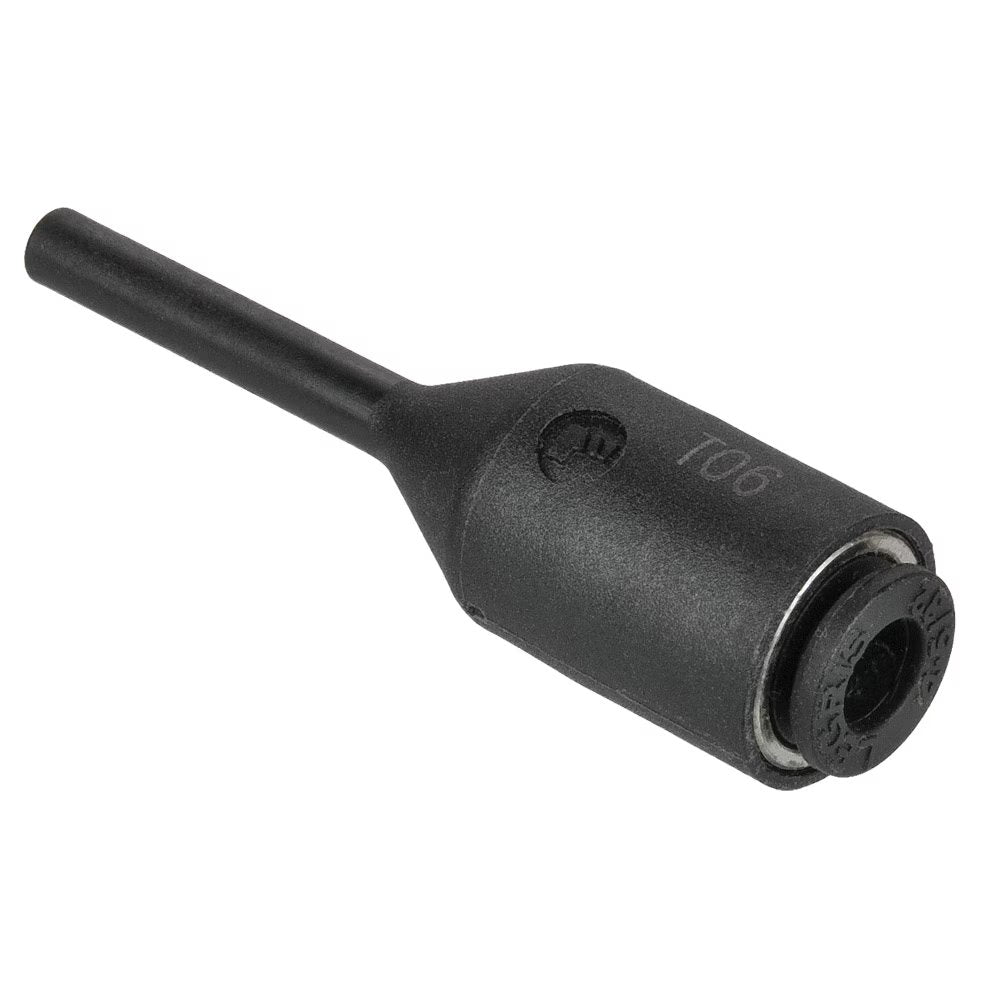

32PLPSP-4-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" to 1/8" Tube Expander | 1.61" Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:32PLPSP Tube Expander
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.13 |
| 40–79 | $25.44 |
| 80+ | $22.45 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||
|---|---|---|---|---|
| Part Number | Tube Size 1 | Tube Size 2 | L | L1 |
| 32PLPSP-4-2 | 1/4" | 1/8" | 1.61" | 1.16" |
| 32PLPSP-4-6M | 1/4" | 6M | 1.75" | 1.02" |
| 32PLPSP-4-4M | 1/4" | 5/32" | 1.61" | 1.14" |
| 32PLPSP-4-3 | 1/4" | 3/16" | 1.61" | 1.00" |
| 32PLPSP-6-4 | 3/8" | 1/4" | 1.58" | 1.00" |
