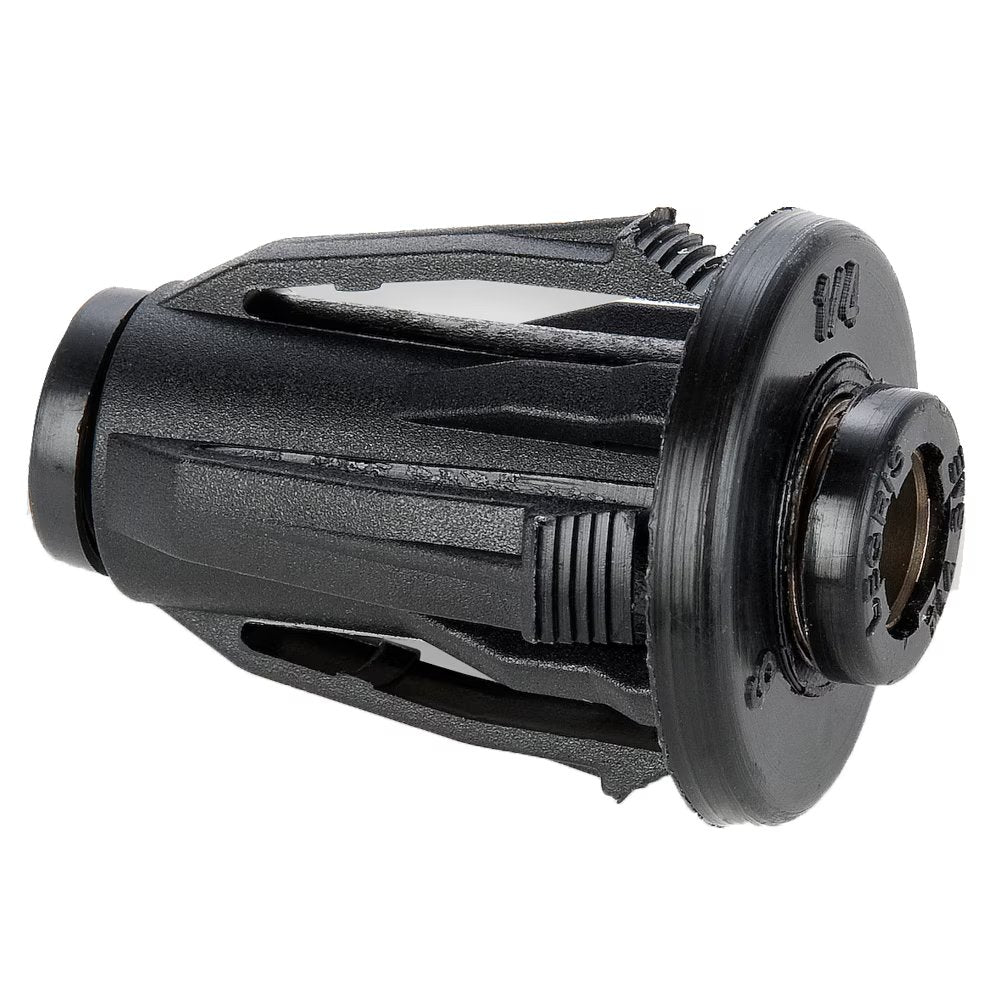

32PLPBHP-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Unions | 3/8" Tube Size | 1.93" Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLPBHP-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Unions | 3/8" Tube Size | 1.93" Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

Sale price$197.03

by Parker Hannifin
Push-to-Connect Fittings:32PLPBHP Plug-in Bulkhead Union

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $185.21
20–59 $167.48
60+ $147.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 32PLPBHP Series
Shape:

Straight

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match
Installation:
  1. Mark out the fixing hole
  2. Make hole in panel
  3. Simply push the fitting into place
  4. To complete the installation
  5. To identify circuits simply remove the black release button and replace with colored one
32PLPBHP_Series_Table_Photo
Part Number Tube Size L1 L2 T
32PLPBHP-4 1/4" .26" 1.240" .75"
32PLPBHP-6 3/8" .30" 1.630" 1.12"
