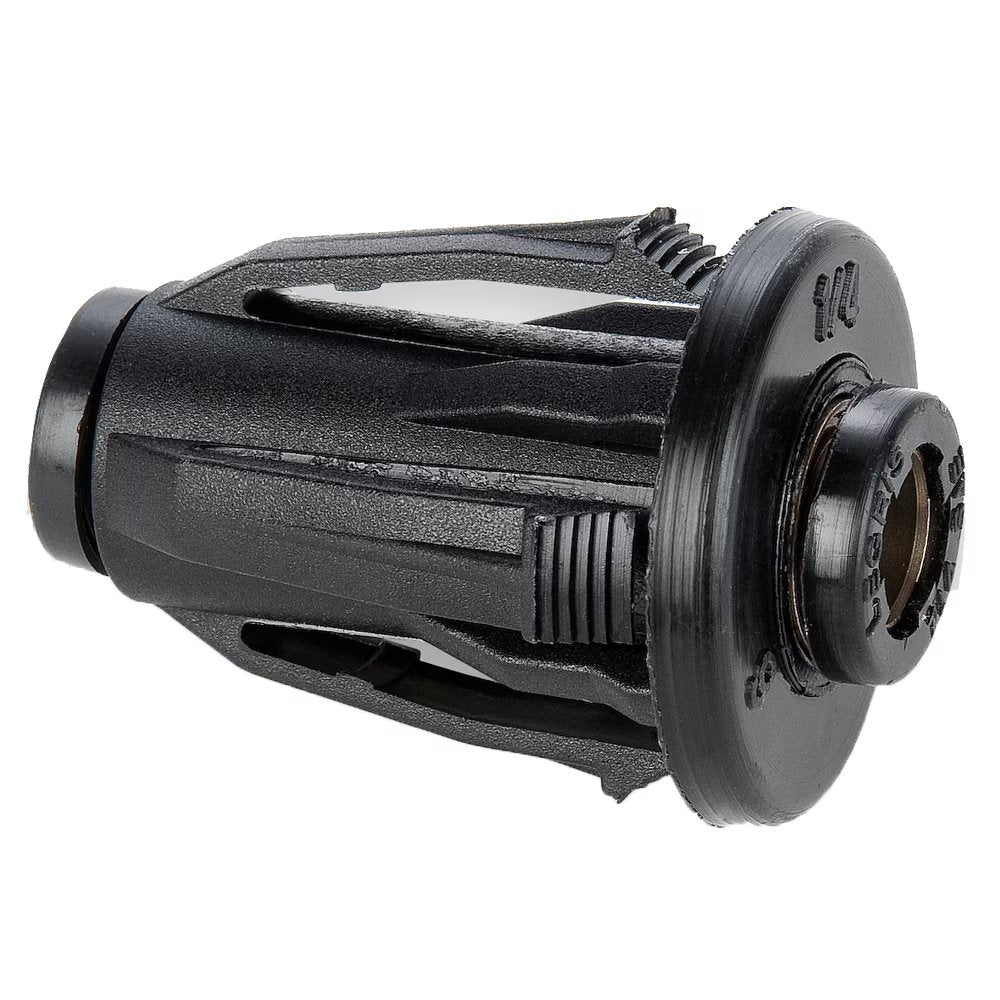

32PLPBHP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Unions | 1/4" Tube Size | 1.50" Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLPBHP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Unions | 1/4" Tube Size | 1.50" Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

Minimum Order Quantity: 50 Units

Sale price$78.88

by Parker Hannifin
Push-to-Connect Fittings:32PLPBHP Plug-in Bulkhead Union

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $74.15
30–59 $67.05
60+ $59.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • 32PLPBHP Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Installation:
  1. Mark out the fixing hole
  2. Make hole in panel
  3. Simply push the fitting into place
  4. To complete the installation
  5. To identify circuits simply remove the black release button and replace with colored one
32PLPBHP_Series_Table_Photo
Part Number Tube Size L1 L2 T
32PLPBHP-4 1/4" .26" 1.240" .75"
32PLPBHP-6 3/8" .30" 1.630" 1.12"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
