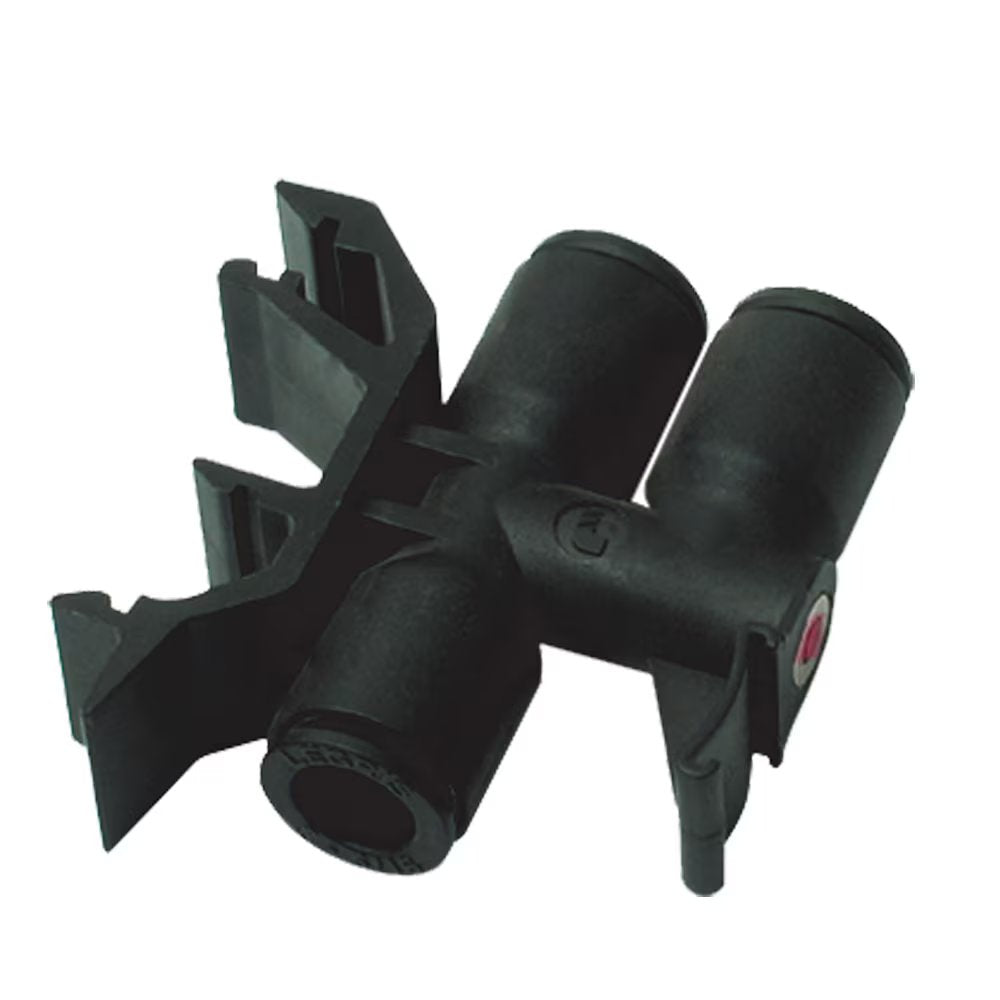

32PLPDRC-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 6mm 3-Tube Rail Connector | 39.5 Length (L) | Glass-Reinforced Nylon | Pack of 5

32PLPDRC-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 6mm 3-Tube Rail Connector | 39.5 Length (L) | Glass-Reinforced Nylon | Pack of 5

Sale price$145.75

by Parker Hannifin
Push-to-Connect Fittings:32PLPDRC Connector for 3 Tubes

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $137.01
20–59 $123.89
60+ $109.31
Discounts applied in cart/checkout.

Product Data:

Series:
  • 32PLPDRC Series
Shape:

No Orientation

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size H K L N
32PLPDRC-4M 4 mm 36.5 mm 11.0 mm 39.5 mm -
32PLPDRC-6M 6 mm 36.5 mm 11.0 mm 39.5 mm -
32PLPDRC-8M 8 mm 46.0 mm 13.0 mm 14.5 mm -
