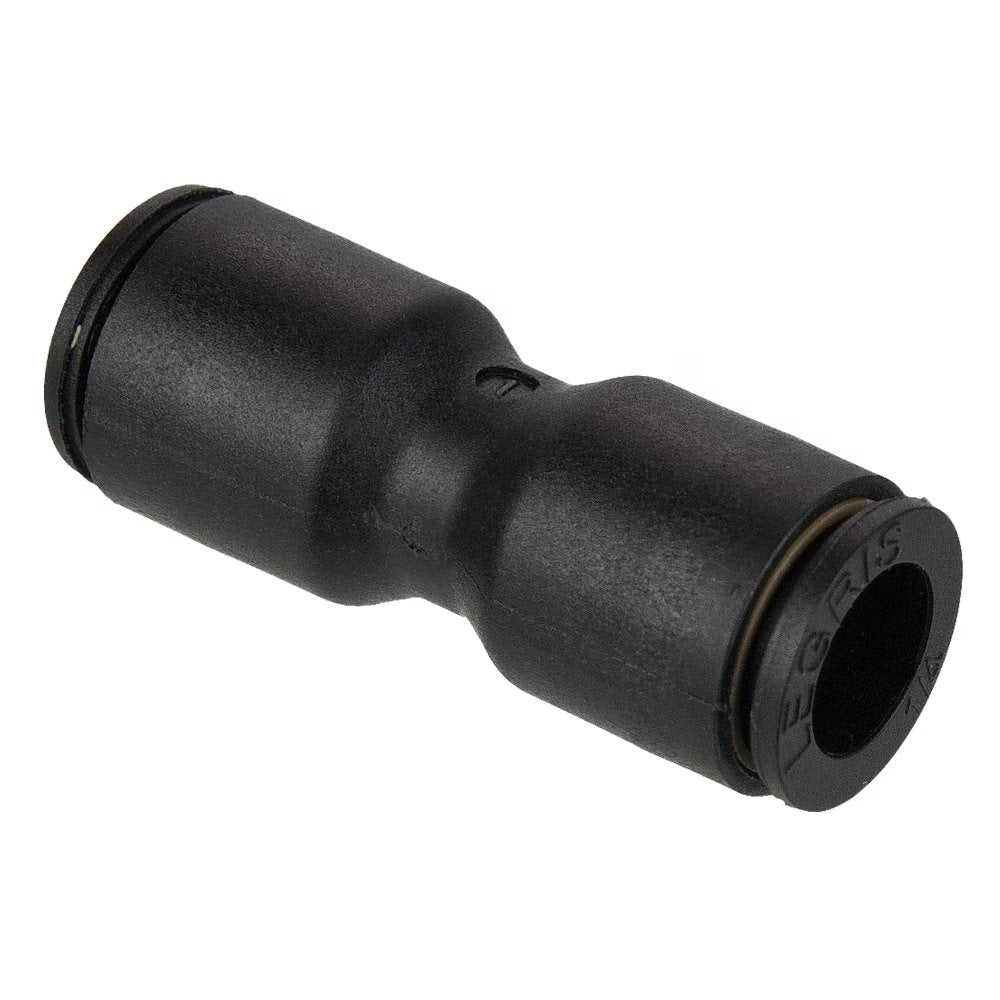

32PLP-12M-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 12mm to 10mm Unequal Union | 50.5mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLP-12M-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Tube to Tube Fittings | 12mm to 10mm Unequal Union | 50.5mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Sale price$117.07

by Parker Hannifin
Push-to-Connect Fittings:32PLP Unequal Union

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $110.05
20–59 $99.51
60+ $87.80
Discounts applied in cart/checkout.

Product Data:

Series:
  • 32PLP Series
Shape:

Straight

Ends Configuration:
  • 12mm Push-to-Connect
  • 10mm Push-to-Connect
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L
32PLP-3M-4M 3 mm 4 mm 25.0 mm
32PLP-6M-4M 6 mm 4 mm 28.0 mm
32PLP-8M-4M 8 mm 4 mm 28.0 mm
32PLP-8M-6M 8 mm 6 mm 38.0 mm
32PLP-10M-6M 10 mm 6 mm 42.0 mm
32PLP-10M-8M 10 mm 8 mm 42.0 mm
32PLP-12M-8M 12 mm 8 mm 50.5 mm
32PLP-12M-10M 12 mm 10 mm 50.5 mm
32PLP-12M-14M 12 mm 14 mm 56.0 mm
32PLP-12M-16M 16 mm 12 mm 61.0 mm
