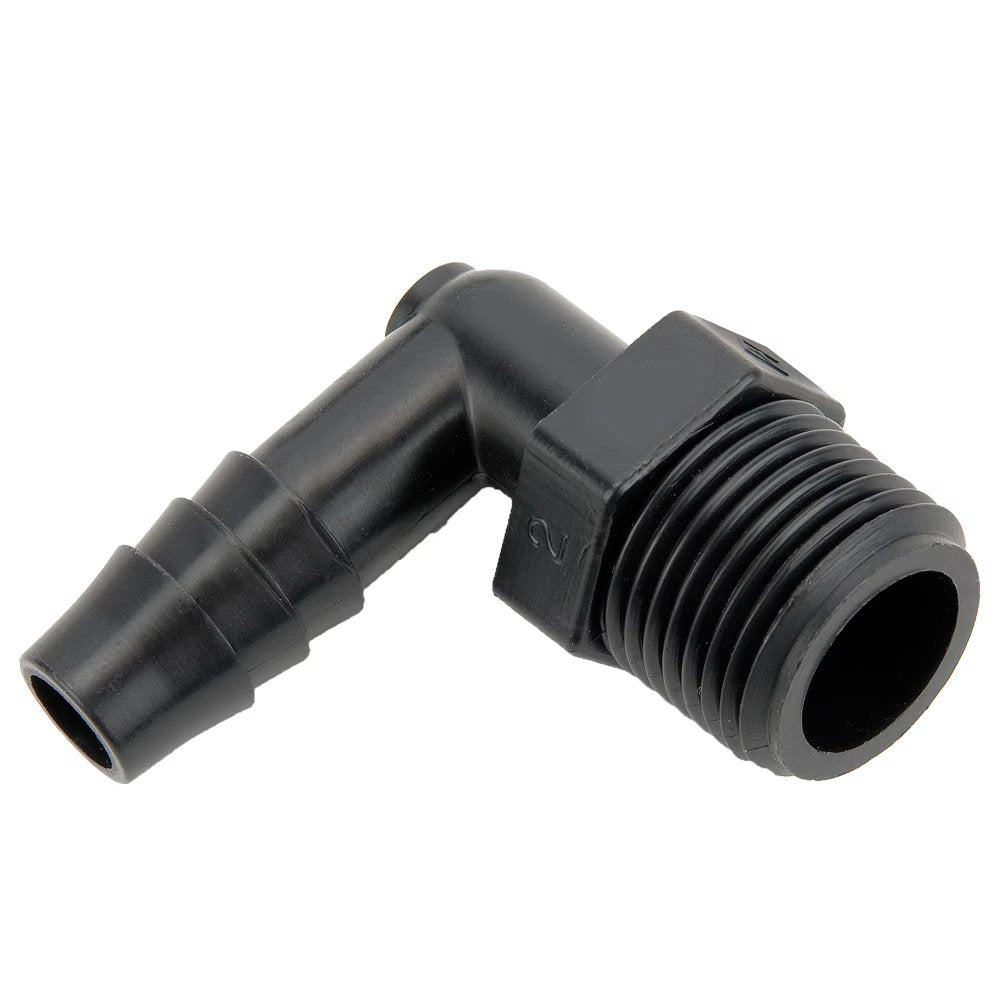

329HB-10-8PP by Parker | Barbed Fitting | 5/8" Hose Barb x 1/2" Male NPT Thread | 7/8" Hex | 90° Elbow | Black | Polypropylene

329HB-10-8PP by Parker | Barbed Fitting | 5/8" Hose Barb x 1/2" Male NPT Thread | 7/8" Hex | 90° Elbow | Black | Polypropylene

Minimum Order Quantity: 5 Units

Sale price$2.84

by Parker Hannifin
Barbed Fittings:329HB - male elbow fractional inch barb to NPT
Buy More, Save More!
Quantity Price Each
20–39 $2.67
40–79 $2.41
80+ $2.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • 329HB Series
Shape:

90° Elbow

Ends Configuration:
  • 5/8in Hose Barb
  • 1/2in Female NPT
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
Part Number (Black Polypropylene) ID ØD (NPT) ØD C M N D
329HB-10-8PP 5/8" 1/2" .68" 7/8" 1.30" 1.73" .48"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
