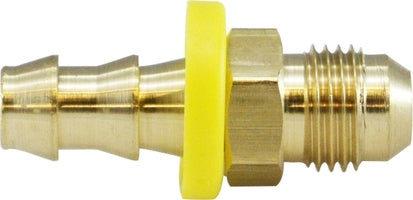

32907 by Midland | Push On Hose Barb Fitting | 37° JIC Flare | 7/8-14 UNF Thread | 5/8" Hose ID x 5/8" Male JIC | Adapter | Brass
Midland Industries
Brass Fitting - Push On Barb Fitting - 37° Male JIC Flare Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.05 |
| 40–79 | $19.94 |
| 80+ | $17.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI |
Advantages: | Easy assembly. No clamps needed. |
|---|---|---|---|
| SAE Rating: | N/A | Lead Free: | No |
| Assembly Instructions: | |||
|---|---|---|---|
|
|||
| Disassembling Instructions: | |||
|
 |
|---|
| Crossover Series: | |
|---|---|
| 29PO11 | 129PO6 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Hose ID x Male 37° JIC Flare | UNF Thread | A | B | Hex | Approx. Weight (Lbs.) |
| 32900 (30-900) |
1/4" x 1/4" | 7/16-20 | 1.57" | 0.84" | 0.50" | 0.04 |
| 32901 (32-901) |
1/4" x 5/16" | 1/2-20 | 1.60" | 0.83" | 0.56" | 0.04 |
| 32906 (32-906) |
1/4" x 3/8" | 9/16-18 | 1.63" | 0.77" | 0.62" | 0.05 |
| 32902 (32-902) |
3/8" x 3/8" | 9/16-18 | 1.78" | 0.97" | 0.62" | 0.06 |
| 32903 (32-903) |
1/2" x 1/2" | 3/4-16 | 1.97" | 0.97" | 0.75" | 0.10 |
| 32907 (32-907) |
5/8" x 5/8" | 7/8-14 | 2.62" | 1.50" | 0.93" | 0.19 |
| 32905 (32-905) |
3/4" x 3/4" | 1-1/16-12 | 2.79" | 1.50" | 1.12" | 0.29 |
