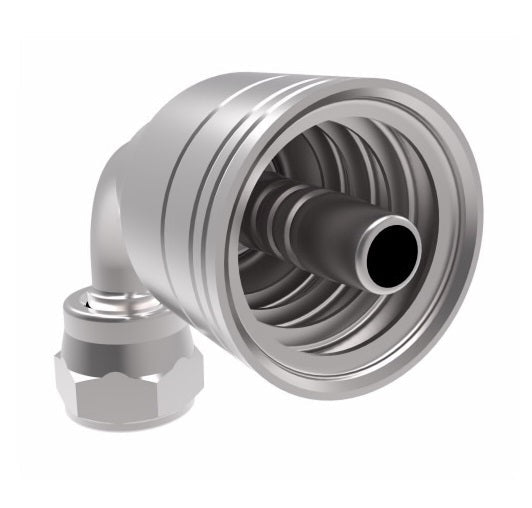

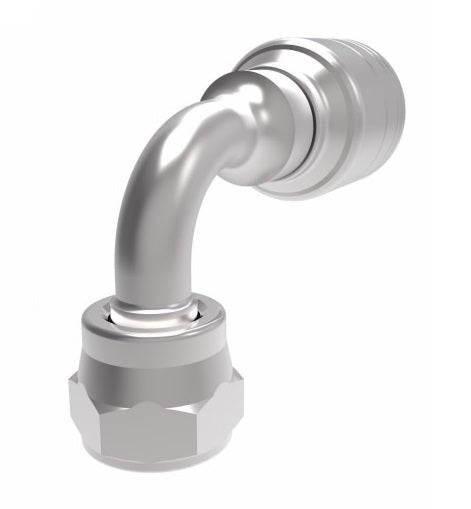

32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

32710E-670 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 90° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

Sale price$35.60

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female 37° JIC Swivel - 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $33.46
40–79 $30.26
80+ $26.70
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • 327 'E' Series
Shape:

90 Degree
Applications:
  • General purpose low and medium pressure hydraulics.
Pressure:
  • Determined by working pressure for hose and hose size.
Material:
  • Low carbon steel
  • Plating: Clear trivalent chromate
Compatible Hose:
  • GH100
Steel
Part Number		 Hose I.D. Tube Size Thread Size A H Hose Cut-Off
Factor		 Hole Dia. Hex
1
32706E-666 -06 -06 9/16-18 2.21" 0.84" 1.22" 0.24" 11/16"
32708E-668 -08 -08 3/4-16 2.59" 1.09" 1.42" 0.37" 7/8"
32710E-670 -10 -10 7/8-14 2.7" 1.19" 1.55" 0.46" 1"
32712E-672 -12 -12 1-1/6-12 3.36" 1.8" 2.17" 0.58" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
