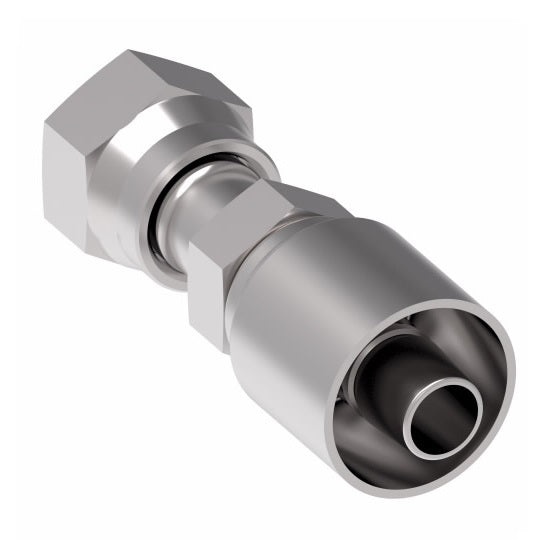

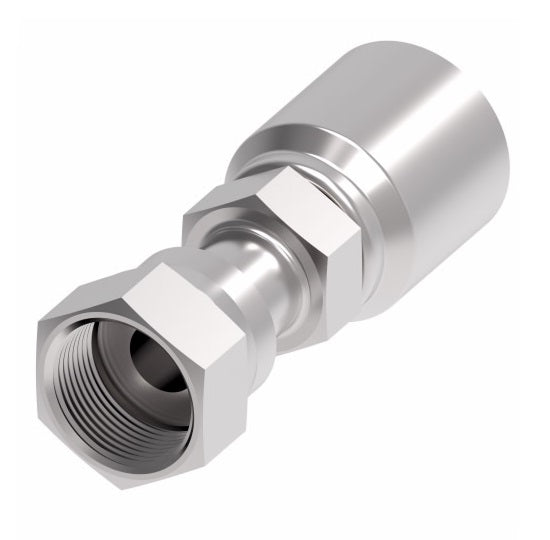

32706E-S66 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel
32706E-S66 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel
32706E-S66 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel

32706E-S66 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -06 Female O-Ring Face Seal x -06 Hose Barb | Steel

Sale price$16.71

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female O-Ring Face Seal - Straight
Buy More, Save More!
Quantity Price Each
10–39 $15.71
40–79 $14.20
80+ $12.53
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Weatherhead
Series:
  • 327 'E' Series
Shape:

Straight
Applications:
  • General purpose low and medium pressure hydraulics.
Pressure:
  • Determined by working pressure for hose and hose size.
Material:
  • Low carbon steel
  • Plating: Clear trivalent chromate
Compatible Hose:
  • GH100
Steel
Part Number		 Hose I.D. Tube Size Thread Size A H Hose Cut-Off
Factor		 Hole Dia. Hex
1
32706E-S66 -06 -06 11/16-16 2.23" 1.24" 0.26" 13/16" 11/16"
32708E-S68 -08 -08 13/16-16 2.67" 1.5" 0.38" 15/16" 7/8"
32710E-S70 -10 -10 1-14 2.76" 1.61" 0.48" 1-1/8" 15/16"
32712E-S72 -12 -12 1-3/16-12 2.91" 1.72" 0.61" 1-3/8" 1-1/8"

Note: Drawings may differ from actual parts.
