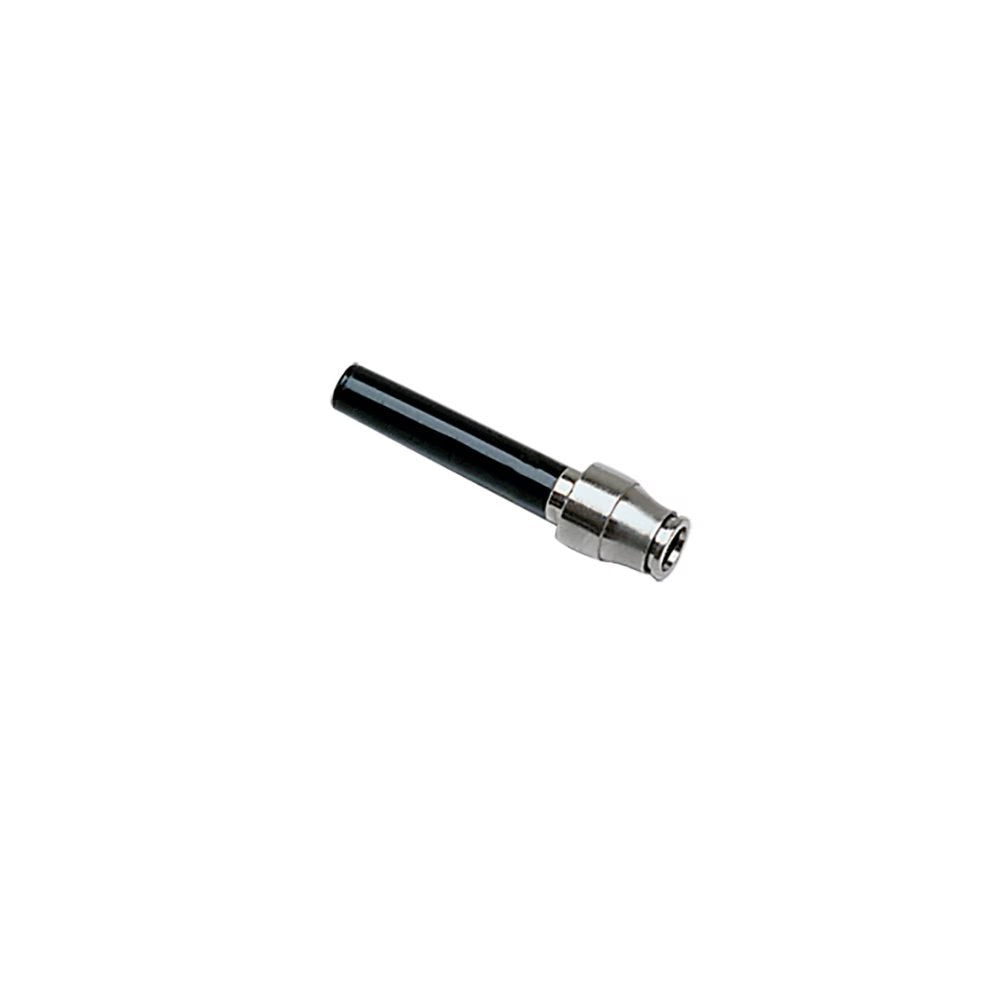

3266 03 04 by Parker | Legris Plug-In Reducer | 3 mm Tube Size (D) x 4 mm Tube Size (D1) | 28 mm Length | Straight | Nickel-Plated Brass | Pack of 10

$100.05

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3266 Plug-In Reducer

Package Quantity: 10 Units

Quantity:

Buy More, Save More!
Quantity	Price Each
20–29	$94.05
30–59	$85.04
60+	$75.04

Discounts applied in cart/checkout.

Product Data:

Series:

3266 Series

Shape:

Straight

Ends Configuration:

3mm Tube Stem
4mm Push-to-Connect

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -15°C to +80°C Tightening Torque (daN.m): 0.01 to .1
Advantages:	Optimization of equipment: weight, small dimensions Nickel-plated brass components for better impact and corrosion resistance
Regulations:	ISO 14743 PED RoHS ATEX (please consult us) REACH
Component Materials:	Body: Chemical nickel-plated brass Adaptor: Chemical nickel-plated brass Protection ring: Electroless nickel-plated brass Collet: Chemical nickel-plated brass Seal: PTFE O-Ring: NBR


Part Number	ØD	ØD1	G	L	L1	Kg
3266 03 04	3 mm	4 mm	6 mm	28 mm	19 mm	.001 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division

3266 03 04 by Parker | Legris Plug-In Reducer | 3 mm Tube Size (D) x 4 mm Tube Size (D1) | 28 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Product Data:
