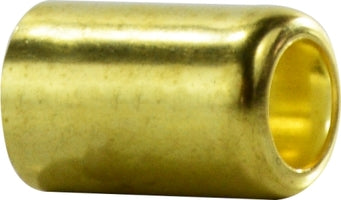

32574 by Midland | Hose Ferrule: #CC | 0.775" ID | 0.531" Length | Brass
Minimum Order Quantity: 10 Units
Midland Industries
Hose Ferrules - Brass
Brass Hose Ferrules offer an alternative to hose clamps. After crimping, the ferrule will provide a permanent clamping force on both the hose and fitting.
ASTMB36 Alloy 268
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.37 |
| 40–79 | $1.24 |
| 80+ | $1.10 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
Specifications and Approvals:
 |
|||||
|---|---|---|---|---|---|
| Part Number | Ferrule # | ID | Length | Pierce | Gauge |
| 32500 (32-500) |
6231 | 0.330" | 0.490" | 0.250" | 0.020" |
| 32501 (32-501) |
833 | 0.358" | 0.500" | 0.265" | 0.020" |
| 32503 (32-503) |
833B | 0.375" | 0.718" | 0.265" | 0.025" |
| 32502 (32-502) |
622 | 0.380" | 0.500" | 0.265" | 0.020" |
| 32550 (32-550) |
619 | 0.400" | 0.470" | 0.270" | 0.020" |
| 32504 (32-504) |
620 | 0.410" | 0.500" | 0.265" | 0.020" |
| 32551 (32-551) |
769R | 0.450" | 0.562" | 0.343" | 0.020" |
| 32552 (32-552) |
4750 | 0.478" | 0.687" | 0.328" | 0.025" |
| 32553 (32-553) |
624R | 0.500" | 0.500" | 0.343" | 0.020" |
| 32506 (32-506) |
7322A | 0.500" | 1.000" | 0.343" | 0.025" |
| 32554 (32-554) |
7322 | 0.500" | 1.000" | 0.328" | 0.025" |
| 32555 (32-555) |
625 | 0.525" | 0.47" | 0.36" | 0.020" |
| 32517 (32-517) |
625A | 0.525" | 0.560" | 0.360" | 0.020" |
| 32556 (32-556) |
7323 | 0.525" | 1.000" | 0.375" | 0.025" |
| 32521 (32-521) |
9974 | 0.525" | 1.000" | 0.437" | 0.025" |
| 32557 (32-557) |
7324 | 0.531" | 1.000" | 0.375" | 0.025" |
| 32558 (32-558) |
626 | 0.550" | 0.484" | 0.375" | 0.020" |
| 32507 (32-507) |
3588 | 0.56" | 0.750" | 0.375" | 0.020" |
| 32559 (32-559) |
7325 | 0.56" | 1.000" | 0.437" | 0.025" |
| 32561 (32-561) |
7326 | 0.593" | 1.000" | 0.437" | 0.025" |
| 32526 (32-526) |
II | 0.625" | 0.500" | 0.500" | 0.020" |
| 32564 (32-564) |
7327 | 0.625" | 1.000" | 0.437" | 0.025" |
| 32565 (32-565) |
HH | 0.650" | 0.500" | 0.500" | 0.020" |
| 32566 (32-566) |
7328 | 0.656" | 1.000" | 0.437" | 0.025" |
| 32567 (32-567) |
GG | 0.675" | 0.515" | 0.500" | 0.020" |
| 32568 (32-568) |
7329 | 0.69" | 1.000" | 0.500" | 0.025" |
| 32570 (32-570) |
7330 | 0.718" | 1.000" | 0.500" | 0.025" |
| 32508 (32-508) |
7330A | 0.718" | 1.000" | 0.625" | 0.025" |
| 32571 (32-571) |
EE | 0.725" | 0.530" | 0.500" | 0.020" |
| 32572 (32-572) |
DD | 0.750" | 0.531" | 0.500" | 0.020" |
| 32510 (32-510) |
7331B | 0.750" | 1.000" | 0.500" | 0.025" |
| 32573 (32-573) |
7331 | 0.750" | 1.000" | 0.625" | 0.025" |
| 32574 (32-574) |
CC | 0.775" | 0.531" | 0.500" | 0.020" |
| 32533 (32-533) |
7332B | 0.781" | 1.000" | 0.500" | 0.025" |
| 32575 (32-575) |
7332 | 0.781" | 1.000" | 0.625" | 0.025" |
| 32576 (32-576) |
BB | 0.800" | 0.546" | 0.562" | 0.020" |
| 32577 (32-577) |
7333 | 0.812" | 1.000" | 0.625" | 0.025" |
| 32578 (32-578) |
AA | 0.825" | 0.546" | 0.562" | 0.020" |
| 32535 (32-535) |
- | 0.850" | 0.968" | 0.687" | 0.025" |
| 32579 (32-579) |
7244 | 0.875" | 0.843" | 0.687" | 0.025" |
| 32539 (32-539) |
5029A | 0.900" | 0.875" | 0.687" | 0.025" |
| 32580 (32-580) |
7113 | 0.925" | 0.968" | 0.750" | 0.025" |
| 32543 (32-543) |
5028A | 0.975" | 0.843" | 0.687" | 0.025" |
| 32545 (32-545) |
5235A | 1.000" | 0.843" | 0.687" | 0.025" |
| 32549 (32-549) |
7145A | 1.050" | 0.843" | 0.687" | 0.025" |
| 32584 (32-584) |
5027 | 1.100" | 0.843" | 0.812" | 0.025" |
| 32586 (32-586) |
7104A | 1.15" | 0.843" | 0.875" | 0.025" |
| 32588 (32-588) |
7088A | 1.175" | 0.875" | 0.875" | 0.025" |
| 32590 (32-590) |
875L | 1.200" | 0.843" | 0.875" | 0.025" |
| 32591 (32-591) |
7291 | 1.225" | 0.968" | 0.875" | 0.025" |
| 32592 (32-592) |
7255 | 1.25" | 0.968" | 1.000" | 0.04" |
| 32596 (32-596) |
8000 | 1.425" | 0.875" | 1.062" | 0.025" |
| 32597 (32-597) |
1500 | 1.50" | 0.875" | 1.125" | 0.025" |
