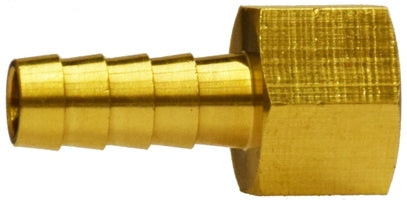

32317 by Midland | 1/8" Hose ID x 1/4" Female NPTF | Rigid Adapter | Brass
Midland Industries
Brass Fitting - Hose Barb - Rigid Female Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.05 |
| 40–79 | $7.28 |
| 80+ | $6.42 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | N/A | Used With: | These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | N/A |
| Vibration: | N/A | Temperature Range: | -40°F to +160°F at 150 PSI maximum. |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. | Lead Free: | N/A |
| Assembly Instructions: |
1. Cut hose cleanly and squarely to length. 2. Slide clamp on hose. 3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex. 4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning. |
||
| Hose Size | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|---|---|
| A | 1/4" | 1/4" | 1/4" | 1/8" | 1/8" | 1/8" | 1/8" |
| Crossover Series: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 129F | 29F | 209A | 128 | 29A | 29F | 126HB | 126 | FPB | 105B-2 | KF-RS | 104 | 144 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose I.D. x Female NPTF | A | B | Hex | Approx. Weight (Lbs.) |
| 32050 (32-050) |
1/8" x 1/8" | 0.96" | 0.46" | 0.50" | 0.02 |
| 32317 (32-317) |
1/8" x 1/4" | 1.15" | 0.46" | 0.62" | 0.04 |
| 32051 (32-051) |
3/16" x 1/8" | 1.10" | 0.68" | 0.50" | 0.02 |
| 32062 (32-062) |
3/16" x 1/4" | 1.44" | 0.75" | 0.62" | 0.04 |
| 32052 (32-052) |
1/4" x 1/8" | 1.35" | 0.93" | 0.50" | 0.02 |
| 32053 (32-053) |
1/4" x 1/4" | 1.60" | 0.97" | 0.62" | 0.06 |
| 32054 (32-054) |
1/4" x 3/8" | 1.65" | 1.03" | 0.75" | 0.04 |
| 32441 (32-441) |
1/4" x 1/2" | 1.66" | 0.97" | 0.93" | 0.08 |
| 32055 (32-055) |
5/16" x 1/8" | 1.47" | 0.97" | 0.56" | 0.04 |
| 32056 (32-056) |
5/16" x 1/4" | 1.66" | 0.97" | 0.62" | 0.04 |
| 32318 (32-318) |
5/16" x 3/8" | 1.66" | 0.97" | 0.75" | 0.06 |
| 32320 (32-020) |
5/16" x 1/2" | 1.67" | 0.96" | 0.93" | 0.08 |
| 32057 (32-057) |
3/8" x 1/8" | 1.47" | 0.97" | 0.56" | 0.04 |
| 32058 (32-058) |
3/8" x 1/4" | 1.61" | 0.97" | 0.62" | 0.06 |
| 32059 (32-059) |
3/8" x 3/8" | 1.63" | 1.00" | 0.81" | 0.08 |
| 32063 (32-063) |
3/8" x 1/2" | 1.72" | 0.94" | 0.93" | 0.12 |
| 32442 (32-442) |
3/8" x 3/4" | 1.97" | 0.97" | 1.18" | 0.20 |
| 32064 (32-064) |
1/2" x 1/4" | 1.66" | 0.96" | 0.62" | 0.08 |
| 32060 (32-060) |
1/2" x 3/8" | 1.66" | 0.97" | 0.75" | 0.08 |
| 32061 (32-061) |
1/2" x 1/2" | 1.76" | 0.96" | 0.93" | 0.12 |
| 32443 (32-443) |
1/2" x 3/4" | 1.97" | 0.97" | 1.18" | 0.26 |
| 32444 (32-444) |
5/8" x 3/8" | 1.66" | 0.97" | 0.75" | 0.08 |
| 32445 (32-445) |
5/8" x 1/2" | 1.66" | 0.97" | 0.93" | 0.10 |
| 32446 (32-446) |
5/8" x 3/4" | 1.97" | 0.97" | 1.18" | 0.21 |
| 32447 (32-447) |
3/4" x 1/2" | 1.88" | 1.19" | 0.93" | 0.13 |
| 32065 (32-065) |
3/4" x 3/4" | 2.19" | 1.21" | 1.18" | 0.22 |
| 32049 (32-049) |
1" x 3/4" | 2.19" | 1.19" | 1.18" | 0.26 |
| 32321 (32-321) |
1" x 1" | 2.32" | 1.19" | 1.44" | 0.35 |
| 32448 (32-448) |
1-1/4" x 1" | 2.32" | 1.19" | 1.43" | 0.44 |
