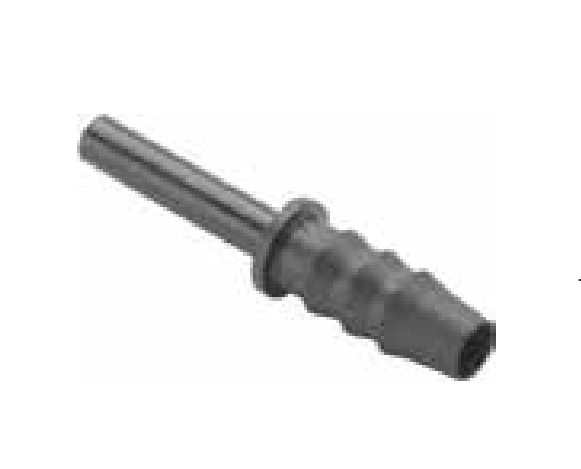

322PLPSP-6M-5M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 6mm OD 1 | 5.0mm OD 2 | 7.0mm Barb | Barbed Connector | 39.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

322PLPSP-6M-5M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 6mm OD 1 | 5.0mm OD 2 | 7.0mm Barb | Barbed Connector | 39.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Sale price$40.37

by Parker Hannifin
Push-to-Connect Fittings:322PLPSP Barbed Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $37.95
40–79 $34.31
80+ $30.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • 322PLPSP Series
Shape:

Straight

Ends Configuration:
  • 7mm Hose Barb
  • 6mm Tube Stem
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number OD 1 OD 2 OD 3 L L1 L2
322PLPSP-4M-5M 4 mm 5.0 mm 7.0 mm 37.0 mm 25.0 mm 17.0 mm
322PLPSP-6M-5M 6 mm 5.0 mm 7.0 mm 39.0 mm 25.0 mm 17.0 mm
322PLPSP-8M-8M 8 mm 8.0 mm 10.0 mm 44.5 mm 26.0 mm 22.0 mm
322PLPSP-10M-6M 10 mm 6.3 mm 8.0 mm 45.0 mm 24.5 mm 17.0 mm
322PLPSP-10M-8M 10 mm 8.0 mm 10.0 mm 50.0 mm 29.5 mm 22.0 mm
322PLPSP-12M-8M 12 mm 8.0 mm 10.0 mm 50.0 mm 26.0 mm 22.0 mm
322PLPSP-12M-10M 12 mm 10.0 mm 12.0 mm 48.5 mm 25.5 mm 22.5 mm
322PLPSP-12M-12M 12 mm 12.5 mm 14.5 mm 57.0 mm 34.0 mm 22.5 mm
322PLPSP-14M-12M 14 mm 12.5 mm 14.5 mm 59.5 mm 34.5 mm 22.5 mm
