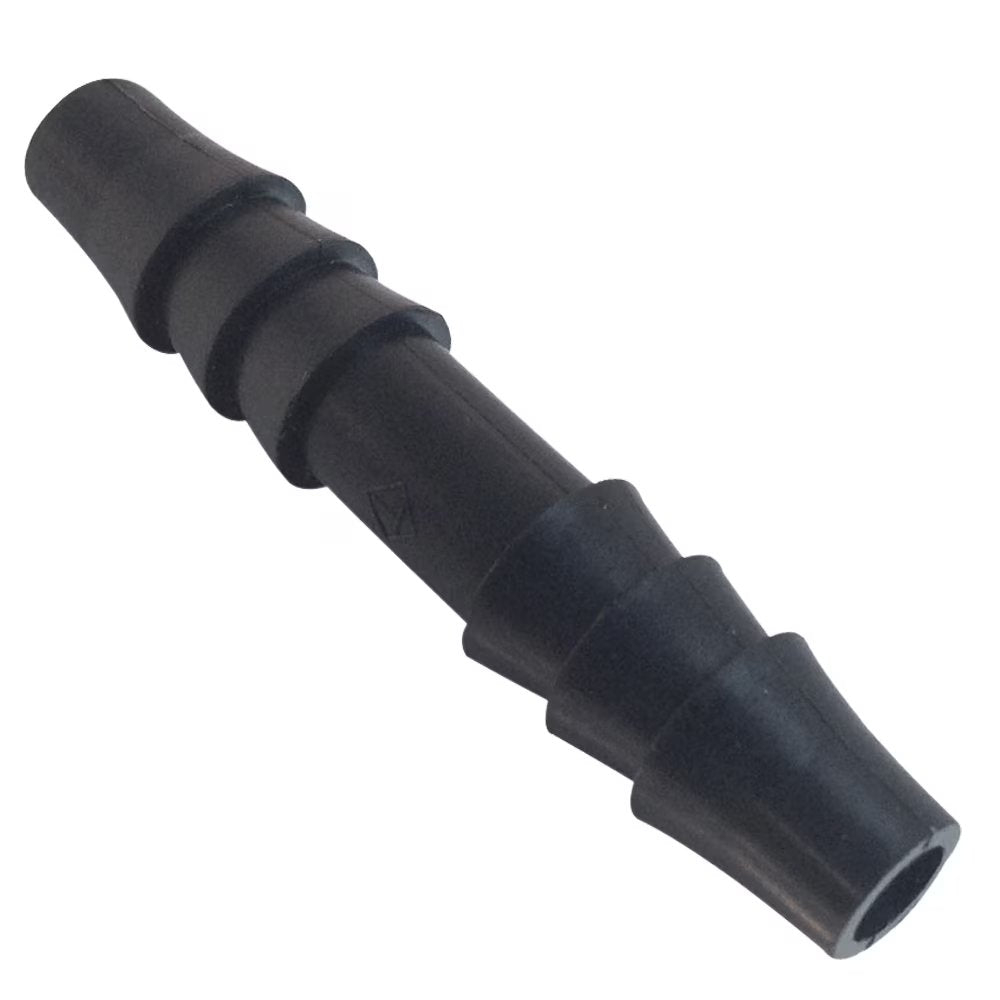

322HB-6-4PP by Parker | Tube to Tube Fitting | 3/8" Union Barb x 1/4" Barb | 1.61" Length | Straight | Black | Polypropylene
by Parker Hannifin
Par-Barb® Fittings:Union Connector 322HB
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $0.45 |
| 40–79 | $0.41 |
| 80+ | $0.36 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | Tube Or Hose ID 1 | Tube Or Hose ID 2 | OD 1 | OD 2 | L | Flow Diameter (D) |
| 322HB-3N | 322HB-3PP | 3/16" | 3/16" | .25" | .25" | 1.61" | .12" |
| 322HB-4-3N | 322HB-4-3PP | 1/4" | 3/16" | .31" | .25" | 1.61" | .13" |
| 322HB-4N | 322HB-4PP | 1/4" | 1/4" | .31" | .31" | 1.61" | .16" |
| 322HB-5N | 322HB-5PP | 5/16" | 5/16" | .37" | .37" | 1.61" | .22" |
| 322HB-6-4N | 322HB-6-4PP | 3/8" | 1/4" | .43" | .31" | 1.61" | .15" |
| 322HB-6N | 322HB-6PP | 3/8" | 3/8" | .43" | .43" | 1.61" | .25" |
| 322HB-8-4N | 322HB-8-4PP | 1/2" | 1/4" | .55" | .31" | 1.73" | .15" |
| 322HB-8-6N | 322HB-8-6PP | 1/2" | 3/8" | .55" | .43" | 1.73" | .25" |
| 322HB-8N | 322HB-8PP | 1/2" | 1/2" | .56" | .56" | 1.74" | .38" |
| 322HB-10-6N | 322HB-10-6PP | 5/8" | 3/8" | .66" | .43" | 1.73" | .25" |
| 322HB-10-8N | 322HB-10-8PP | 5/8" | 1/2" | .66" | .55" | 1.73" | .37" |
| 322HB-10N | 322HB-10PP | 5/8" | 5/8" | .67" | .67" | 1.73" | .47" |
| 322HB-12N | 322HB-12PP | 3/4" | 3/4" | .80" | .80" | 2.97" | .58" |
| 322HB-16N | - | 1" | 1" | 1.08" | 1.08" | 3.12" | .82" |
