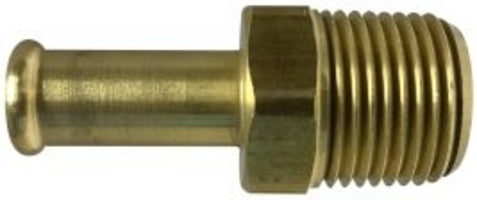

32182 by Midland | Fuel Hose Barb | Bubble Barb | 5/8" Hose ID x 3/8" Male Pipe | Adapter | Brass
Midland Industries
Brass Fitting - Fuel Hose Barb - Bubble Barb Male Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.79 |
| 40–79 | $7.95 |
| 80+ | $7.01 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. | Used With: | Use with fuel hose SAE 30R7 & SAE 30R9. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | N/A |
| Vibration: | N/A | Temperature Range: | N/A |
| Tolerance: | N/A | Lead Free: | N/A |
| Advantages: | Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost. | ||
| Part Number | Hose ID | Male NPT Thread |
|---|---|---|
| 32176 (32-176) |
3/8" | 3/8" |
| 32177 (32-177) |
1/2" | 1/4" |
| 32178 (32-178) |
1/2" | 3/8" |
| 32179 (32-179) |
1/2" | 1/2" |
| 32182 (32-182) |
5/8" | 3/8" |
| 32183 (32-183) |
5/8" | 1/2" |
| 32184 (32-184) |
3/4" | 1/2" |
| 32180 (32-180) |
3/4" | 3/4" |
| 32185 (32-185) |
1" | 3/4" |
| 32181 (32-181) |
1" | 1" |
