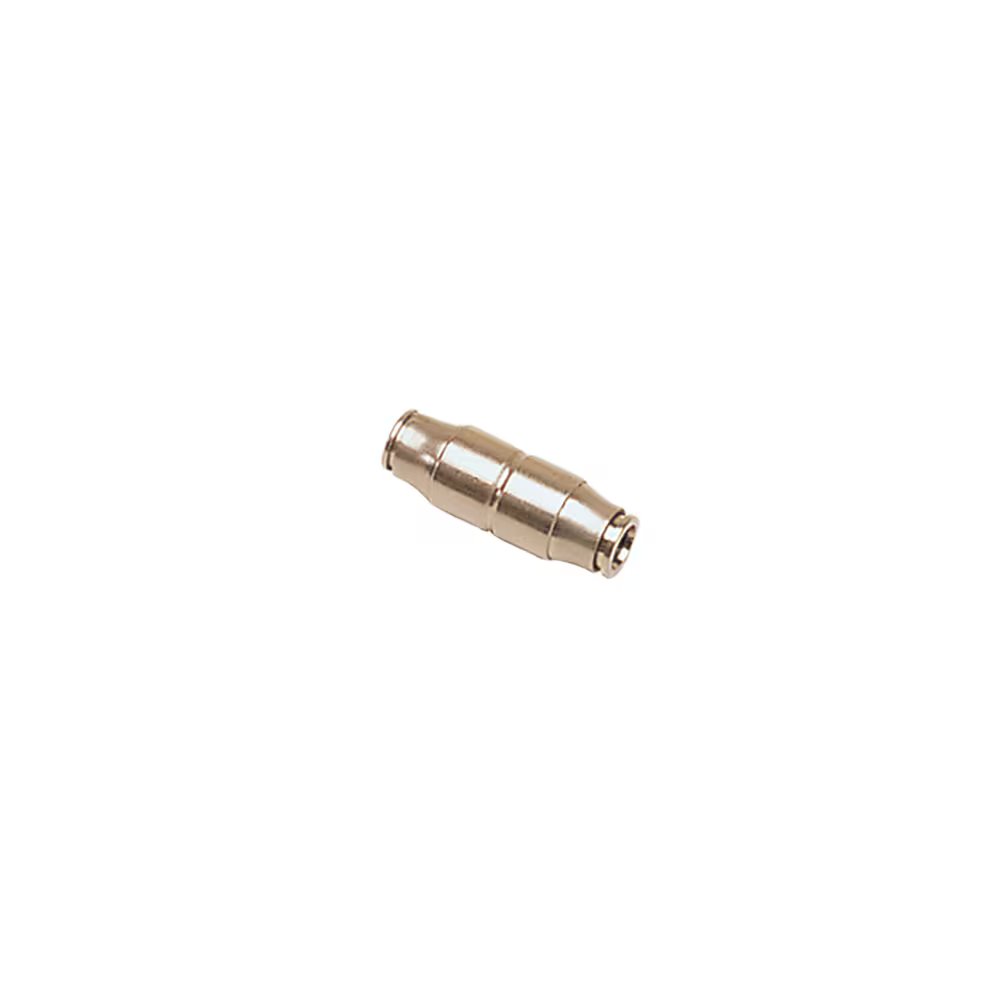

3206 03 00 by Parker | Legris Tube Connector | 3 mm Tube Size | 17 mm Length | Straight | Nickel-Plated Brass | Pack of 10

3206 03 00 by Parker | Legris Tube Connector | 3 mm Tube Size | 17 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$107.42

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3206 Equal Tube/Tube Connector

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $100.97
30–59 $91.31
60+ $80.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3206 Series
Shape:

Straight

Ends Configuration:
  • 3mm Push-to-Connect
  • 3mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -15°C to +80°C
  • Tightening Torque (daN.m): 0.01 to .1
Advantages:
  • Optimization of equipment: weight, small dimensions
  • Nickel-plated brass components for better impact and corrosion resistance
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • ATEX (please consult us)
  • REACH
Component Materials:
  • Body: Chemical nickel-plated brass
  • Adaptor: Chemical nickel-plated brass
  • Protection ring: Electroless nickel-plated brass
  • Collet: Chemical nickel-plated brass
  • Seal: PTFE
  • O-Ring: NBR
Part Number ØD G L Kg
3206 03 00 3 mm 6 mm 17 mm .002 Kg
