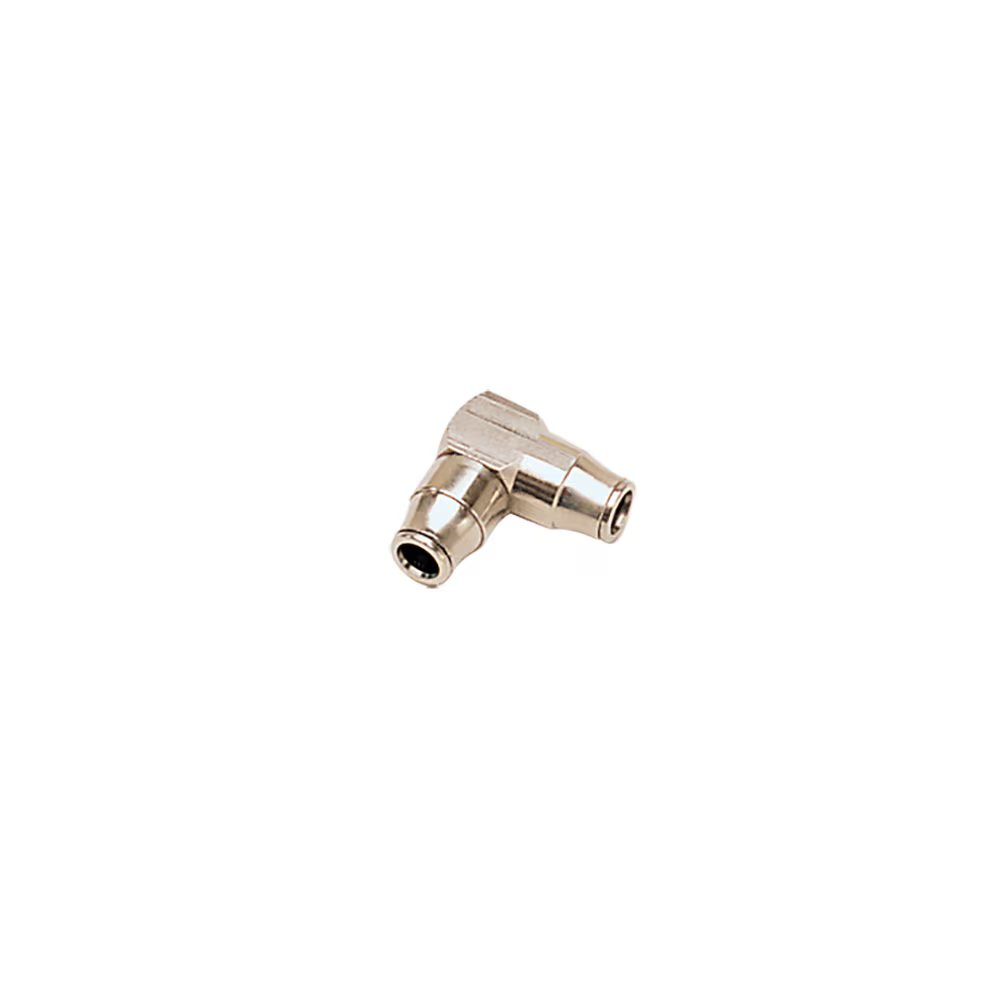

3202 03 00 by Parker | Legris Tube Connector | 3 mm Tube Size | 13.5 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

3202 03 00 by Parker | Legris Tube Connector | 3 mm Tube Size | 13.5 mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Sale price$156.06

by Parker Hannifin
LF 3200® Push-In Fittings (3 mm):3202 Equal Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $146.70
30–59 $132.65
60+ $117.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3202 Series
Shape:

90° Elbow

Ends Configuration:
  • 3mm Push-to-Connect
  • 3mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -15°C to +80°C
  • Tightening Torque (daN.m): 0.01 to .1
Advantages:
  • Optimization of equipment: weight, small dimensions
  • Nickel-plated brass components for better impact and corrosion resistance
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • ATEX (please consult us)
  • REACH
Component Materials:
  • Body: Chemical nickel-plated brass
  • Adaptor: Chemical nickel-plated brass
  • Protection ring: Electroless nickel-plated brass
  • Collet: Chemical nickel-plated brass
  • Seal: PTFE
  • O-Ring: NBR
Part Number ØD G J L Kg
3202 03 00 3 mm 6 mm 6 mm 13.5 mm .003 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
