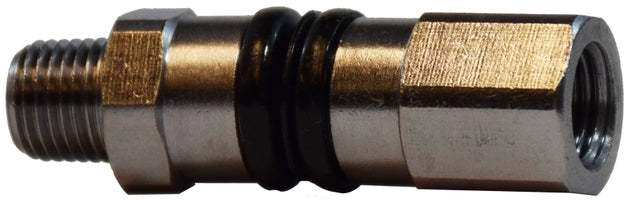

320061 by Midland | 360° Turning Swivel | 1/4" Female NPTF x 1/4" Male NPTF | Brass
Midland Industries
Brass Fitting - Pipe Thread - 360° Turning Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.25 |
| 40–79 | $14.70 |
| 80+ | $12.97 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |
|---|---|
| 344R | 3183 |
| Part Number | Size |
|---|---|
| 320061 (320-061) |
1/4" |
