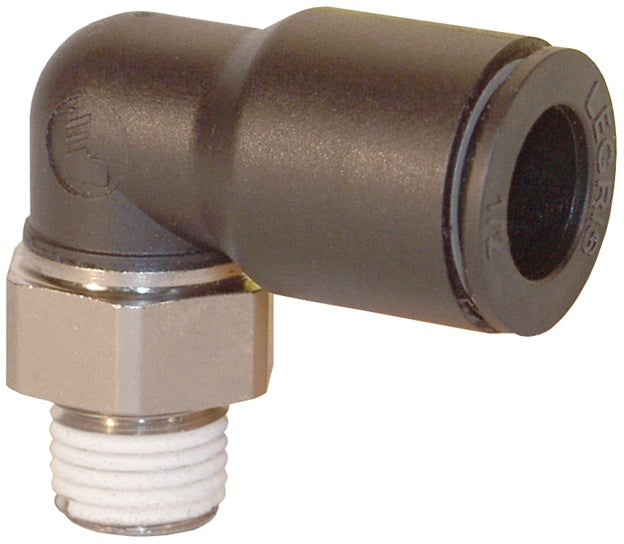

31990410 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 4mm Tube OD x 1/8" Male BSPP | Nylon / Nickel Plated Brass

31990410 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 4mm Tube OD x 1/8" Male BSPP | Nylon / Nickel Plated Brass

Sale price$11.88

Dixon Valve & Coupling
Metric Push-In Fitting | Male Connector | 90° Elbow | Tube End x Male BSPP

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
Buy More, Save More!
Quantity Price Each
10–39 $11.17
40–79 $10.10
80+ $8.91
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 4mm Push-to-Connect
  • M5 Male Thread
Material(s):
  • Nickel-Plated Brass
  • Nylon
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • The body is orientable for positioning purposes.
Construction:
  • Black glass-filled nylon body
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone free
  • Nitrile Rubber D-seal
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
  • Temperature Range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
  • Pressure Rating: 290 PSI at 70°F (21°C)
Part Number Tube O.D. Male Thread
31990419 4mm M5
31990410 4mm 1/8 BSPP
31990619 6mm M5
31990610 6mm 1/8 BSPP
31990613 6mm 1/4 BSPP
31990810 8mm 1/8 BSPP
31990813 8mm 1/4 BSPP
31991013 10mm 1/4 BSPP
