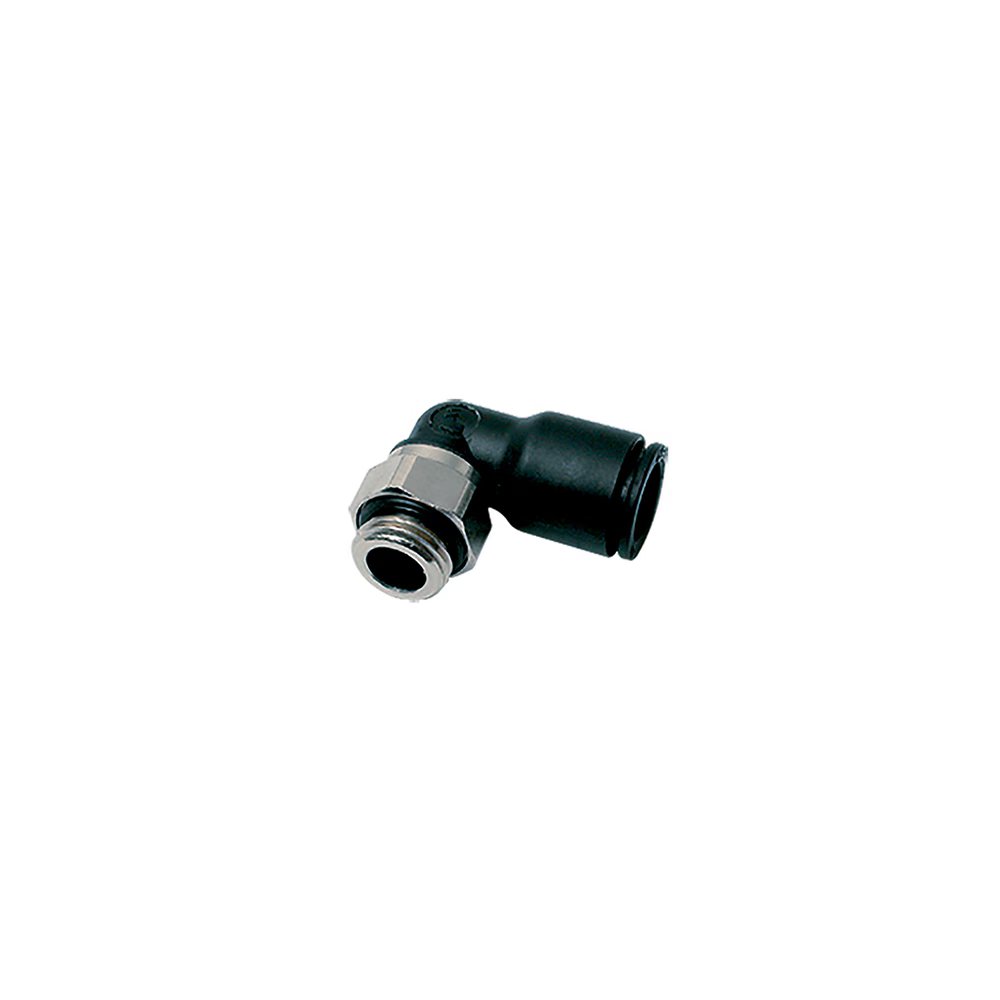

3199 08 67 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x M12x1.5 Male Swivel M12 Thread | 15 mm Hex | 90° Elbow | Polymer | Pack of 10
Parker Fluid Connections Division

3199 08 67 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x M12x1.5 Male Swivel M12 Thread | 15 mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$117.75

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3199 Stud Elbow, Male BSPP and Metric Thread

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3199 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L Kg
3199 03 09* 3 mm M3x0.5 2.5 mm 8 mm 8.5 mm 15 mm 13 mm .003 Kg
3199 03 19 3 mm M5x0.8 2.5 mm 8 mm 8.5 mm 13.5 mm 13 mm .003 Kg
3199 04 09* 4 mm M3x0.5 2.5 mm 8 mm 8.5 mm 15 mm 15 mm .003 Kg
3199 04 19 4 mm M5x0.8 3 mm 8 mm 8.5 mm 13.5 mm 15 mm .002 Kg
3199 04 55 3 mm M7x1 4.5 mm 10 mm 8.5 mm 15 mm 14 mm .005 Kg
3199 04 10 4 mm 1/8" 4.5 mm 13 mm 8.5 mm 13 mm 15 mm .006 Kg
3199 04 13 4 mm 1/4" 5.5 mm 16 mm 8.5 mm 13 mm 15 mm .011 Kg
3199 06 19 6 mm M5x0.8 3 mm 8 mm 10.5 mm 15.5 mm 17 mm .003 Kg
3199 06 55 6 mm M7x1 4.5 mm 10 mm 10.5 mm 17.5 mm 17 mm .006 Kg
3199 06 60 3 mm M10x1 4.5 mm 13 mm 10.5 mm 15 mm 14 mm .006 Kg
3199 06 67 6 mm M12x1.5 5.5 mm 15 mm 10.5 mm 17 mm 17 mm .009 Kg
3199 06 10 6 mm 1/8" 4.5 mm 13 mm 10.5 mm 15 mm 17 mm .006 Kg
3199 06 13 6 mm 1/4" 5.5 mm 16 mm 10.5 mm 15 mm 17 mm .011 Kg
3199 06 17 6 mm 3/8" 5.5 mm 20 mm 10.5 mm 16 mm 17 mm .022 Kg
3199 06 21 6 mm 1/2" 7 mm 24 mm 10.5 mm 16 mm 17 mm .027 Kg
3199 08 60 8 mm M10x1 4.5 mm 13 mm 13.5 mm 20.5 mm 23 mm .009 Kg
3199 08 67 8 mm M12x1.5 5.5 mm 15 mm 13.5 mm 18.5 mm 23 mm .009 Kg
3199 08 10 8 mm 1/8" 4.5 mm 13 mm 13.5 mm 20.5 mm 23 mm .009 Kg
3199 08 13 8 mm 1/4" 5.5 mm 16 mm 13.5 mm 18.5 mm 23 mm .012 Kg
3199 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 18.5 mm 23 mm .017 Kg
3199 08 21 8 mm 1/2" 7 mm 24 mm 13.5 mm 19 mm 23 mm .027 Kg
3199 10 13 10 mm 1/4" 5.5 mm 16 mm 16 mm 23.5 mm 26.5 mm .014 Kg
3199 10 17 10 mm 3/8" 5.5 mm 20 mm 16 mm 22 mm 26.5 mm .017 Kg
3199 10 21 10 mm 1/2" 7 mm 24 mm 16 mm 22 mm 26.5 mm .026 Kg
3199 12 13 10 mm 1/4" 5.5 mm 16 mm 19 mm 26.5 mm 31 mm .016 Kg
3199 12 17 12 mm 3/8" 5.5 mm 20 mm 19 mm 25 mm 31 mm .019 Kg
3199 12 21 12 mm 1/2" 7 mm 24 mm 19 mm 25 mm 31 mm .029 Kg
3199 14 17 14 mm 3/8" 5.5 mm 20 mm 22 mm 32.5 mm 35.5 mm .029 Kg
3199 14 21 14 mm 1/2" 7 mm 24 mm 22 mm 27 mm 35.5 mm .028 Kg
3199 16 17 16 mm 3/8" 7.5 mm 27 mm 27 mm 54.5 mm 39 mm .101 Kg
3199 16 21 16 mm 1/2" 9 mm 27 mm 27 mm 54.5 mm 39 mm .097 Kg

The body swivels for positioning purposes.

*Bi-material seal
