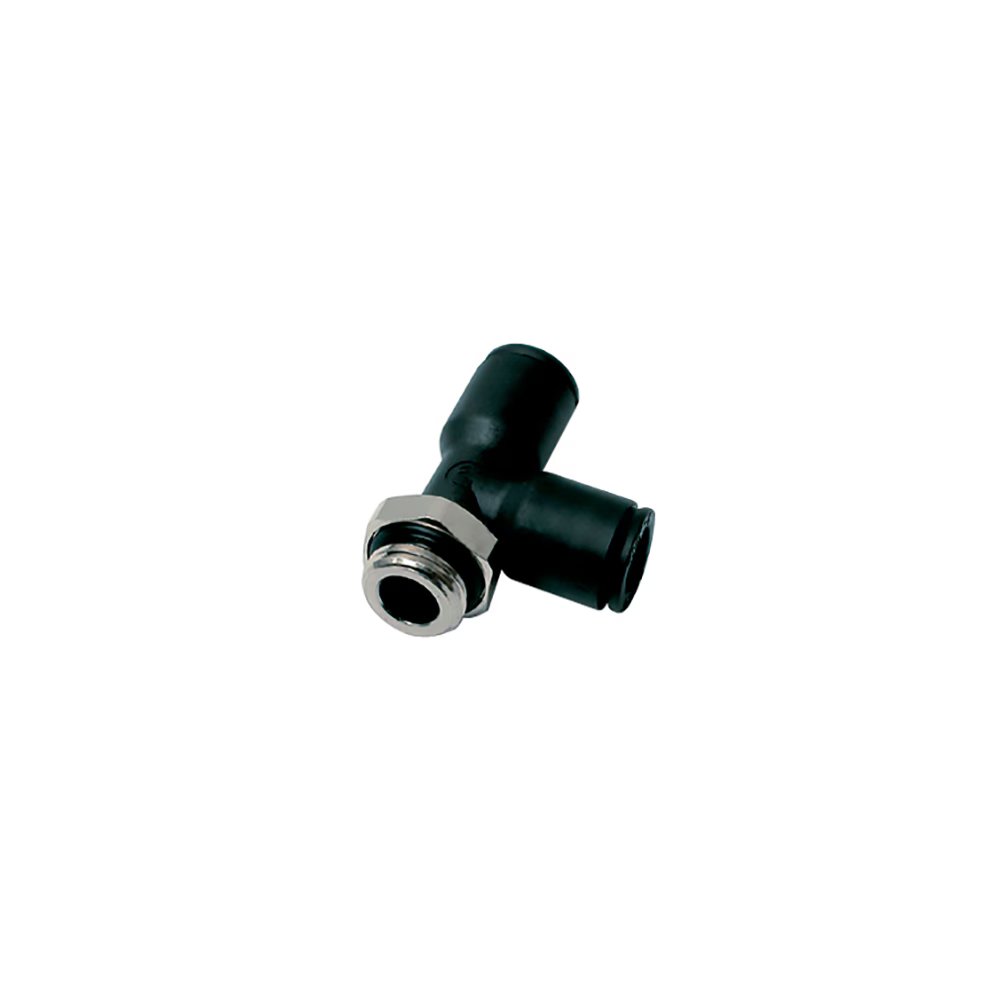

3193 12 21 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 1/2" Male Swivel BSPP Thread | 24 mm Hex | Tee | Polymer | Pack of 10

3193 12 21 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 1/2" Male Swivel BSPP Thread | 24 mm Hex | Tee | Polymer | Pack of 10

Sale price$223.73

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3193 Stud Run Tee, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $210.31
20–59 $190.17
60+ $167.80
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3193 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H H1 L Kg
3193 04 19 4 mm M5x0.8 3.5 mm 8 mm 8.5 mm 26 mm 11.5 mm 14.5 mm .003 Kg
3193 04 10 4 mm 1/8" 5 mm 13 mm 8.5 mm 23 mm 8.5 mm 14.5 mm .006 Kg
3193 04 13 4 mm 1/4" 5.5 mm 16 mm 8.5 mm 23 mm 8.5 mm 14.5 mm .011 Kg
3193 06 19 6 mm M5x0.8 3.5 mm 8 mm 10.5 mm 29.5 mm 12.5 mm 17.5 mm .004 Kg
3193 06 10 6 mm 1/8" 5 mm 13 mm 10.5 mm 27 mm 10 mm 17.5 mm .007 Kg
3193 06 13 6 mm 1/4" 5.5 mm 16 mm 10.5 mm 27 mm 10 mm 17.5 mm .012 Kg
3193 08 10 8 mm 1/8" 4.5 mm 13 mm 13.5 mm 36.5 mm 14 mm 23 mm .011 Kg
3193 08 13 8 mm 1/4" 5.5 mm 16 mm 13.5 mm 34.5 mm 12 mm 23 mm .014 Kg
3193 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 34.5 mm 12 mm 23 mm .019 Kg
3193 10 13 10 mm 1/4" 5.5 mm 16 mm 16 mm 42 mm 15.5 mm 26.5 mm .017 Kg
3193 10 17 10 mm 3/8" 5.5 mm 20 mm 16 mm 40.5 mm 14 mm 14 mm .020 Kg
3193 10 21 10 mm 1/2" 7 mm 24 mm 16 mm 40.5 mm 14 mm 26.5 mm .029 Kg
3193 12 13 12 mm 1/4" 5.5 mm 16 mm 19 mm 48 mm 17 mm 31 mm .021 Kg
3193 12 17 12 mm 1/8" 5.5 mm 20 mm 19 mm 46.5 mm 15.5 mm 31 mm .024 Kg
3193 12 21 12 mm 1/2" 7 mm 24 mm 19 mm 46.5 mm 15.5 mm 31 mm .033 Kg
3193 14 17 14 mm 3/8" 5.5 mm 20 mm 22 mm 56.5 mm 21.5 mm 35.5 mm .036 Kg
3193 14 21 14 mm 1/2" 7 mm 24 mm 22 mm 51 mm 16 mm 35.5 mm .036 Kg
3193 16 17 16 mm 3/8" 7.5 mm 27 mm 27 mm 79.5 mm 41 mm 38.5 mm .121 Kg
3193 16 21 16 mm 1/2" 9 mm 27 mm 27 mm 79.5 mm 41 mm 38.5 mm .117 Kg

The body swivels for positioning purposes.
