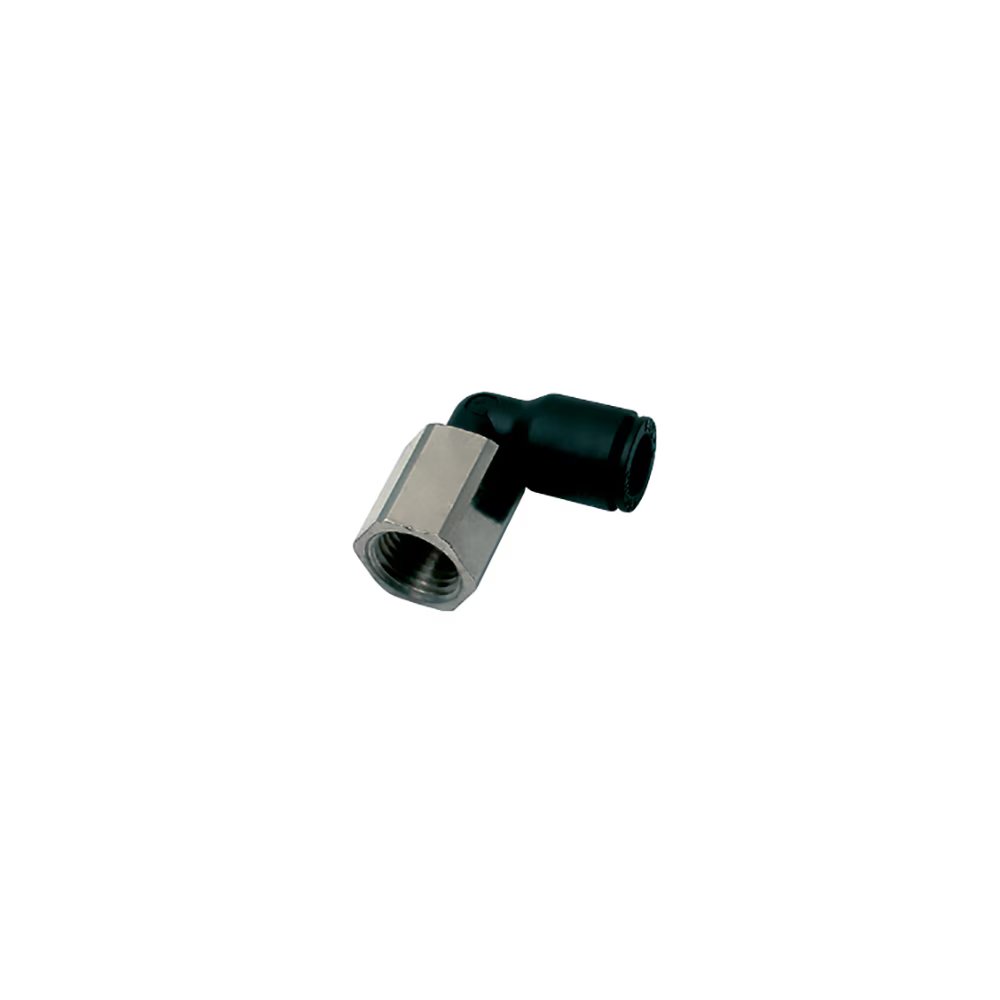

3192 08 17 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x 3/8" Male Swivel BSPP Thread | 19 mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3192 Stud Elbow, Female BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $70.93 |
| 20–59 | $64.14 |
| 60+ | $56.60 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | G | H | L | Kg |
| 3192 04 10 | 4 mm | 1/8" | 8.5 mm | 13 mm | 8.5 mm | 23 mm | 14 mm | .010 Kg |
| 3192 04 13 | 4 mm | 1/4" | 11.5 mm | 16 mm | 8.5 mm | 27 mm | 14 mm | .016 Kg |
| 3192 06 10 | 6 mm | 1/8" | 8.5 mm | 13 mm | 10.5 mm | 25 mm | 16 mm | .010 Kg |
| 3192 06 13 | 6 mm | 1/4" | 11.5 mm | 16 mm | 10.5 mm | 29 mm | 16 mm | .017 Kg |
| 3192 08 10 | 8 mm | 1/8" | 8.5 mm | 13 mm | 13.5 mm | 28 mm | 23 mm | .012 Kg |
| 3192 08 13 | 8 mm | 1/4" | 11.5 mm | 16 mm | 13.5 mm | 32 mm | 23 mm | .020 Kg |
| 3192 08 17 | 8 mm | 3/8" | 12 mm | 19 mm | 13.5 mm | 33 mm | 23 mm | .026 Kg |
| 3192 10 13 | 10 mm | 1/4" | 11 mm | 16 mm | 16 mm | 34.5 mm | 26.5 mm | .020 Kg |
| 3192 10 17 | 10 mm | 3/8" | 12 mm | 19 mm | 16 mm | 35 mm | 26.5 mm | .025 Kg |
| 3192 10 21 | 10 mm | 1/2" | 16 mm | 24 mm | 16 mm | 41 mm | 26.5 mm | .048 Kg |
| 3192 12 13 | 12 mm | 1/4" | 11 mm | 16 mm | 19 mm | 38 mm | 30.5 mm | .022 Kg |
| 3192 12 17 | 12 mm | 3/8" | 12 mm | 19 mm | 19 mm | 38.5 mm | 30.5 mm | .027 Kg |
| 3192 12 21 | 12 mm | 1/2" | 16 mm | 24 mm | 19 mm | 43.5 mm | 30.5 mm | .050 Kg |
The body swivels for positioning purposes.
