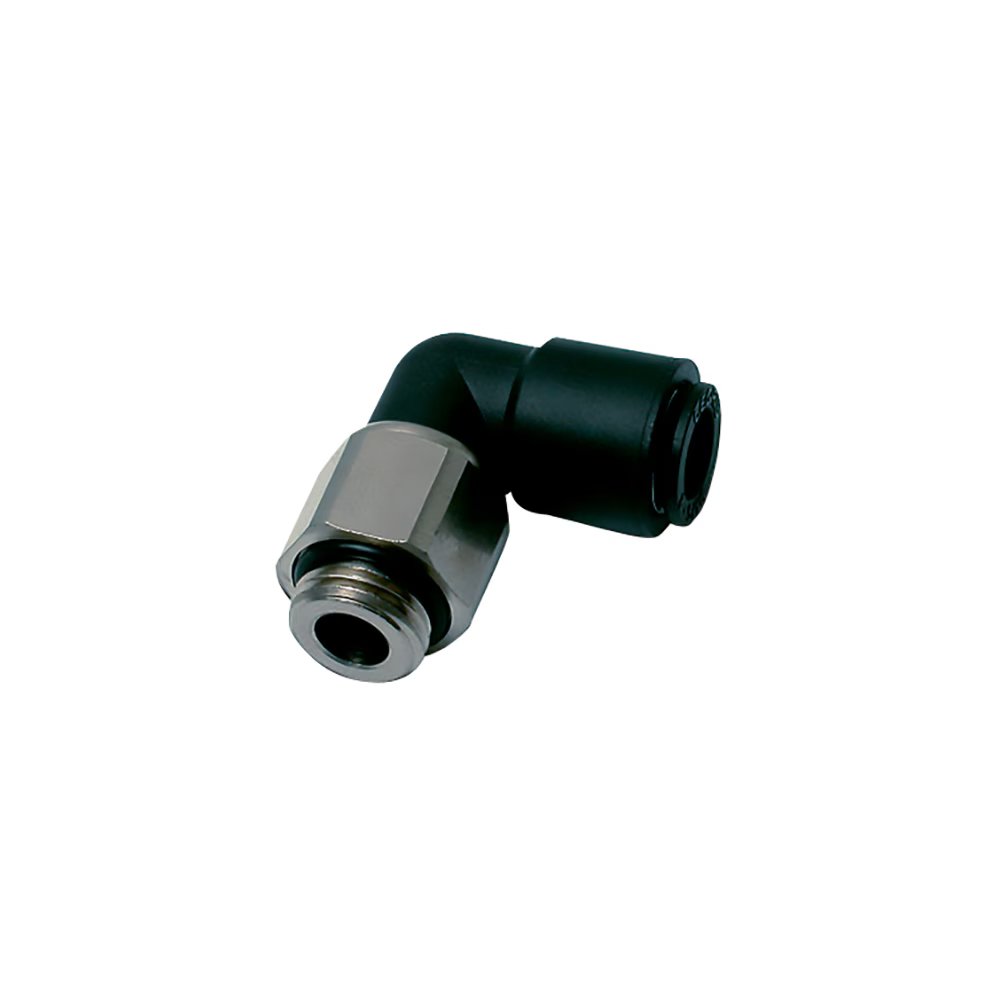

3189 12 17 by Parker | Legris Oscillating Fitting | 12 mm Tube Size x 3/8" Male BSPP Thread | 21 mm Hex | 90° Elbow | Polymer | Pack of 5

3189 12 17 by Parker | Legris Oscillating Fitting | 12 mm Tube Size x 3/8" Male BSPP Thread | 21 mm Hex | 90° Elbow | Polymer | Pack of 5

Sale price$272.95

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3189 Oscillating Elbow, Male BSPP and Metric Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $256.57
15–29 $232.01
30+ $204.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3189 Series
Shape:

90° Elbow

Ends Configuration:
  • 12mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting)
  • Working Temperature: -20°C to +80°C
Advantages:
  • Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Prevents incorrect assembly
  • Oscillating Fittings
  • Fitting swivels when cylinder is in movement : no bending of the tube
  • High durability fitting/tube assembly
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Self-sealing fitting: nickel-plated brass
    Oscillating fitting: Technical Polymer
  • Adaptor: Nickel-Plated Brass
  • Anti-friction bearings
  • LF 3000® Components
Part Number ØD C E F G H L Kg
3189 04 19 4 mm M5x0.8 3 mm 12 mm 11 mm 24.5 mm 17.5 mm .012 mm
3189 04 10 4 mm 1/8" 5 mm 13 mm 11 mm 23 mm 17.5 mm .014 mm
3189 06 19 6 mm M5x0.8 3 mm 12 mm 14 mm 27.5 mm 20.5 mm .017 mm
3189 06 10 6 mm 1/8" 5 mm 14 mm 14 mm 27 mm 20.5 mm .019 mm
3189 06 13 6 mm 1/4" 5.5 mm 16 mm 14 mm 25.5 mm 20.5 mm .023 mm
3189 08 10 8 mm 1/8" 5 mm 17 mm 16 mm 33.5 mm 23.5 mm .034 mm
3189 08 13 8 mm 1/4" 5.5 mm 17 mm 16 mm 31 mm 23.5 mm .032 mm
3189 08 17 8 mm 3/8" 5.5 mm 20 mm 16 mm 29.5 mm 23.5 mm .039 mm
3189 10 13 10 mm 1/4" 5.5 mm 19 mm 19.5 mm 39 mm 29 mm .053 mm
3189 10 17 10 mm 3/8" 5.5 mm 20 mm 19.5 mm 37 mm 29 mm .051 mm
3189 12 13 12 mm 1/4" 5.5 mm 21 mm 22 mm 46.5 mm 33.5 mm .073 mm
3189 12 17 12 mm 3/8" 5.5 mm 21 mm 22 mm 45.5 mm 33.5 mm .071 mm
