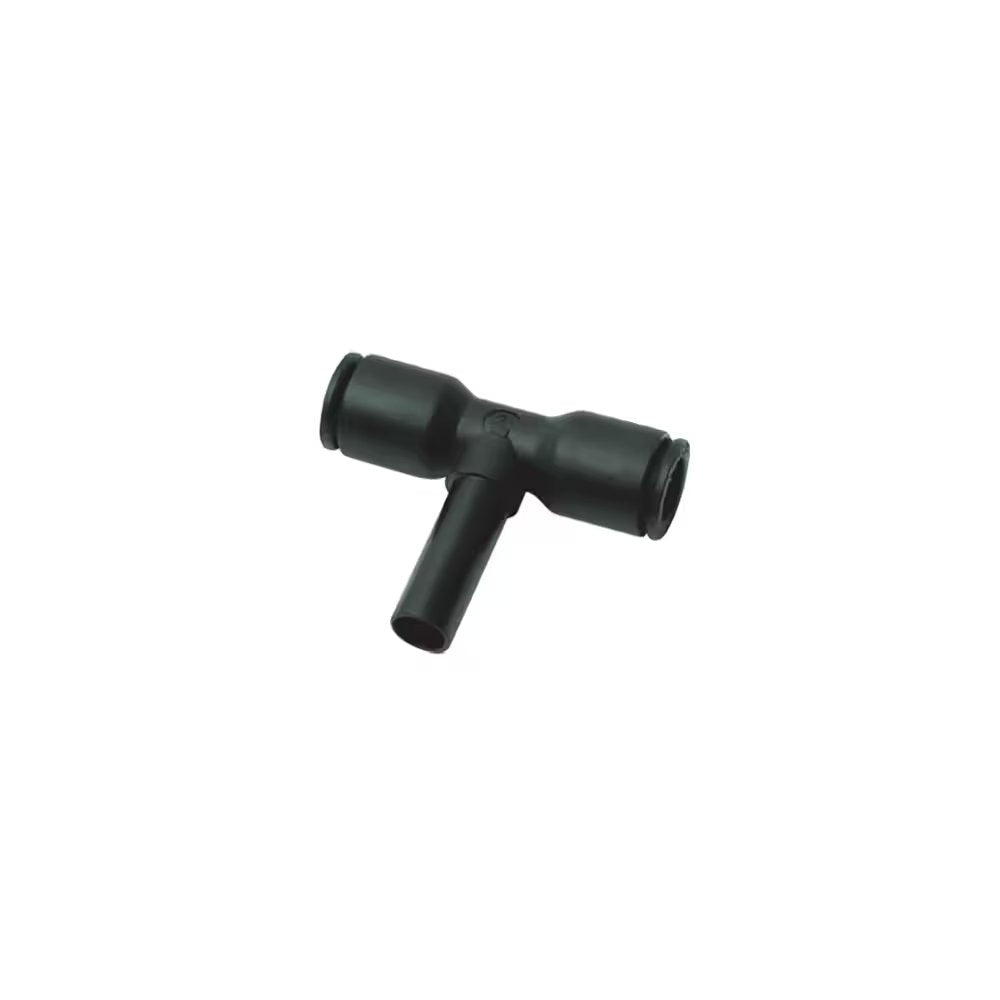

3188 04 00 by Parker | Legris Plug-In Fittings | 4mm Push-to-Connect x 4mm Tube Stem | 29mm Length | Tee | Polymer | Pack of 10

3188 04 00 by Parker | Legris Plug-In Fittings | 4mm Push-to-Connect x 4mm Tube Stem | 29mm Length | Tee | Polymer | Pack of 10

Sale price$44.14

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3188 Equal and Unequal Plug-In Branch Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $41.49
40–79 $37.52
80+ $33.11
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3188 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G H H1 H2 L/2 Kg
3188 04 00 4 mm 4 mm 8.5 mm 25 mm 8 mm 15.5 mm 14.5 mm .001 Kg
3188 04 06 4 mm 6 mm 10.5 mm 28.5 mm 9 mm 17 mm 16 mm .007 Kg
3188 06 00 6 mm 6 mm 10.5 mm 28.5 mm 9 mm 17 mm 16 mm .002 Kg
3188 06 08 6 mm 8 mm 13.5 mm 36.5 mm 11 mm 21.5 mm 22 mm .014 Kg
3188 08 00 8 mm 8 mm 13.5 mm 36.5 mm 11 mm 21.5 mm 23 mm .004 Kg
3188 08 10 8 mm 10 mm 16 mm 41 mm 12.5 mm 24.5 mm 26.5 mm .018 Kg
3188 10 00 10 mm 10 mm 16 mm 41 mm 12.5 mm 24.5 mm 26.5 mm .007 Kg
3188 10 12 10 mm 12 mm 19 mm 46.5 mm 12.5 mm 27.5 mm 31 mm .030 Kg
3188 12 00 12 mm 12 mm 19 mm 46.5 mm 12.5 mm 27.5 mm 31 mm .012 Kg
